Quick Details
-
Material:
-
paper box, PP
-
Weight:
-
7KG
-
Weight (KG):
-
7 kg
-
Product name:
-
High Flow Filter Cartridge
-
Function:
-
Water Purification Plant
-
Dia:
-
2.5/4.5''
-
Length:
-
20/30/40/50/60''
-
Filter rate:
-
0.1-100um
-
Filter Media:
-
Cartridge
Quick Details
-
Core Components:
-
pleated cartridge
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Ewater
-
Material:
-
paper box, PP
-
Weight:
-
7KG
-
Weight (KG):
-
7 kg
-
Product name:
-
High Flow Filter Cartridge
-
Function:
-
Water Purification Plant
-
Dia:
-
2.5/4.5''
-
Length:
-
20/30/40/50/60''
-
Filter rate:
-
0.1-100um
-
Filter Media:
-
Cartridge
Product Description

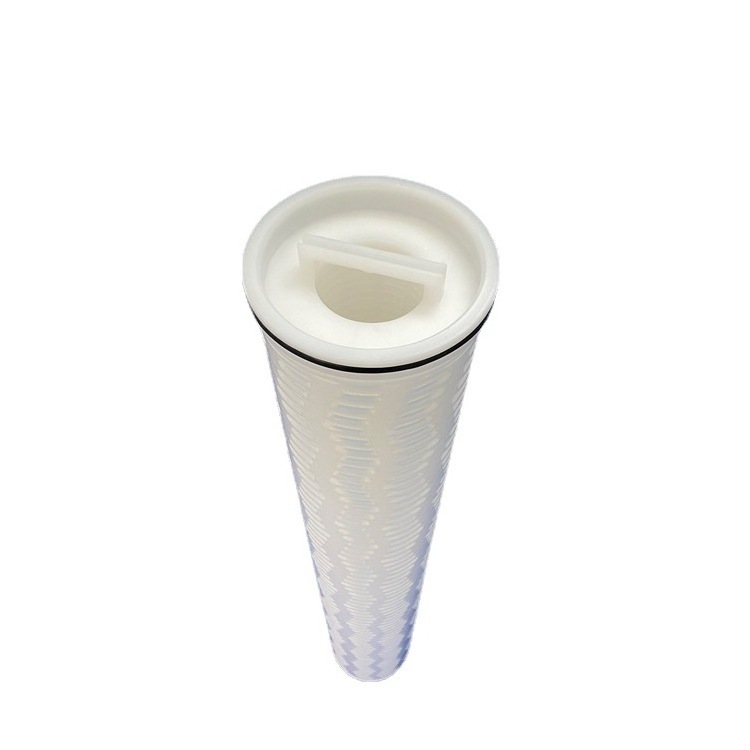

High Flow filter Cartridges
High Flow filter Cartridges are made from depth fine PP or GF non-woven fabrics.The filter has a big diameter of 6.3land 6.5inch/160 and 165mm and no inner core, single open, the inside to outside flow pattern ensure that all the particles will be intercepted at the inside of the filter. Also can do with inner core and outside to inside flow pattern ensure that all the
particles willl be intercepted at the outside of the filter.The long service life and high flow rate result in low investment and
less manpower in many applications.
High filtration area, high flow rate with depth fine non-woven fabrics and scientific design, the filter has a good structure
which has high dirt holding capacity, and result in long service life.100% PP material makes the filter cartridge got excellent chemical compatibility. It is suitable for various liquid filtration.
|
Dimension |
[Removal Rating]:0.5um,1um,3um,5um,10um,20um,50um,75um,100um
|
|
|
[Length]:20"(508mm),30"(762mm),40"(1016mm),50"(1270mm),60"(1524mm)
|
|
|
[OD]: 160mm /165mm
|
|
Material of Constructions |
[Media]:Polypropylene(PP)/Glass Fiber
|
|
|
[Drain layer]:China Non-Woven Fabric
|
|
|
[End cap]:Polypropylene(PP)
|
|
|
[Gasket]:Silicone,EPDM,NBR,Viton
|
|
|
[Core]:Polypropylene(PP)
|
|
Performance |
[Max.Operating temperature]: 80ºC
|
|
|
[Max.Operating DP]:4.0Bar@21ºC,2.4Bar@: 80ºC
|
