Quick Details
-
Air Consumption:
-
7-8m3/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZS
-
Voltage:
-
380V
-
Power:
-
5.5 KW
-
Dimension(L*W*H):
-
1280*700*1280mm
-
Weight:
-
700 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Certification:
-
ISO9001
Quick Details
-
Max. Conveying Distance:
-
200m
-
Max Aggregate Size:
-
15mm
-
Hose Inner Diameter:
-
51 mm
-
Air Consumption:
-
7-8m3/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZS
-
Voltage:
-
380V
-
Power:
-
5.5 KW
-
Dimension(L*W*H):
-
1280*700*1280mm
-
Weight:
-
700 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Certification:
-
ISO9001

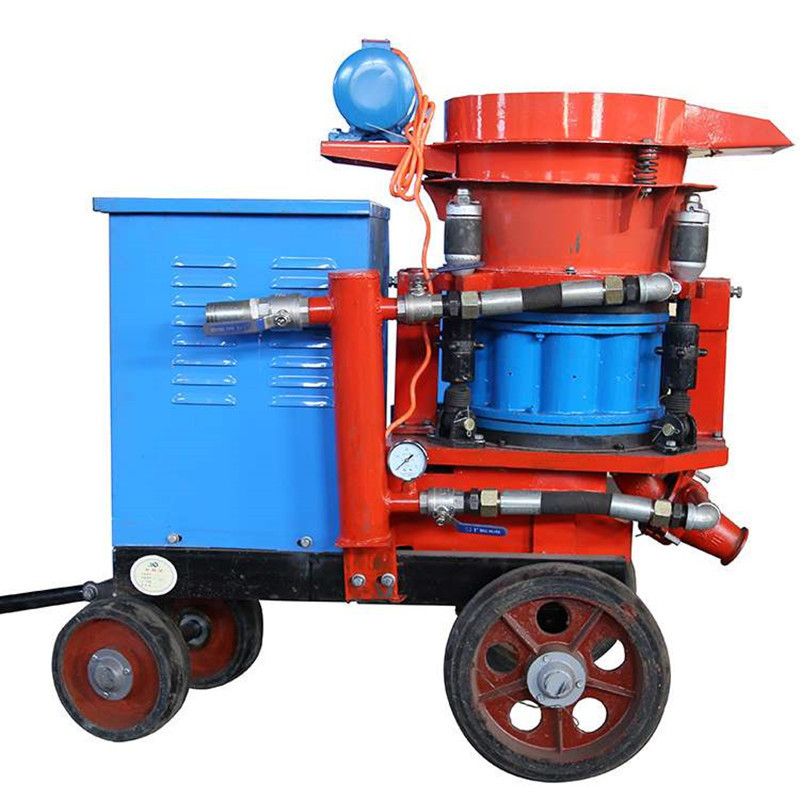

Best selling dry shotcrete machine PZ-5
Product Introduction
Shotcrete machine is widely used in engineering and construction, mining, tunnel, culvert, subway, hydropower engineering, underground engineering and high marsh coal mine tunnel shotcrete construction operations.
Shotcrete Machine Feature
1.Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3.Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
Technology Parameters
|
Model |
PZ-3 |
PZ-5 |
PZ-6 |
PZ-7 |
|
Production capacity |
3m3/h |
5m3/h |
6m3/h |
7m3/h |
|
The maximum transmission distance |
200m |
200m |
200m |
200m |
|
Applicable material proportioning: cement/sand |
1:3-5 |
1:3-5 |
1:3-5 |
1:3-5 |
|
Applicable materials water-cement ratio |
<0.4 |
<0.4 |
<0.4 |
<0.4 |
|
The biggest bone size |
10mm |
15mm |
15mm |
20mm |
|
Transporting pipe inner |
42 |
51 |
51 |
51/64 |
|
Rotor block diameter |
350mm |
438mm |
438mm |
480mm |
|
Working pressure |
0.2-0.6MPa |
0.2-0.6MPa |
0.2-0.6MPa |
0.2-0.6MPa |
|
blast consumption |
5-6m3/h |
7-8m3/h |
9-10m3/h |
|
|
motor power |
4KW |
5.5KW |
5.5KW |
7.5KW |
|
The weight |
400Kg |
700Kg |
700Kg |
800Kg |
