Quick Details
-
Color:
-
Customizable
-
Size:
-
Customizable
-
Delivery Period:
-
Negotiate
Quick Details
-
Place of Origin:
-
Hebei, China
-
Dimension(L*W*H):
-
6830*4037*6325 mm
-
Weight:
-
32668 KG
-
Color:
-
Customizable
-
Size:
-
Customizable
-
Delivery Period:
-
Negotiate
Why Choose Us
Products Description
Coal washing machine
SKT type - sieve CNC pneumatic air valve
The numerical control air valve jig machine is used in the separation of raw coal of 0~50mm and 0~100mm. It is a new generation of our company and scientific and technological units, based on the summary of years of experience in the use of the jig machine, absorbing the latest technical achievements of the jig machine. product. It is a mechanical device that realizes material stratification according to specific gravity by means of alternating upper and lower pulsating water flow in the jigging chamber. The frequency and amplitude of the water pulsation are realized by the opening and closing of the numerical control air valve. Since the numerical control air valve can complete the stepless adjustment of the intake and exhaust air volume and frequency without stopping, it can adapt to the sorting requirements of various types and quality of raw coal, and obtain the best operating conditions. The action of the air valve is controlled by a special numerical control device, and its working system (intake period, expansion period, compression period) can be adjusted very conveniently. This is a traditional reciprocating slide valve, and the rotary air valve cannot be compared with it. It is also impossible. It has good sorting effect and high degree of automation, and is an ideal platform sorting equipment.
|
Project
Model |
入选物料
Selected materials |
入选粒度/mm
Selection granularity |
处理能力t/h
Processing power |
外形尺寸mm
Dimensions L*W*H |
机器重量kg
Machine weight |
跳汰面积m²
Jigging area |
|
SKT-8
|
原煤
Raw coal |
0-100
|
80-120
|
6649*2953*6535
|
25320
|
8
|
|
SKT-12
|
Raw coal
|
0-100
|
120-140
|
6830*4037*6325
|
32668
|
12
|
|
SKT-14
|
Raw coal
|
0-100
|
140-280
|
6845*4454*6657
|
39564
|
14
|
|
SKT-16
|
Raw coal
|
0-100
|
160-280
|
6845*4638*5922
|
39860
|
16
|
|
SKLTX-14
|
Raw coal
|
0-100
|
150-260
|
6909*4850*6340
|
31113
|
14
|
|
LTG-15B
|
Raw coal
|
0-50
|
150-260
|
7296*5482*7330
|
44697
|
15
|
|
LTG-15D
|
Raw coal
|
0-50
|
150-260
|
7296*5482*6750
|
44697
|
15
|

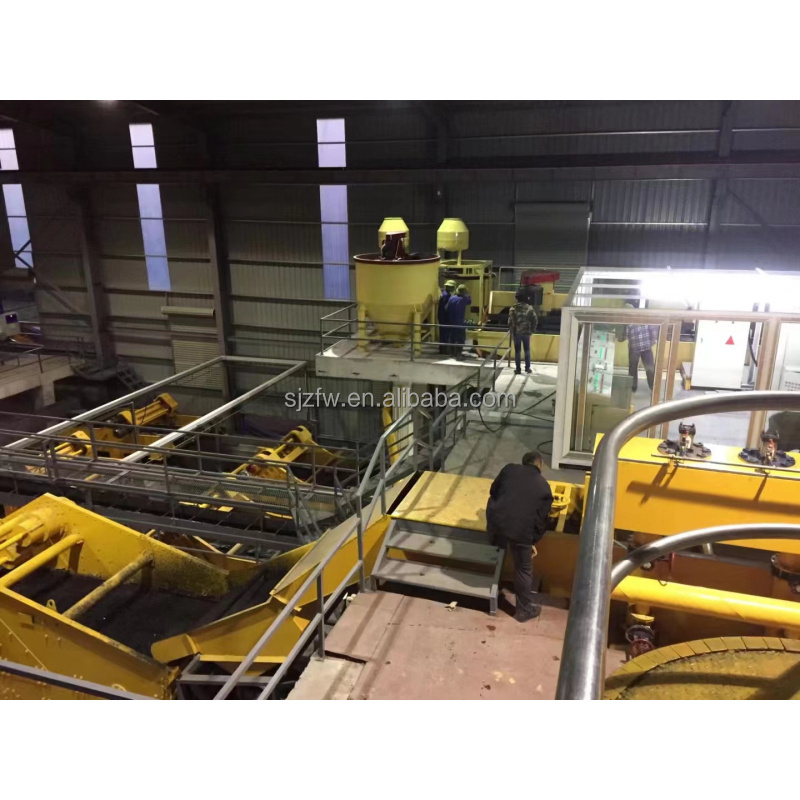

product display
