Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2200mm*2900mm*1700mm
-
Weight:
-
4486 KG
-
Product name:
-
Copper Dissolved Equipment Flotation Beneficiation Plant
-
Processing ablity(m3/min):
-
5.0-10
-
Motor power(kw):
-
30
-
Spindle speed(r/min):
-
191
-
Scraper speed(r/min):
-
25
-
Scraper power(kw):
-
1.5
-
Brand name:
-
Zhongke
-
Color:
-
as you request
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhongke
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2200mm*2900mm*1700mm
-
Weight:
-
4486 KG
-
Product name:
-
Copper Dissolved Equipment Flotation Beneficiation Plant
-
Processing ablity(m3/min):
-
5.0-10
-
Motor power(kw):
-
30
-
Spindle speed(r/min):
-
191
-
Scraper speed(r/min):
-
25
-
Scraper power(kw):
-
1.5
-
Brand name:
-
Zhongke
-
Color:
-
as you request
product description
1) Introduction of flotation beneficiation plant
Flotation beneficiation is a sorting method based on different physical and chemical properties of the mineral particles.Flotation is widely used in fine-grained disseminated metallic minerals, nonmetallic minerals, chemicals and other mineral soring. Another important area which widely use flotation is to reduce ash and fine-grained pyritein the coal .
Process of flotation beneficiation
1. Ore crushing
2. The crushed material was sent to ball mill for grinding.
3. Classified . Granule with unsuitable size will be sent back to the ball mill , while suitable ones will be sent to the flotation system.
4.Some medicament agent will be added to separate target material from others.
5.After going through the flotation system , they will be concentrated and filter pressed, and then get the final products
6.The whole process is finished.
2) Advantages of Zhongke flotation benefication
1. zhongke had a strict and effective quality control system in manufacturing process.
2.zhongke flotation beneficiation equipment have been approved by ISO9001-2008&CE certification.
3.we not only supply the complete flotation beneficiation with favorable prices, but also the installation and maintenance service for the customers
4.we offer the service during the whole using-life of the equipment.
Flotation beneficiation plant

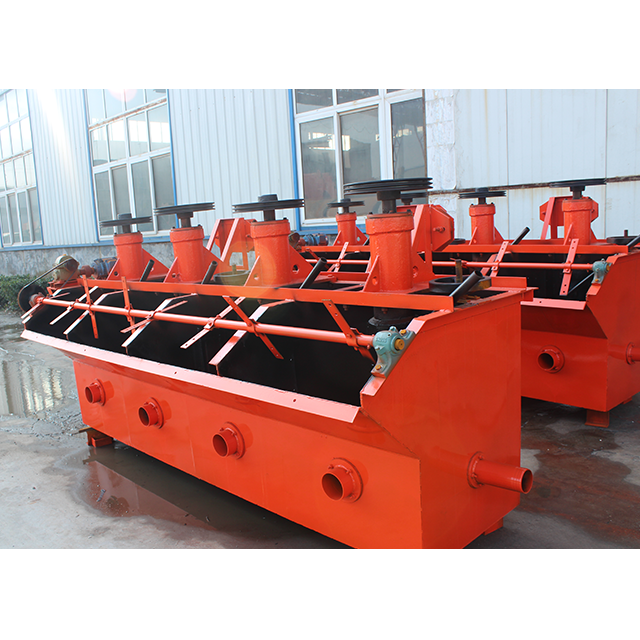

Flotation machine
Main technical parameters
|
Model
|
Effective
volume
(m³)
|
Processing
ability
(m³/min)
|
Motor
power
(kw)
|
Spindle
speed
(r/min)
|
Scraper.
speed
(r/min)
|
Scraper
power
(kw)
|
Trough
size (mm) |
Single slot
weight
(kg)
|
|
SF-0.37
|
0.37
|
0.2-0.4
|
1.5
|
352
|
25
|
1.1
|
700x700×750
|
468
|
|
SF-0.7
|
0.7
|
0.3-0.9
|
3
|
400
|
25
|
1.1
|
900×820×950
|
600
|
|
SF-1.2
|
1.2
|
0.6-1.6
|
5.5
|
330
|
25
|
1.1
|
1100×1100×1100
|
1873
|
|
SF-2.8
|
2.8
|
1.5-3.5
|
11
|
268
|
25
|
1.1
|
1750×1600×1150
|
2538
|
|
SF-4
|
4
|
2.0-4.0
|
15
|
220
|
25
|
1.5
|
1850×2050×1200
|
2838
|
|
SF-8
|
8
|
4.0-8.0
|
30
|
191
|
25
|
1.5
|
2200 x2900×1400
|
4129
|
|
SF-10
|
10
|
5.0-10
|
30
|
191
|
25
|
1.5
|
2200×2900 x1700
|
4486
|
|
SF-20
|
20
|
5.0-20
|
30×2
|
191
|
25
|
1.5×2
|
2850 x 3800×2000
|
9828
|
|
Model
|
Effective
volume
(m³)
|
Capacity
(m³/min) |
Rotate
speed (r/min) |
Impeller
dia. (mm) |
Motor
|
|
|
|
Single slot
weight (kg) |
|||
|
|
|
|
|
|
Model
|
|
Power(kw)
|
|
|
|||
|
|
|
|
|
|
Rotator
|
Scraper
|
Motor
forimpeller sotor |
Motor
for scraper |
|
|||
|
XJK-0.35(3A)
|
0.35
|
0.18-0.4
|
470
|
300
|
Y90L-4
|
Y90S-4
|
1.5
|
1.1
|
430
|
|||
|
XJK-0.62(4A)
|
0.62
|
0.3-0.9
|
400
|
350
|
Y100L2-4
|
Y90S-4
|
3
|
1.1
|
860
|
|||
|
XJK-1.1(5A)
|
1.1
|
0.6-1.6
|
330
|
500
|
Y132M2-6
|
Y90S-4
|
5.5
|
1.1
|
1380
|
|||
|
XJK-2.8(6A)
|
2.8
|
1.5-3.5
|
280
|
600
|
Y160L-6
|
Y90S-4
|
11
|
1.1
|
2330
|
|||
|
XJK-5.8(7A)
|
5.8
|
3-7
|
240
|
750
|
Y200L2-6
(Y225M-6) |
Y90L-4
|
22(30)
|
1.5
|
3533
|
|||
