Quick Details
-
Color:
-
Green
-
Net shelling rate:
-
≥98%
-
Breakage rate:
-
≤3.5%
-
Loss rate:
-
≤0.5%
-
Damage rate:
-
≤2.8%
-
Impurity rate:
-
≤2%
-
Capacity:
-
≥1000kg/h
-
Power(kw):
-
3kw
-
Weight(kg):
-
200kg
-
Name:
-
Automatic Arachide Shelling Machine Peanut Hulling Machine
Quick Details
-
Weight (KG):
-
200
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZFTOPA
-
Color:
-
Green
-
Net shelling rate:
-
≥98%
-
Breakage rate:
-
≤3.5%
-
Loss rate:
-
≤0.5%
-
Damage rate:
-
≤2.8%
-
Impurity rate:
-
≤2%
-
Capacity:
-
≥1000kg/h
-
Power(kw):
-
3kw
-
Weight(kg):
-
200kg
-
Name:
-
Automatic Arachide Shelling Machine Peanut Hulling Machine

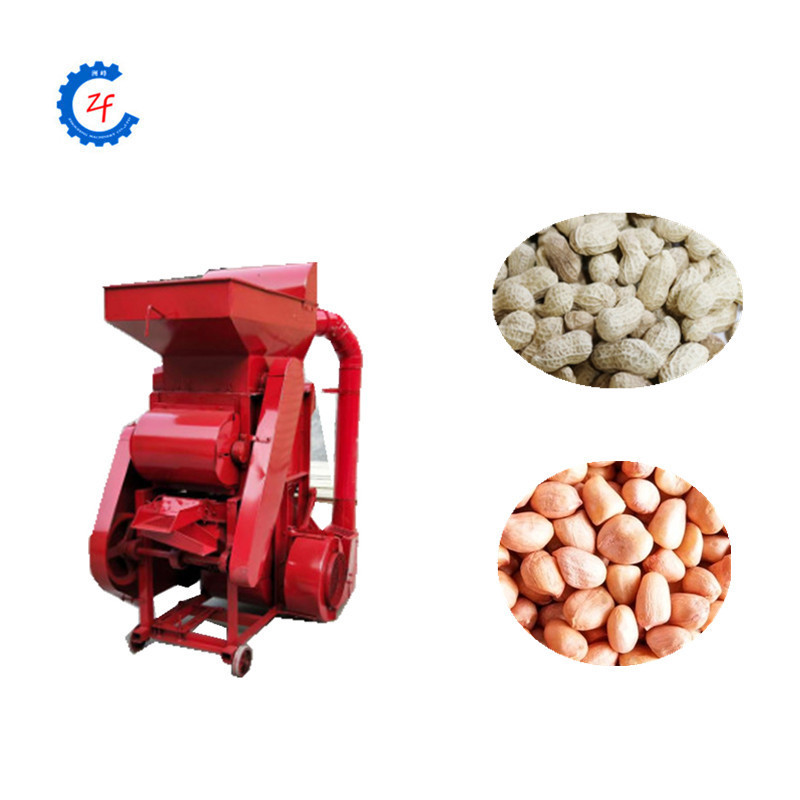

Full Automatic Peeling Peanut Shell Machine
I
ntroduction of Groundnut Sheller:
Peanut shelling machine suitable for shelling the peanut/groundnut, separate the peanut into seeds and hull completely.
Also is suitable for peeling cotton seeds, tea seeds, separate completely the kernel.
Working principles of Groundnut Sheller:
Power after starting, the spindle drive the parallel bars clicked under screen and amid the peanut shells rub them and strip off,
then the below screen hole squeeze out the peanut and the shell, finally sorting out the shell and the kernel by the fan.
Features of Groundnut Sheller:
1. One of the advantages of the machine is that the conveyor part is effective and economical .
2. it has the features of compact structure,beautiful shape; reliable operation and convenient maintenance.
3. The seeds can be used for food or the raw materials for the oil plant; the shell could be pelleted as fuel.
Peanut shelling machine suitable for shelling the peanut/groundnut, separate the peanut into seeds and hull completely.
Also is suitable for peeling cotton seeds, tea seeds, separate completely the kernel.
Working principles of Groundnut Sheller:
Power after starting, the spindle drive the parallel bars clicked under screen and amid the peanut shells rub them and strip off,
then the below screen hole squeeze out the peanut and the shell, finally sorting out the shell and the kernel by the fan.
Features of Groundnut Sheller:
1. One of the advantages of the machine is that the conveyor part is effective and economical .
2. it has the features of compact structure,beautiful shape; reliable operation and convenient maintenance.
3. The seeds can be used for food or the raw materials for the oil plant; the shell could be pelleted as fuel.
|
Model
|
ZFBH-1000
|
ZFBH-1600
|
ZFBH-3500
|
ZFBH-4500
|
|
Productivity
|
≥1000kg/h
|
≥1600kg/h
|
≥3500kg/h
|
≥4500kg/h
|
|
Net shelling rate
|
≥98％
|
≥98％
|
≥98％
|
≥98％
|
|
Breakage rate
|
≤3.5％
|
≤3.5％
|
≤3.8％
|
≤3％
|
|
Loss rate
|
≤0.5％
|
≤0.5％
|
≤0.5％
|
≤0.5％
|
|
Damage rate
|
≤2.8％
|
≤2.8％
|
≤3％
|
≤2.8％
|
|
Impurity rate
|
≤2％
|
≤2％
|
≤2％
|
≤2％
|
|
Matched power
|
3kw
|
5.5+4kw
|
7.5+7.5kw
|
7.5+7.5+3kw
|
|
Number of operators
|
1
|
2~3
|
2~4
|
2~3
|
|
Machine Weight
|
200kg
|
760kg
|
1100kg
|
1510kg
|
|
Dimensions
(mm) |
1330*750*1570
|
2530*1100*2790
|
3010*1360*2820
|
3130*1550*3420
|
