Quick Details
-
Model Number:
-
FLN 36
-
Max. Current:
-
630A
-
Product name:
-
indoor load break switch
-
Rated current:
-
630A
-
Rated frequency:
-
50Hz--60Hz
-
Color:
-
Grey+Red
-
Type:
-
Load Break Disconnect Switch
-
Rated voltage:
-
12 KV
Quick Details
-
Whether the smart:
-
NO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
yufly
-
Model Number:
-
FLN 36
-
Max. Current:
-
630A
-
Product name:
-
indoor load break switch
-
Rated current:
-
630A
-
Rated frequency:
-
50Hz--60Hz
-
Color:
-
Grey+Red
-
Type:
-
Load Break Disconnect Switch
-
Rated voltage:
-
12 KV
Product Description

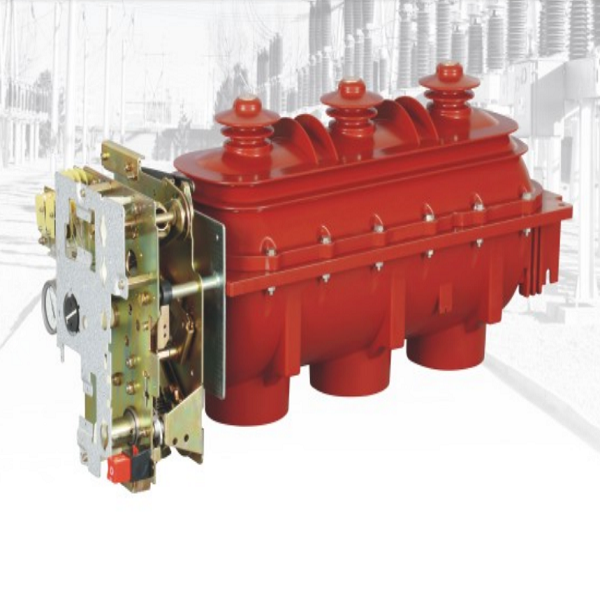

FLN36 SF6 LOAD BREAK SWITCH
FLN36-12(24)D/630-20 Indoor AC High Voltage SF6 Load Break Switch and FLRN36-12(24)D/100-31.5 Indoor AC High Voltage SF6 Load Break Switch-Fuse Combination are used for the three-phase AC 50/60Hz RMU and terminal power station. The switches are suitable for protecting the 10kV, 24kV and 35kV power system's on load situation. The switch can switch off the on load current, closed loop current, no load transformer capacity and cable charging current. The switch with fuse combination can cut off any current, when the current is in the range of the rated short-circuit breaking current. They are suitable for the RMU, combined transformer, etc..
Product Paramenters
|
Ratings
|
Unit
|
Value
|
Value
|
Value
|
|
Rated voltage
|
kV
|
12
|
24
|
36
|
|
Rated lighting impulse withstand voltage Common value
|
kV
|
75
|
125
|
170
|
|
Across the isolating distance
|
kV
|
85
|
145
|
195
|
|
Rated short duration power frequency withstand voltage Common value
|
kV
|
28
|
50
|
70
|
|
Across the isolating distance
|
kV
|
32
|
60
|
80
|
|
Rated frequency
|
Hz
|
50/60
|
50/60
|
50/60
|
|
Rated current
|
A
|
630
|
630
|
630
|
|
Rated short time withstand current
|
kA
|
25
|
20
|
20
|
|
Rated duration of short circuit
|
s
|
2
|
3
|
3
|
|
Rated peak withstand current
|
kA
|
62.5
|
50
|
50
|
|
Pole Distance
|
mm
|
200, 210
|
210, 250, 275
|
350
|
