Quick Details
-
Control System Brand:
-
Leetro
-
Cutting Area:
-
1200x800mm/1200x1200mm
-
Cutting Thickness:
-
0-25mm
-
Control Software:
-
DSP
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Hasary
-
Weight (KG):
-
2000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service
-
Feature:
-
Straight cutting gap
-
System:
-
Die Cutting Machine
-
Movement system:
-
Ballscrew Transfer
-
Control:
-
DPS system
-
Laser power:
-
300W
-
Cutting thickness:
-
max 25mm
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
200mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Leetro
-
Cutting Area:
-
1200x800mm/1200x1200mm
-
Cutting Thickness:
-
0-25mm
-
Control Software:
-
DSP
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Hasary
-
Weight (KG):
-
2000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service
-
Feature:
-
Straight cutting gap
-
System:
-
Die Cutting Machine
-
Movement system:
-
Ballscrew Transfer
-
Control:
-
DPS system
-
Laser power:
-
300W
-
Cutting thickness:
-
max 25mm

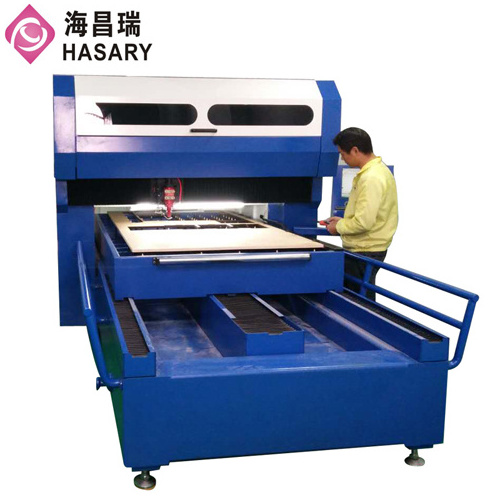

Die Board Laser Cutting Machine / wood Laser Cutter Price
Applied Field for Die Board Laser Cutting Machine:
1.Available Materials: It’s mainly used in thick MDF cutting, wood cutting, bamboo cutting, plywood cutting.
It also can be used for acrylic cutting, organic glass cutting, plastic cutting, PVC board cutting, plexiglass cutting etc. materials cutting.
2.Application Industry: packages, advertisement, handicrafts and other industries.
Technical Parameters:
|
Model No. |
HLD1208 |
HLD 1212 |
HLD 1218 |
HLD 1224 |
|
Valid Size (can be customized) |
1200×800mm |
1200×1200mm |
1200×1800mm |
1200×2400mm |
|
Laser Type |
Co2 Sealed Laser Tube |
|||
|
Laser Power |
300W / 400W (work bidirectionally with two laser heads) |
|||
|
Cutting Speed |
12000mm/min |
|||
|
Power Supply |
220V 10A |
|||
|
Cutting Width |
0.3-1mm(optional) |
|||
|
Max. Thickness |
25mm |
|||
|
Color Separation |
Yes |
|||
|
Cutting Precision |
±0.02mm |
|||
|
Image Form |
PLT, EPS, BMP, DXF |
|||
|
Control System |
Movement Control Board |
|||
|
Auxiliary Device |
Auto Focus |
|||
|
Cooling System |
Industry Water Chiller |
|||
Close-up photos of die board laser cutting machine
Bidirectional Laser Heads of Die Board Laser Cutting Machine
Why should we choose Die Board Laser Cutting Machine?
1. Auto Following and Focus System, key elements to successfully cut die board, can automatically senses the distance from cutting head to die board being cut and adjust the focus distance to keep a good cutting quality.
2. Install 2pcs Chinese Top Quality 300W CO2 laser tube, the watt is 1/10 of larger power cutting machine, low power consumption.
3. Advanced Two laser heads coaxial cutting technology, which can cut both sides of the die board in the same axle, enhance the whole process efficiency.
4. Germany Imported ball screw rod and Taiwan linear guide rail, matched two-dimensional accurate working table insure the high stability of the cutting performance.
5. Tempering heat treated lathe bed, which isn’t easy to be deformed.
6. The thickness of 15MM, 18MM, 20MM, 25MM die-board can be cut arbitrary width, such as 0.45, 0.71, 1.05, 1.42 etc. Kerf uniform, consistent from top to bottom seam. Once turned on, the machine can work without waiting time.
7. Cut directly with compressed air, no need to configurate with any other inactive gas, greatly lowered the users operation cost.
Characteristic:
|
1. approved. 2. Double laser heads, cut bidirectionally from top and bottom at the same time, with high cutting efficiency, also assure the cutting seam to be straight. 3. Automatic tracing system for focus point, overcomes the barrier of surface uneven. 4. Powerful software, like AutoCAD, CorelDraw, and Adobe Photoshop for unique designing. 5. Adopting imported guide rails, ballscrew transmission system, servo motor and our special designed software, insure steady performance. 6. CNC operation, with high cutting speed and accuracy. |
|
1. Die Board Laser Cutting Machine is well packed with standard wooden case according to international rules. 2. In order to insure sipping safety, we have done a lot of works for the package to protect laser machines and parts. 3. We will take photos before shipping to let you know the processing of packing and loading. |
2. User-friendly English manual and video for machine using and maintaining.
3. 24 hour technical support by email.
4. Five years engineering service.
