Quick Details
-
Brand Name:
-
ALMACO
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
BY MODEL
-
Weight (KG):
-
24000
-
Power (kW):
-
1.5
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts, Field maintenance and repair service, Video technical support, Field installation, commissioning and training
-
Max grinding size (dia X H):
-
1600*250
-
Emery tile size (thickx Wx L):
-
Wp35*90*150
-
Bench rotational speed:
-
16
-
Bernch shifting distance:
-
810
-
Bench shifting speed:
-
2.5
-
Bench rotational motor power:
-
5.5
-
Grind heed mobile shifting speed:
-
0.09
-
Grind heed mitor powrer:
-
75
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Algeria, Canada, Egypt
-
Certification:
-
CE ISO
Quick Details
-
Wheel Size(mm):
-
1600*250
-
Year:
-
2021
-
Place of Origin:
-
CHINA JIANGSU
-
Brand Name:
-
ALMACO
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
BY MODEL
-
Weight (KG):
-
24000
-
Power (kW):
-
1.5
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts, Field maintenance and repair service, Video technical support, Field installation, commissioning and training
-
Max grinding size (dia X H):
-
1600*250
-
Emery tile size (thickx Wx L):
-
Wp35*90*150
-
Bench rotational speed:
-
16
-
Bernch shifting distance:
-
810
-
Bench shifting speed:
-
2.5
-
Bench rotational motor power:
-
5.5
-
Grind heed mobile shifting speed:
-
0.09
-
Grind heed mitor powrer:
-
75
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Algeria, Canada, Egypt
-
Certification:
-
CE ISO
Products Description
Brief Introduction
The series of machine tools have made greater improvement on bed and grinding head rigidity; increase one set of electronic oil pumping system each for bottom guide rail and upright post guide rail of work bench, can pump oil automatically and oil volume is adjustable.upright post adopts three-point adjustment,compace structure,work bench is round powerful electromagnetic chuck, magnetic froce is uniform, precision is stable, power is big, electronic magnetizing and demagetizing ,and equips with coolant purification device.

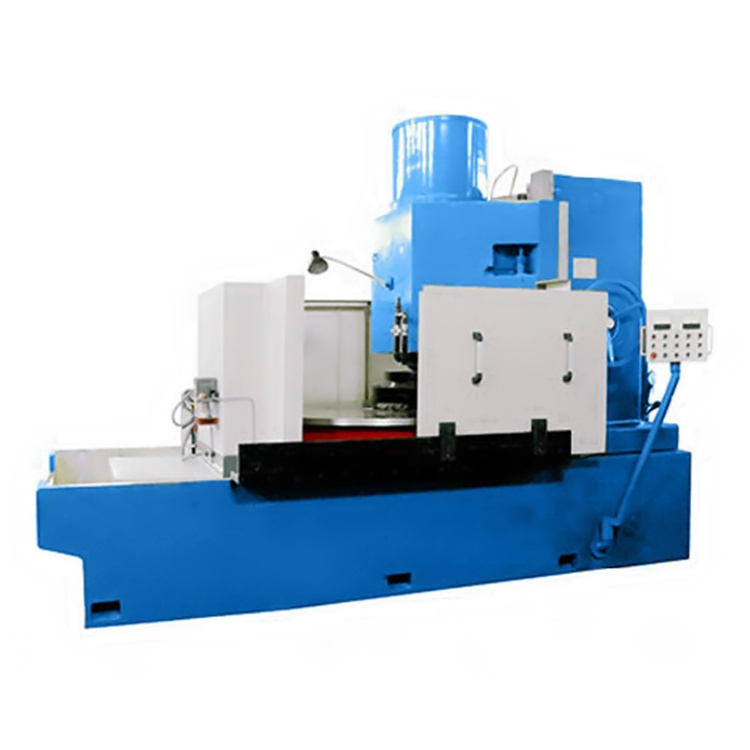

The surface grinding machine with
vertical spindle and round table
is to grind the end face of grinding wheel ,is a high efficiency,precise and stable machine tool.
Grinding wheel rack
The hydrostatic spindle system of grinding wheel with wide speed range, high rigidity and high precision is developed to realize the high rigidity and high precision rotary motion of grinding wheel. The grinding wheel shaft is supported by hydrostatic bearing, Siemens built-in spindle motor and coolant forced cooling spindle motor. The grinding wheel spindle is equipped with grinding wheel balancing device. The supporting management control program can continuously monitor the grinding wheel condition in the cycle and immediately compensate the possible unbalance.
Specification
|
|
17303
|
|
Main Spe cifications
|
VSG160
|
|
Bench dia
|
1600
|
|
Attraction scope of electormagnetic bench
|
80-120N/cm2
|
|
Max grinding size (dia X H)
|
1600*250
|
|
Emery tile size (thickx Wx L)
|
Wp35*90*150
|
|
Bench rotational speed
|
16
|
|
Bernch shifting distance
|
810
|
|
Bench shifting speed
|
2.5
|
|
Bench rotational motor power
|
5.5
|
|
Grind heed main shaft rotational speed
|
585
|
|
Grind heed mobile shifting speed
|
0.09
|
|
Grind heed mitor powrer
|
75
|
|
Grind heed lift motor power
|
1.5
|
|
Vertical movement of Grind Heed Per hend diae
|
0.32
|
|
Vertical movement of Grind Heed Per Scale diae
|
0.01
|
|
Vertical movement of Grind Heed Per Tur diae
|
0.7
|
|
Pump mator power
|
0.25
|
|
Machinachine tool total power
|
84
|
|
Machine tool totalweight (APPR)
|
24000
|
|
Old model
|
M74160
|
