Frame mixer stepless speed control, digital display.
- Product Details
- {{item.text}}
Quick Details
-
Max. Loading Capacity:
-
50L
-
Weight (KG):
-
100 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOPCN
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
450*470mm
-
Power (kW):
-
2.5 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Mixing Tank
-
Working capacity:
-
50L
-
Heating type:
-
Electric heating, Tap water cooling
-
Application scope:
-
Daily Chemical & Cosmetics, Food Industry
-
After Warranty Service 1:
-
Video technical support
-
After Warranty Service 2:
-
Online support
-
After Warranty Service 3:
-
Spare parts
-
After Warranty Service 4:
-
Field maintenance and repair service
Quick Details
-
Barrel Volume (L):
-
50
-
Max. Loading Volume (L):
-
50 L
-
Range of Spindle Speed(r.p.m):
-
1 - 65 r.p.m
-
Max. Loading Capacity:
-
50L
-
Weight (KG):
-
100 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOPCN
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
450*470mm
-
Power (kW):
-
2.5 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Mixing Tank
-
Working capacity:
-
50L
-
Heating type:
-
Electric heating, Tap water cooling
-
Application scope:
-
Daily Chemical & Cosmetics, Food Industry
-
After Warranty Service 1:
-
Video technical support
-
After Warranty Service 2:
-
Online support
-
After Warranty Service 3:
-
Spare parts
-
After Warranty Service 4:
-
Field maintenance and repair service
Product Description

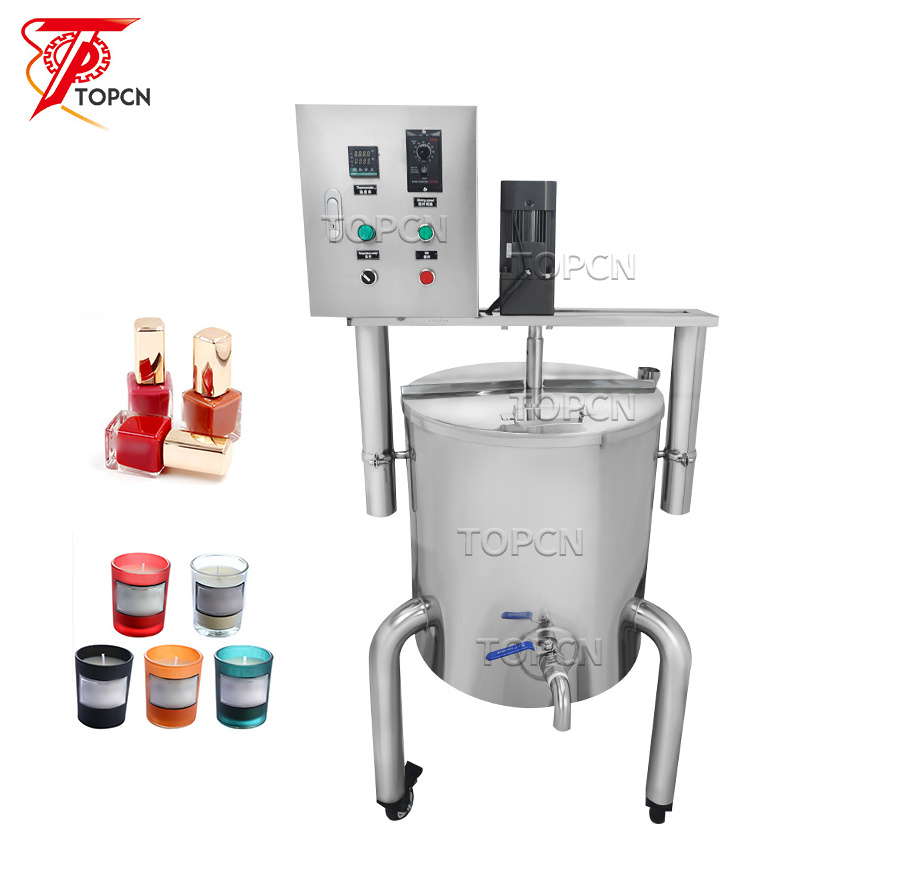

This machine is suitable for heating, melting, mixing, and mixing water agents, solution,
paste, lipstick, paraffin wax, and other substances. it can be used in small batch lipstick production, laboratory development of cosmetics, food, and other industries.
When the heating object is solid, it needs to be heated until the material dissolves before it can start stirring, otherwise, the motor will be damaged.
When using water as the heating medium, you can heat up to 100 degrees Celsius. If you need to reach more than 100 degrees Celsius, you can use heat conduction oil, which can be heated up to 300 degrees Celsius.
paste, lipstick, paraffin wax, and other substances. it can be used in small batch lipstick production, laboratory development of cosmetics, food, and other industries.
This machine adopts stainless steel shell, which is beautiful in appearance, easy to clean, and easy to operate.
When the heating object is solid, it needs to be heated until the material dissolves before it can start stirring, otherwise, the motor will be damaged.
When using water as the heating medium, you can heat up to 100 degrees Celsius. If you need to reach more than 100 degrees Celsius, you can use heat conduction oil, which can be heated up to 300 degrees Celsius.
Specification
|
Function
|
Specifications
|
|
Voltage
|
AC 220V 50HZ
|
|
power
|
2.5KW
|
|
Size
|
650L*800W*1700H[CM]
|
|
Barrel size
|
Φ450×470(H)mm
|
|
Barrel volume
|
50L(100L,150L,200L etc
|
|
Barrel capacity
|
≤50 Kg / barrel / time
|
|
temperature range
|
optimum temperature 80-120 ℃
|
|
Stirring speed
|
0-65 R/M
|
|
Material
|
SUS304
|
|
Net weight
|
about 100KG
|
Mixing Motor
2 phase asynchronous motor, it is suitable for home use
Products can be discharged form Bottom discharge outlet directly or through a pump .
Electronic control system
1. Emergency stop switchis also the power switch .
2. mixing speed adjustment, the mixer speed can be customized according to different products .
3. Heating temperaturecan be set according to different production formula . Heated by water or conduction oil . If heating by conduction oil , the heating jacket can not be cooled .
2. mixing speed adjustment, the mixer speed can be customized according to different products .
3. Heating temperaturecan be set according to different production formula . Heated by water or conduction oil . If heating by conduction oil , the heating jacket can not be cooled .
