Quick Details
-
Max. Loading Capacity:
-
50-50000L
-
Weight (KG):
-
300 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FLT
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Custom Made
-
Power (kW):
-
0.75 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Stainless steel liquid fertilizer mixing tank
-
Function:
-
Blending,dispersing,emulsion,homogenize
-
Usage:
-
mixing viscous liquid
-
Heating method:
-
steam,gas,electric heater
-
Motor:
-
ABB,SIEMENS,SEW,Domestic Brand
-
Control:
-
button,electric cabinet,PLC/HMI
-
Machine Type:
-
mixing equipment
-
mixing vessel:
-
manure mixing tank
Quick Details
-
Barrel Volume (L):
-
200
-
Max. Loading Volume (L):
-
20000 L
-
Range of Spindle Speed(r.p.m):
-
1 - 2800 r.p.m
-
Max. Loading Capacity:
-
50-50000L
-
Weight (KG):
-
300 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FLT
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Custom Made
-
Power (kW):
-
0.75 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Stainless steel liquid fertilizer mixing tank
-
Function:
-
Blending,dispersing,emulsion,homogenize
-
Usage:
-
mixing viscous liquid
-
Heating method:
-
steam,gas,electric heater
-
Motor:
-
ABB,SIEMENS,SEW,Domestic Brand
-
Control:
-
button,electric cabinet,PLC/HMI
-
Machine Type:
-
mixing equipment
-
mixing vessel:
-
manure mixing tank

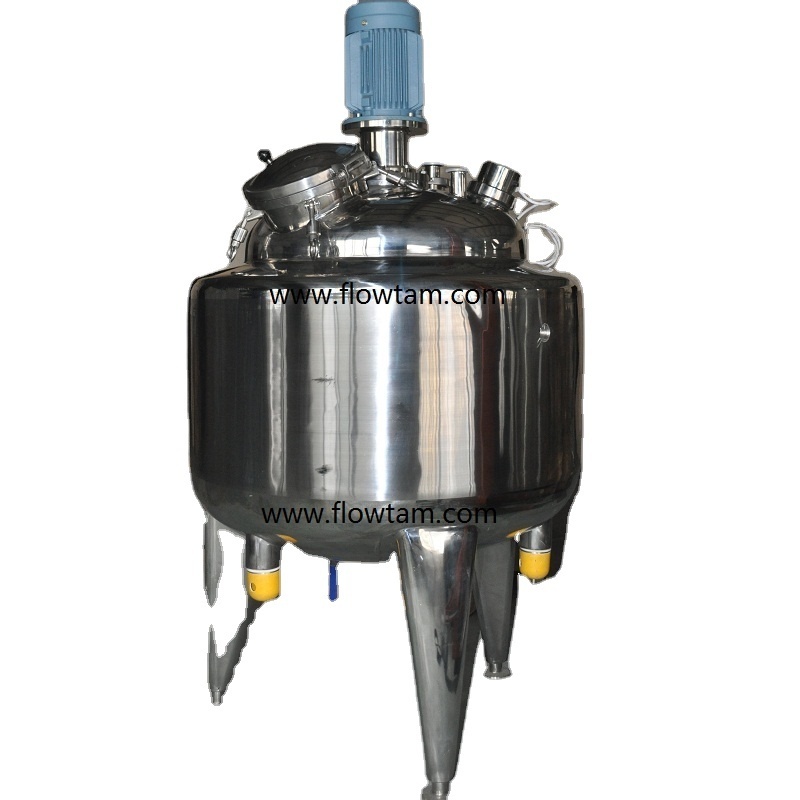

Stainless steel liquid fertilizer mixing tank
Details
| Product Name | Storage tank/mixing tank/blending vessel/emulsifying tank/jacketed kettle /reactor |
| Description | Designed according to 3A standard, widely used for transfer viscous media in the food-processing, beverage, chemical,cosemtics |
| Construction | Horizontal and vertical; Open lid, flat,disc,conical,shell cover; |
| Material | SS304/SS316L/1.4301/1.4404 |
| Seal Ring | Fluorine Rubber,EPDM,PTFE,Silicone(Standard,approval) |
| Mechnical Seal | SIC,Hard alloy,graphite |
| Volume | 50-50000L |
| Pressure | 0-20 bar |
| Working temperature | 300 C / 572 F |
| Jacket | Coil,dimple jacket,hollow jacket |
| Cooling | water,coolant, compressor |
| Heating | electric(water,oil), steam |
| Agitator | stirrer,high shear homogenizer,scrap mixer |
| Agitator Speed | Constand speed and variable speed; Range: 0-4000rpm |
| Motor power | 0.37kw-100kw |
| Voltage | 110v/220v/240v/380v/415v/460v (50/60hz) |
| Motor | SIEMENS,ABB,Domestic |
| Automitac | PLC/HMI control,display,store,transfer |
| Surface treatment | Inner and externel polished and brushed,good weldings and joints; |
| Accessories | Customizable support |
| Availably connection | Clamp, Thread, Butt weld, Flange |
| Availably standard | DIN, SMS, 3A, RJT, ISO/IDF |
| Application scope | Dairy, food, beverage, chemical,cosmetic, etc |
| Packaging Details | Plywood case or customerized. Or as per the request of customers |
| Delivery details | Usually within 25 days after receiving T/T down payment,special customized need negotiation. |
Technical parameters
| Effective volume | Dimension of tank | Total height | Diameter of inlet&outlet | Heat preservation layer |
| (L) | (mm) | (mm) | (mm) | (mm) |
| 500 | 840*1000 | 2250 | 38 | 60 |
| 600 | 920*1000 | 2300 | 38 | 60 |
| 700 | 990*1000 | 2300 | 38 | 60 |
| 800 | 950*1220 | 2500 | 38 | 60 |
| 900 | 1010*1220 | 2500 | 38 | 60 |
| 1000 | 1060*1500 | 2850 | 51 | 60 |
| 1500 | 1160*1500 | 2850 | 51 | 60 |
| 2000 | 1340*1500 | 2900 | 51 | 60 |
| 3000 | 1410*2000 | 3400 | 51 | 60 |
| 4000 | 1620*2000 | 3450 | 51 | 60 |
| 5000 | 1810*2000 | 3500 | 51 | 60 |
| 6000 | 1980*2000 | 3550 | 51 | 60 |
| 7000 | 1930*2440 | 4000 | 51 | 60 |
| 8000 | 2060*2440 | 4000 | 51 | 60 |
| 9000 | 2180*2440 | 4050 | 51 | 60 |
| 10000 | 2300*2440 | 4050 | 51 | 60 |
| 12000 | 2270*3000 | 4600 | 51 | 60 |
| 15000 | 2530*3000 | 4700 | 51 | 60 |
| 20000 | 2640*3660 | 5400 | 51 | 60 |
Company Info
Supply Mixing tank,Reactor tank,fermentation tank,Inline homogenizer,High shear emulsifier mixer,Colloid mill,Jacket cooking kettle,Rotor pump,screw pump,emulsion pump,transfer pump etc.
Widely used in many fields, such as dairy, beer, food, beverage, cosmetic etc.,exported to America, Europe, the Middle East
