* Gas turbines
* Petrochemical industry
* Industrial furnaces
* Heat treating equipment
* Nuclear engineering
* Jet engine combustion chambers
* Aircraft cabin heaters
* Turbine exhaust components
- Product Details
- {{item.text}}
Quick Details
-
Elongation (≥ %):
-
30, 15-25
-
Place of Origin:
-
shanghai
-
Application:
-
cutting tools, knives
-
Grade:
-
hastelloy c4
-
Ni (Min):
-
63%
-
Model Number:
-
hastelloy c4
-
Brand Name:
-
YIla
-
Product name::
-
inconel 617
-
Finishing:
-
pickling, machining, abrasive blasting
-
Technique:
-
forging /hot rolled
-
density:
-
about 8.4 g/cm3
-
Payment:
-
50% T/T in advance
-
Standard:
-
ASTMB265, AMS4911, GB/T 3621, etc.
-
color:
-
Silver Gray
-
MOQ:
-
1kg
-
Service:
-
Welding, Cutting, Punching
Quick Details
-
Resistance (μΩ.m):
-
1.12±0.06
-
Powder Or Not:
-
Not Powder
-
Ultimate Strength (≥ MPa):
-
760
-
Elongation (≥ %):
-
30, 15-25
-
Place of Origin:
-
shanghai
-
Application:
-
cutting tools, knives
-
Grade:
-
hastelloy c4
-
Ni (Min):
-
63%
-
Model Number:
-
hastelloy c4
-
Brand Name:
-
YIla
-
Product name::
-
inconel 617
-
Finishing:
-
pickling, machining, abrasive blasting
-
Technique:
-
forging /hot rolled
-
density:
-
about 8.4 g/cm3
-
Payment:
-
50% T/T in advance
-
Standard:
-
ASTMB265, AMS4911, GB/T 3621, etc.
-
color:
-
Silver Gray
-
MOQ:
-
1kg
-
Service:
-
Welding, Cutting, Punching
Product Show

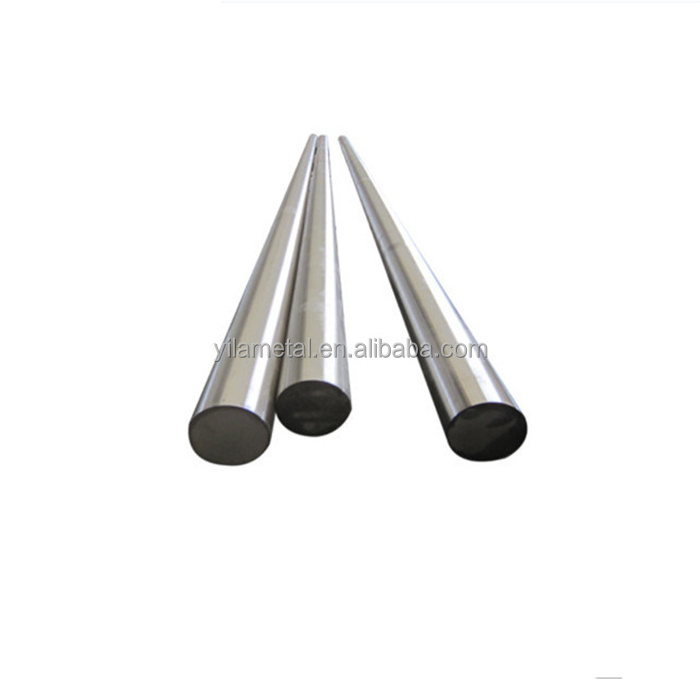

hot rolled inconel 600 601 617 alloy steel round bar manufacturer
Product Description
Application:
|
Name
|
inconel 617
|
|
Shape
|
Round bar,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,sheet
|
|
Diameter
|
1.0-150mm
|
|
Length
|
1000mm-6000mm or as customer' s requirement
|
|
Technique
|
Hot rolled or Cold rolled
|
|
Grade
|
Hastelloy: hastelloyB3/B2/X/C/C22/C276/G-30
|
|
|
Inconel: inconel600/601/601/725,
|
|
|
Incoloy: incoloy800/800h/825/925,
|
|
|
Monel: monel400/k500/404,
|
|
|
Nickel: nickel200/201,
|
|
|
Nitronic: Nitronic50/60,
|
|
|
Alloy: Alloy20/28/330/31/33/75, 4J36/1J50/1J79/4J29/4J42,/3J53
|
|
|
Nimonic: nimonic80/80a/90/75, ETC.
|
|
Price Term
|
EXW/FOB/CFR/CIF/FCA
|
|
Package
|
Woven bag /Wooden crate
|
|
Delivery time
|
7-25Days
|
|
Specification
|
Bar: φ4-50mm;Length 2000-5000mm
|
|
|
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
|
|
|
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
|
|
|
Wire: 0.01-10mm
|
|
|
Strip: 0.05*5.0-5.0*250mm
|
Features of
hastelloy c4 bar/rod
* Outstanding oxidation resistance through 2000° F
* Resistant to carburization and nitriding
* Excellent high temperature strength
* Good resistance to chloride stress-corrosion cracking
* Resistant to carburization and nitriding
* Excellent high temperature strength
* Good resistance to chloride stress-corrosion cracking
Chemcial Composition
|
Item
|
C-276
|
C-22
|
C-4
|
B2
|
B3
|
N
|
|
C
|
≤0.01
|
≤0.015
|
≤0.015
|
≤0.02
|
≤0.01
|
0.04-0.08
|
|
Mn
|
≤1
|
≤0.5
|
≤1
|
≤1
|
≤3
|
≤1
|
|
Fe
|
4-7
|
2-6
|
≤3
|
≤2
|
≤1.5
|
≤5
|
|
P
|
≤0.04
|
≤0.02
|
≤0.04
|
≤0.04
|
——
|
≤0.015
|
|
S
|
≤0.03
|
≤0.02
|
≤0.03
|
≤0.03
|
——
|
≤0.02
|
|
Si
|
≤0.08
|
≤0.08
|
≤0.08
|
≤0.1
|
≤0.1
|
≤1
|
|
Ni
|
rest
|
rest
|
rest
|
rest
|
≥65
|
rest
|
|
Co
|
≤2.5
|
≤2.5
|
≤2
|
≤1
|
≤3
|
≤0.2
|
|
Al+Ti
|
——
|
——
|
——
|
——
|
≤0.5
|
≤0.5
|
|
Ti+Cu
|
——
|
——
|
≤0.7
|
——
|
≤0.4
|
≤0.35
|
|
Cr
|
14.5-16.5
|
20-22.5
|
14-18
|
≤1
|
≤1.5
|
6-8
|
|
Mo
|
15-17
|
12.5-14.5
|
14-17
|
26-30
|
≤28.5
|
15-18
|
|
B
|
——
|
——
|
——
|
——
|
——
|
≤0.01
|
|
W
|
3-4.5
|
2.5-3.5
|
——
|
——
|
≤3
|
≤0.5
|
|
V
|
≤0.35
|
≤0.35
|
——
|
0.2-0.4
|
——
|
≤0.5
|
Hastelloy c4
is a nickel-chromium-iron-molybdenum superalloy with outstanding high temperature strength, oxidation resistance, and fabricability. Alloy X’s oxidation resistance is excellent up to 2200° F. This nickel steel alloy has also been found to be exceptionally resistant to stress-corrosion cracking in petrochemical applications. Matrix stiffening provided by the molybdenum content results in high strength in a solid-solution alloy having good fabrication characteristics. Although this nickel alloy is primarily noted for heat and oxidation resistance it also has good resistance to chloride stress-corrosion cracking, carburization, and excellent resistance to reducing or carburizing atmospheres. Two common conditions that often lead to early failure in high temperature alloys, carburization and nitriding, Hastelloy X resists.
Alloy c4 is one of the most widely used nickel base superalloys for gas turbine engine combustion zone components such as transition ducts, combustor cans, spray bars and flame holders as well as in afterburners, tailpipes and cabin heaters. It is recommended for use in industrial furnace applications because it has unusual resistance to oxidizing, reducing and neutral atmospheres. Hastelloy X is also used in the chemical process industry for retorts, muffles, catalysts support grids, furnace baffles, tubing for pyrolysis operations and flash drier components.
One-Stop Service
Laser cutting
Slitting
Water Jet Cutting
Heat treatment
Polishing
Milling
Technological Process
Packaging & Delivery
1. In spool and plywooden box
2. In coil and woven belt
2. In coil and woven belt
