Quick Details
-
Return Force (kN):
-
400 kN
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Messerpress
-
Year:
-
2023
-
Voltage:
-
220V--600V
-
Weight (T):
-
2.65 T
-
Model Number:
-
YL32-160T
-
Motor Power (kw):
-
7.5 kw
-
Marketing Type:
-
New Product 2023
-
Nominal Force (kN):
-
1600Kn
-
Worktable size:
-
700*700mm
-
Height of machine:
-
2900mm
-
Max Open height:
-
900mm
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
500mm
-
Ejector Force (kN):
-
400
-
Return Force (kN):
-
400 kN
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Messerpress
-
Year:
-
2023
-
Voltage:
-
220V--600V
-
Weight (T):
-
2.65 T
-
Model Number:
-
YL32-160T
-
Motor Power (kw):
-
7.5 kw
-
Marketing Type:
-
New Product 2023
-
Nominal Force (kN):
-
1600Kn
-
Worktable size:
-
700*700mm
-
Height of machine:
-
2900mm
-
Max Open height:
-
900mm
Overview

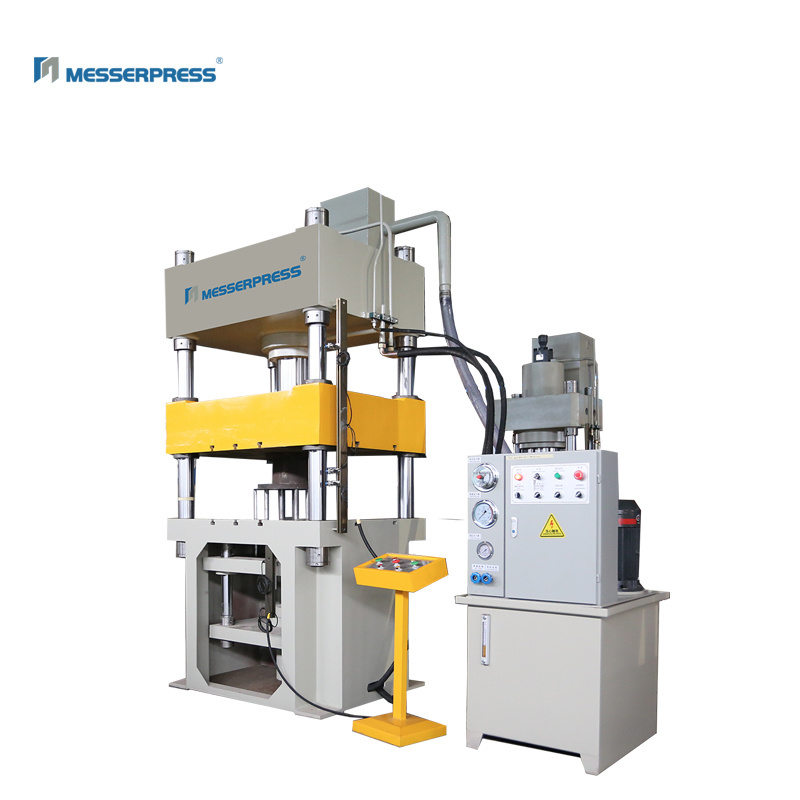

Features of hydraulic press
Hydraulic press machine adopts the structure form of three beams and four columns. The body is composed of worktable, slide block, upper beam, column, locking mother and adjusting nut, etc. Four-column structure is one of the most common structural forms of hydraulic press. The most notable feature of the four-column structure is the large working space, easy to view from all sides and access to the mold. The whole machine has simple structure and good technology, but the column needs large round steel or forgings. In a certain mechanical and electronic system, the hydraulic press relies on the static pressure of liquid medium to complete the backlog, transmission and amplification of energy, and realize the lightweight, scientific and maximum mechanical function. Hydraulic machinery has the characteristics of light weight, large power, simple structure, flexible layout, convenient control, speed, torque, power can do stepless adjustment, can quickly change direction and speed, wide speed range, fast performance, smooth work, low noise. Suitable for metal material pressing process, such as stamping, bending, flanging, sheet stretching
Products Description
Cylinder
Polished and chromed with high rigidity treatment
Button Control
Main Motor and Hydraulic Valve
Hydraulic Valve is Cartridge valve integral unit
equipped for hydraulic control system,
reliable, durable and less hydraulic shock,
with shorter connection pipeline and fewer releases points
Ejection Cylinder
Pressure gauge
Detect main cylinder and ejection
cylinder pressure,
adjust system hydraulic pressure
Electric parts
Specification
|
Items
|
|
160T
|
|
|
Nominal force
|
|
1600kn
|
|
|
Maximum working presssure of liquid
|
|
28Mpa
|
|
|
Max stroke of cylinder
|
|
500mm
|
|
|
Max open height
|
|
900mm
|
|
|
Diameter of cylinder
|
|
260mm
|
|
|
Diameter of piston rod
|
|
235mm
|
|
|
Diameter of column
|
|
80mm
|
|
|
Workertable size
|
L- R
|
700mm
|
|
|
|
F- B
|
700mm
|
|
|
Height of machine
|
|
2900mm
|
|
|
Down load speed
|
|
80mm/s
|
|
|
Pressing speed
|
|
10-16mm/s
|
|
|
Return speed
|
|
96mm/s
|
|
|
Oil pump(YCY14-1B)
|
|
40
|
|
|
Motor power
|
|
7.5kw
|
|
|
Ejection cylinder
|
|
400kn
|
|
|
Ejection stroke
|
|
200mm
|
|
Packing & Delivery
The packaging options available include plastic, wooden, or any other type as per the customers' preference.
