Quick Details
-
Main Circuit Rating Voltage:
-
380V 690V
-
Main Circuit Rating Current:
-
0.01
-
Place of Origin:
-
China
-
Product name:
-
ac power adapters contactor
-
Material:
-
High Standard Plastic Silver Copper
-
Rated current:
-
up to 85A
-
Main current rating voltage:
-
380V
-
Standard:
-
GB14048.4
-
Rated frequency:
-
50/60 Hz
-
Color:
-
Gray
-
Installation class:
-
III
-
Temperature:
-
-25~55℃
-
Mechanical Life:
-
10000000 Times
Quick Details
-
Electricity Type:
-
AC
-
Number of Pole:
-
4
-
Phase:
-
3
-
Main Circuit Rating Voltage:
-
380V 690V
-
Main Circuit Rating Current:
-
0.01
-
Place of Origin:
-
China
-
Product name:
-
ac power adapters contactor
-
Material:
-
High Standard Plastic Silver Copper
-
Rated current:
-
up to 85A
-
Main current rating voltage:
-
380V
-
Standard:
-
GB14048.4
-
Rated frequency:
-
50/60 Hz
-
Color:
-
Gray
-
Installation class:
-
III
-
Temperature:
-
-25~55℃
-
Mechanical Life:
-
10000000 Times

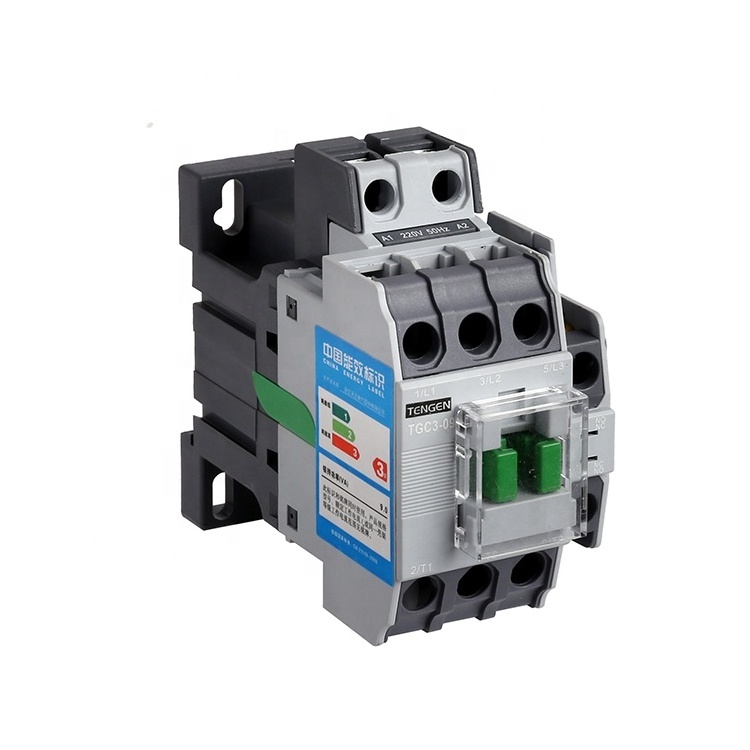

TGC3 Telemecanique Auxiliary Capacitor Ac Power Adapters Contactor
ac power adapters contactor
TGC3 series AC contactor (hereinafter referred to as the contactor), mainly used for AC 50 hz, rated voltage 690 v, used in AC - 3 categories under the rated working voltage of 380 v, rated current - 85 - a circuit, for distance and breaking circuit, and with the appropriate thermal overload relay composed of electromagnetic starter circuit may occur in order to protect the overload operation. Contactor is suitable for frequent start and control of ac motor.
|
Current specification |
9A |
12A |
18A |
22A |
32A |
40A |
50A |
65A |
75A |
85A |
|
|
IEC/EN 60947-4-1 |
A |
||||||||||
|
Agreed upon in the free air heating current(A) |
25 |
25 |
32 |
40 |
50 |
50 |
80 |
80 |
110 |
125 |
|
|
Rated current, and power |
380V/400V(AC-3) |
9 |
12 |
18 |
22 |
32 |
40 |
50 |
65 |
75 |
85 |
|
380V/400V(AC-4) |
3.5 |
5 |
7.7 |
8.5 |
12 |
18.5 |
24 |
28 |
37 |
44 |
|
|
660V/690V(AC-3) |
5 |
9 |
9 |
18 |
20 |
23 |
28 |
35 |
42 |
45 |
|
|
660V/690V(AC-4) |
1.5 |
2 |
3.8 |
4.4 |
7.5 |
9 |
12 |
14 |
17.3 |
21.3 |
|
|
Model |
TGC3-09 |
TGC3-12 |
TGC3-18 |
TGC3-22 |
TGC3-32 |
TGC3-40 |
TGC3-50 |
TGC3-65 |
||
|
rated operational current (A) |
380V/400V |
AC-3 |
9 |
12 |
18 |
22 |
32 |
40 |
50 |
65 |
|
AC-4 |
3.5 |
5 |
7.7 |
8.5 |
12 |
18.5 |
24 |
28 |
||
|
660V/690V |
AC-3 |
5 |
9 |
9 |
18 |
20 |
23 |
28 |
35 |
|
|
AC-4 |
1.5 |
2 |
3.8 |
4.4 |
7.5 |
9 |
12 |
14 |
||
|
Agreed upon in the free air heating current(A) |
25 |
25 |
32 |
40 |
50 |
50 |
80 |
80 |
||
|
Rated insulation voltage(V) |
690 |
|||||||||
|
Rated impulse withstand voltage(kV) |
6 |
8 |
||||||||
|
Mechanical life (ten thousand) |
1000 |
800 |
||||||||
Tengen Group Co., Ltd. is one of the largest scale enterprises of industrial equipment. Our general headquarters lies in "China Electric Appliance Capital", Liushi, Wenzhou. We have successively won honorary titles such as national large-scale enterprise, national level enterprise, China's electric top 100 enterprise, China mechanical top 100 enterprise, and China's top 100 manufacturer.The product quality of Tengen Group has been strictly controlled in each working procedure, and many kinds of internationalization standard quality guaranteed systems can be highly effective under our company's strict monitoring.
Q:
What’s the payment terms?
A:
We accept T.T, Paypal, Western Union, LC at sight.
Q:
What’s the delivery time?
A:
Usually it will take about three weeks for production.
Q:
What’s the standard of package?
A:
Export standard package or special package according to custome
Q:
What kind of product quality your factory offer?
A:
We offer most competitive prices with best quality.
Q:Which market do you already sell?
A:We already ship to North America, Europe, Middle East, Southeas.
