Quick Details
-
Voltage:
-
according to buyer
-
Power:
-
according to machine model
-
Dimension(L*W*H):
-
according to machine model
-
Weight (KG):
-
19800
-
Color:
-
according to buyer
-
Working voltage:
-
according to buyer
-
Hydraulic system:
-
Rexroth
-
Electrical system:
-
Siemens
-
price advantage:
-
factory direct export
-
quality advantage:
-
20 years manufacturing experience
-
service advantage:
-
engineers abroad
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Marketing Type:
-
Hot Product 2024
-
Brand Name:
-
VASIA
-
Voltage:
-
according to buyer
-
Power:
-
according to machine model
-
Dimension(L*W*H):
-
according to machine model
-
Weight (KG):
-
19800
-
Color:
-
according to buyer
-
Working voltage:
-
according to buyer
-
Hydraulic system:
-
Rexroth
-
Electrical system:
-
Siemens
-
price advantage:
-
factory direct export
-
quality advantage:
-
20 years manufacturing experience
-
service advantage:
-
engineers abroad

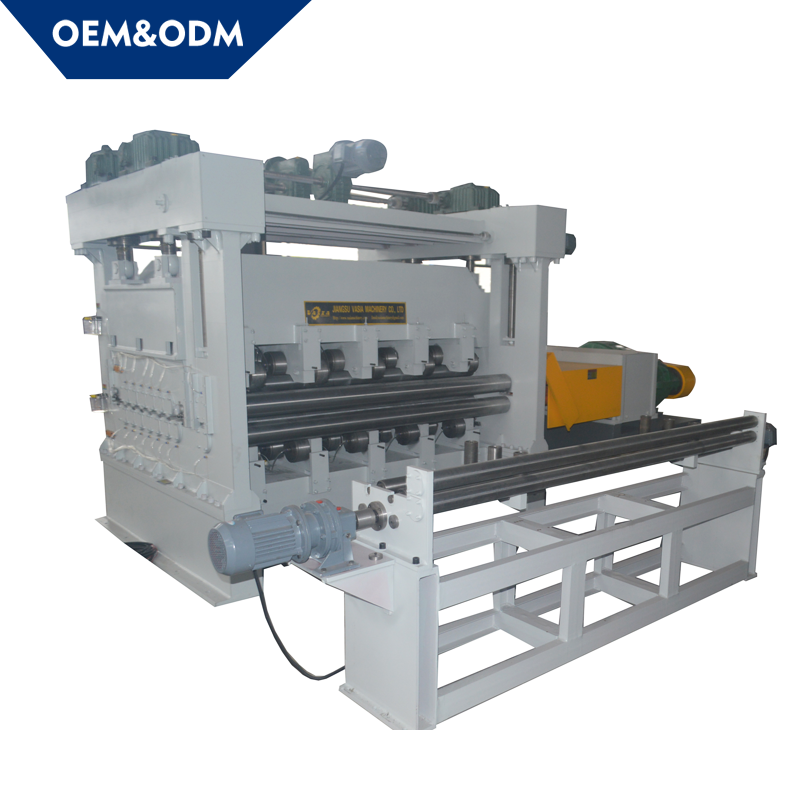

6 high structure metal plate leveler machine
1.This machine employs three structure , 2-high,4-high,6-high and can be matched with multi-group supporting rollers.
2.Straightening roller material: 42CrMo, GCr15, 9CrSi and 9Cr2Mo is available for selection.
3.Straightening roller treatment: stress relief by quenching and tempering, quenching (HRC54, HRC60), hard plating treatment for cold plate, stainless steel plate and leveling roller surface.
4.Reducer: ZQ standard reducer, ZY reducer and TR reducer with hard tooth surface is available for selection.
5.Distribution box: self-made; it employs one-stage drive and two-stage distribution structure, and its gear is the 20CrMnTi penetration gear.
6.Universal connecting shaft: automobile universal shaft and universal roll for the metallurgical industry.
7.Adjustment methods: manual and electrical adjustment.
8.Lubrication methods: mainly focus on lubrication operated by manual or electric pump.
9.Applications: applicable for general leveling for carbon steel plate, stainless steel plate.
10.We can design and produce for special requirements.
Optional Specifications:
| Model |
Thickness (mm)
|
Width
(mm)
|
Straightening roller diameter (mm)
|
Working roller distance (mm)
|
Qty. of working rollers
(PCS)
|
Straightening speed
m/min
|
|
VASIA-1.5x1600
|
0.15-1.5
|
1600
|
50
|
55
|
19
|
0-20
|
|
VASIA-3x1600
|
0.5-3
|
1600
|
75
|
80
|
15
|
0-20
|
|
VASIA-6x2000
|
1-6
|
2000
|
95
|
100
|
13
|
0-15
|
|
VASIA-8x2000
|
2-8
|
2000
|
130
|
140
|
13
|
0-15
|
|
VASIA-12x2500
|
3-12
|
2500
|
150
|
160
|
11
|
0-10
|
|
VASIA-16x2500
|
4-16
|
2500
|
180
|
200
|
11
|
0-10
|
