Quick Details
-
Weight:
-
3100
-
Certification:
-
ISO
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WECAN
-
Dimension(L*W*H):
-
2984*1509*2168mm
-
Weight:
-
3100
-
Certification:
-
ISO

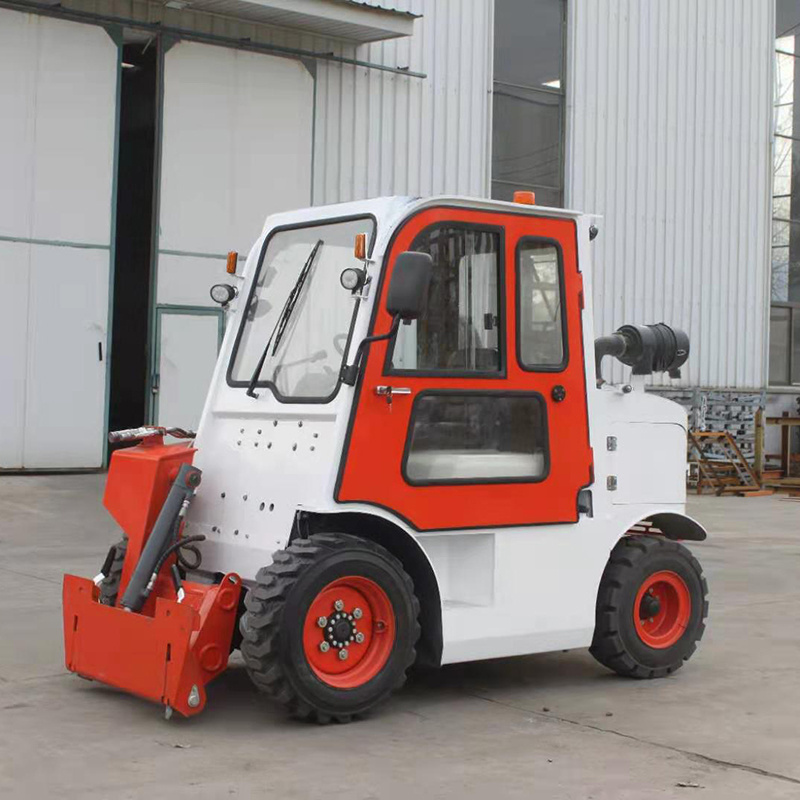

WECAN New Community Snow Sweeper
Community Snow Sweeper standard configuration:
Shift:forward 2/backword :2
China III Engine 4C6.65KW
Pneumatic tyre,
Seat with safety belt & steady bar
Warning light.
Manual
can suit for bucket, fork, snow blade ,hinged bucket, sweeper,snow blower ,angle broom,and so on
specifications of 1 ton diesel forklift
| Brand | WECAN | ||
| General | 1 | Model | IS140 |
| 2 | Rated capacity | 900kg | |
| 3 | Total cycling time | 9s | |
| 4 | Power type | diesel | |
| Dimensions | 5 | Max height of Hinge | 2754m |
| 6 | Tile angle in the Max height | 110. | |
| 7 | Min. turning radius | 3045mm | |
| 8 | Overall length | 2984mm | |
| 9 | Overall width | 1509mm | |
| 10 | Overall height (mast lowered) (H) | 2168mm | |
| 11 | wheel base | 1850mm | |
| 12 | tyre of power shift | manual | |
| 13 | shift | forward :2/ backword :2 | |
| 14 | standard flow | 70L/min | |
| 15 | high flow | 140L/min | |
| Performance | 16 | Max driving speed (with/without load) | 6/14km/h |
| 17 | Max towing | 10KN | |
| 18 | Gradeability (with load) | 40% | |
| 19 | Min under clearance | 185mm | |
| 20 | Total weight | 3100kg | |
| Engine | 21 | Engine model | china III engine 4C6-88C31 |
| 22 | Power | 65KW | |
| 23 | Rated speed | 2200rpm | |
| Wheel | 24 | front tread | 1245mm |
| 25 | rear tread | 1175mm | |
| 26 | front tyre | 10-16.5 | |
| 27 | rear tyre | 27*10-12 | |
| 28 | tyre numbers | 4 | |
| 29 | tyre | tubless tyre | |
