Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SHHD
-
Model Number:
-

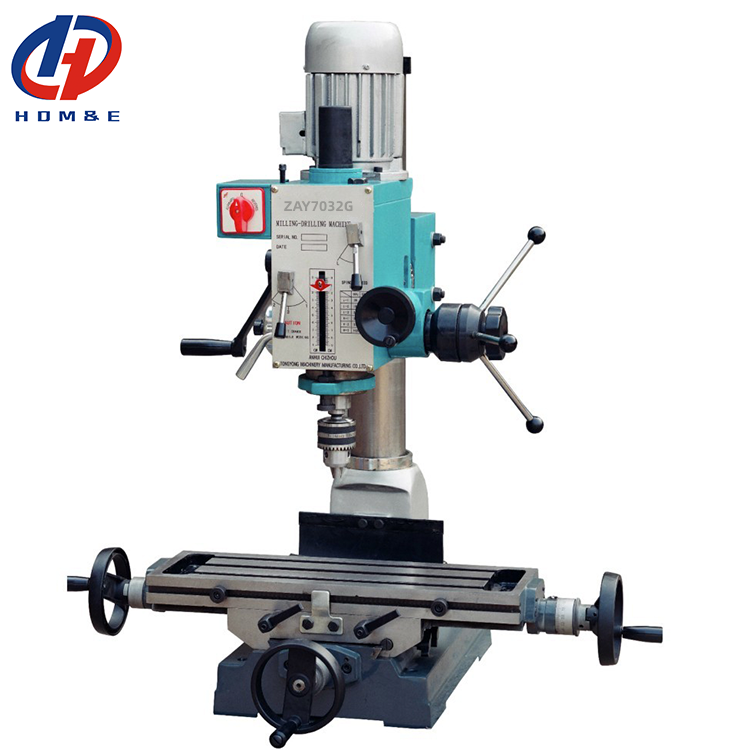

ZAY7032G
-
Voltage:
-
380
-
Dimension(L*W*H):
-
770*880*11600mm
-
Power (kW):
-
0.75
-
Weight (KG):
-
315 KG
-
Drilling capacity:
-
32mm
-
Face miiling capacity:
-
63mm
-
End milling capacity:
-
20mm
-
Distance from spindle nose to table:
-
440mm
-
Spindle travel:
-
130mm
-
Spindle taper:
-
M.T.3 or R8
-
Table size:
-
800*240mm
-
Motor power:
-
0.75kw
-
Net weight/Gross weight:
-
315kgs/365kgs
-
Packing size(L*W*H):
-
770*880*1160mm
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
32
-
Range of Spindle Speed(r.p.m):
-
80 - 1250 r.p.m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SHHD
-
Model Number:
-
ZAY7032G
-
Voltage:
-
380
-
Dimension(L*W*H):
-
770*880*11600mm
-
Power (kW):
-
0.75
-
Weight (KG):
-
315 KG
-
Drilling capacity:
-
32mm
-
Face miiling capacity:
-
63mm
-
End milling capacity:
-
20mm
-
Distance from spindle nose to table:
-
440mm
-
Spindle travel:
-
130mm
-
Spindle taper:
-
M.T.3 or R8
-
Table size:
-
800*240mm
-
Motor power:
-
0.75kw
-
Net weight/Gross weight:
-
315kgs/365kgs
-
Packing size(L*W*H):
-
770*880*1160mm
Product Description
Name: Auto-feeding Name: Auto-feeding
Spindle speed step-changed cyclically and spindle auto-feeding and cyclic changed of feeding speed.
Adjustable gibs on table precision .
Adjustable gibs on table precision .
Name: Motor
Motor power:0.75KW
We also can provide you SIEMENS brand motor for special request.
We also can provide you SIEMENS brand motor for special request.
Name: Worktable
Adjustable gibs on table precision.
Product Features
1. Gear-driven and round column
2. Milling,drilling,tapping,boring and reaming
3. Headstock swivels ±360° Vertically
4. Mirco feed precision
5. Adjusable gibs on table precision
6 .Strong rigidity ,powerful cutting and precisely positioning
2. Milling,drilling,tapping,boring and reaming
3. Headstock swivels ±360° Vertically
4. Mirco feed precision
5. Adjusable gibs on table precision
6 .Strong rigidity ,powerful cutting and precisely positioning
Product Paramenters
|
Model
|
ZAY7020G
|
ZAY7032G
|
ZAY7040G
|
ZAY7045G
|
||
|
Drilling capacity
|
Φ20mm
|
Φ32mm
|
Φ40mm
|
Φ45mm
|
||
|
Face milling capacity
|
Φ63mm
|
Φ63mm
|
Φ80mm
|
Φ80mm
|
||
|
End milling capacity
|
Φ20mm
|
Φ20mm
|
Φ32mm
|
Φ32mm
|
||
|
Distance from spindle nose to table
|
439mm
|
440mm（optional:670mm)
|
|
|
||
|
Min.distance from spindle axis to column
|
197.5mm
|
272.5mm
|
|
|
||
|
Spindle travel
|
80mm
|
130mm
|
|
|
||
|
Spindle taper
|
M.T.3 or R8
|
M.T.3 or R8
|
M.T.4 or R8
|
M.T.4 or R8
|
||
|
Step of spindle speed
|
6
|
6
|
|
|
||
|
Range of spindle speed 50Hz
|
95-1420r.p.m
|
80-1250r.p.m
|
|
|
||
|
60Hz
|
115-1700r.p.m
|
95-1500r.p.m
|
|
|
||
|
Swivel angle of headstock(vertically)
|
360°
|
360°
|
|
|
||
|
Perpendicularly
|
±90°
|
±90°
|
|
|
||
|
Table size
|
520*160mm
|
800*240mm
|
|
|
||
|
Forward and backward travel of table
|
140mm
|
175mm
|
|
|
||
|
Left and right travel of table
|
290mm
|
500mm
|
|
|
||
|
Motor Power
|
0.37KW
|
0.75KW
|
1.1KW
|
1.5KW
|
||
|
Net weight/Gross weight
|
130kgs/190kgs
|
315kgs/365kgs
|
|
318kgs/368kgs
|
||
|
Packing size(L*W*H)
|
680*750*1000mm
|
770*880*1160mm
|
|
|
||
|
Loading amount/20''container
|
48pcs
|
36pcs
|
|
|
||
Standard Accs
1.Allen wrench
2.Wedge
3.Tie rod
