Quick Details
-
Brand Name:
-
Meixin
-
Voltage:
-
220-380V
-
Power:
-
1000W
-
Dimension(L*W*H):
-
2.5M*1.4M*1.98M
-
Weight:
-
1000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Control System:
-
PLC(ADTECH CNC Control System)
-
Driving Motor:
-
Panasonic servo Motor
-
Brake motor:
-
Italy Brake Motor
-
Driving screw:
-
TBI Precision Ball Screw
-
Stepless speed:
-
Delta Inverter
-
Fiber box:
-
Double Colour Box
-
Tufting Method:
-
Staple or anchor wire
-
Function:
-
make brush and brooms
-
Certification:
-
Patent Certificate
Quick Details
-
Application:
-
Makng Brush
-
Production Capacity:
-
2000 Pieces/10 Hours
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Meixin
-
Voltage:
-
220-380V
-
Power:
-
1000W
-
Dimension(L*W*H):
-
2.5M*1.4M*1.98M
-
Weight:
-
1000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Control System:
-
PLC(ADTECH CNC Control System)
-
Driving Motor:
-
Panasonic servo Motor
-
Brake motor:
-
Italy Brake Motor
-
Driving screw:
-
TBI Precision Ball Screw
-
Stepless speed:
-
Delta Inverter
-
Fiber box:
-
Double Colour Box
-
Tufting Method:
-
Staple or anchor wire
-
Function:
-
make brush and brooms
-
Certification:
-
Patent Certificate
Product Application

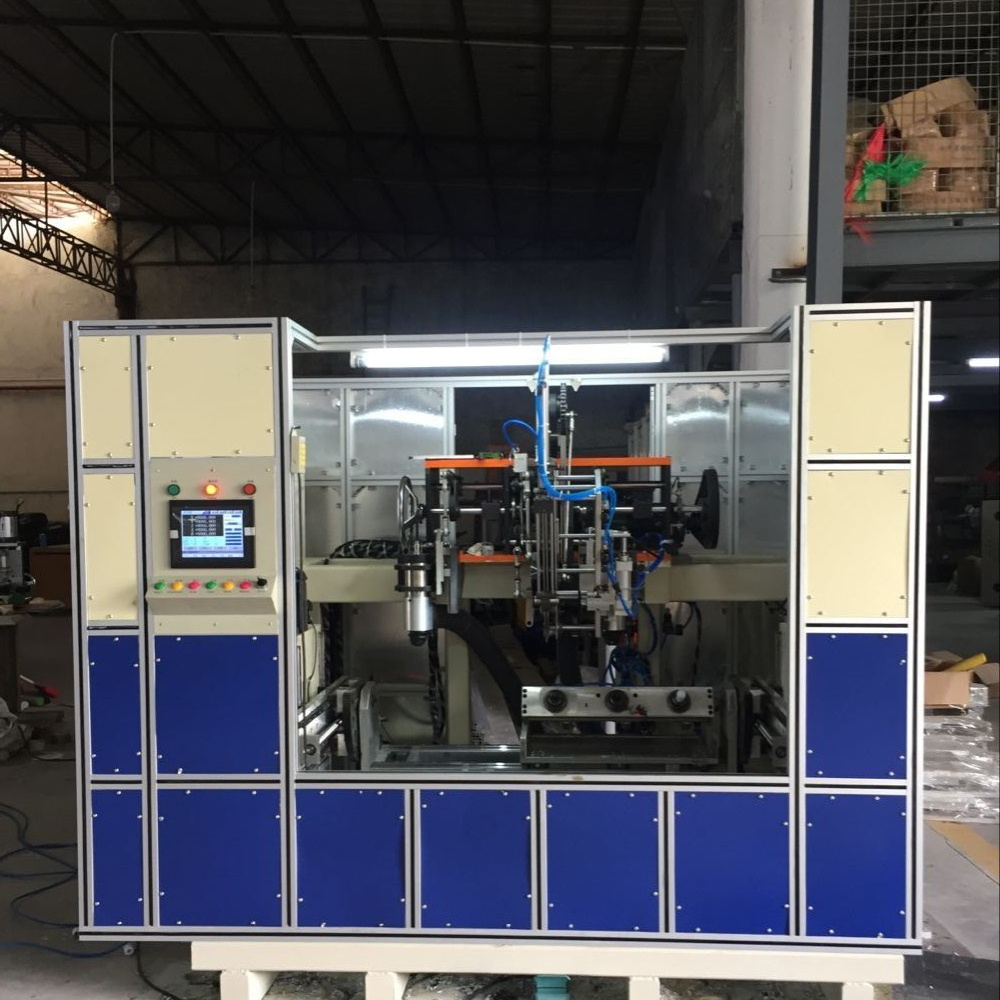

5 axis Automatic broom drilling and tufting machine MX 192, its use to make the single hockey brush and double hockey brush ,its hot sales in india ,paskitan,and so on.
|
SPECIFICATIONS FOR 5 AXIS DOUBLE HOCKEY BRUSH MACHINE
|
|
|
|
|||
|
TRAVEL OF AXIS
|
X AXIS
|
MM
|
250
|
|||
|
|
Y AXIS
|
MM
|
200
|
|||
|
|
Z AXIS
|
DEGREE
|
100°
|
|||
|
|
B AIXS
|
DEGREE
|
360°
|
|||
|
|
A AXIS
|
MM
|
200
|
|||
|
Main performance parameters
|
DIA OF HOLES
|
MM
|
4-7
|
|||
|
|
LENGTH OF FILAMENT
|
MM
|
30-120
|
|||
|
|
DIA OF FILAMENT
|
MM
|
0.25-1
|
|||
|
|
FIBER BOX
|
2 FIBER BOX
|
|
|||
|
|
MATERIAL OF FILAMENT
|
PP,PET,NYLON,SO ON
|
|
|||
|
|
TUFTING METHED
|
ROUND WIRE/STYPE WIRE
|
FLAT WIRE/ANCHOR WIRE
|
|||
|
|
PRODUCTIVITY
|
2000PCS/10HOURS
|
|
|||
|
|
SPEED
|
HOLES/SEC
|
5-8
|
|||
|
Controller system
|
PLC
|
INCH
|
6.5
|
|||
|
|
VOLTAGE
|
V
|
220 OR 380
|
|||
|
|
POWER
|
W
|
1000
|
|||
Main Features
1) FMX fixture allows fast change over for a new brush tufted production. This machine with 3 grippers
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Independent 5aix motion ,suitable for any wooden or plastic brush handles tufting.
4) Running in a high automatization and intellectualization,no pollution
5)Stable and low noise.
6)long life ,brush machine be sure confirm 100 % before shipment.
