Quick Details
-
Usage:
-
Cargo transportation
-
Production:
-
OEM factory
-
Motor power:
-
550w
-
Motor type:
-
Brushless
-
Rear axle:
-
Seperate rear axle
-
Front tire:
-
3.0-10 inch
-
Rear tire:
-
3.0-10 inch
-
Packing method:
-
CKD/SKD/CBU
-
Speed:
-
30km/h
-
Color:
-
Red, gray
Quick Details
-
Power:
-
> 800W
-
Voltage:
-
60V
-
Place of Origin:
-
Guangdong, China
-
Usage:
-
Cargo transportation
-
Production:
-
OEM factory
-
Motor power:
-
550w
-
Motor type:
-
Brushless
-
Rear axle:
-
Seperate rear axle
-
Front tire:
-
3.0-10 inch
-
Rear tire:
-
3.0-10 inch
-
Packing method:
-
CKD/SKD/CBU
-
Speed:
-
30km/h
-
Color:
-
Red, gray

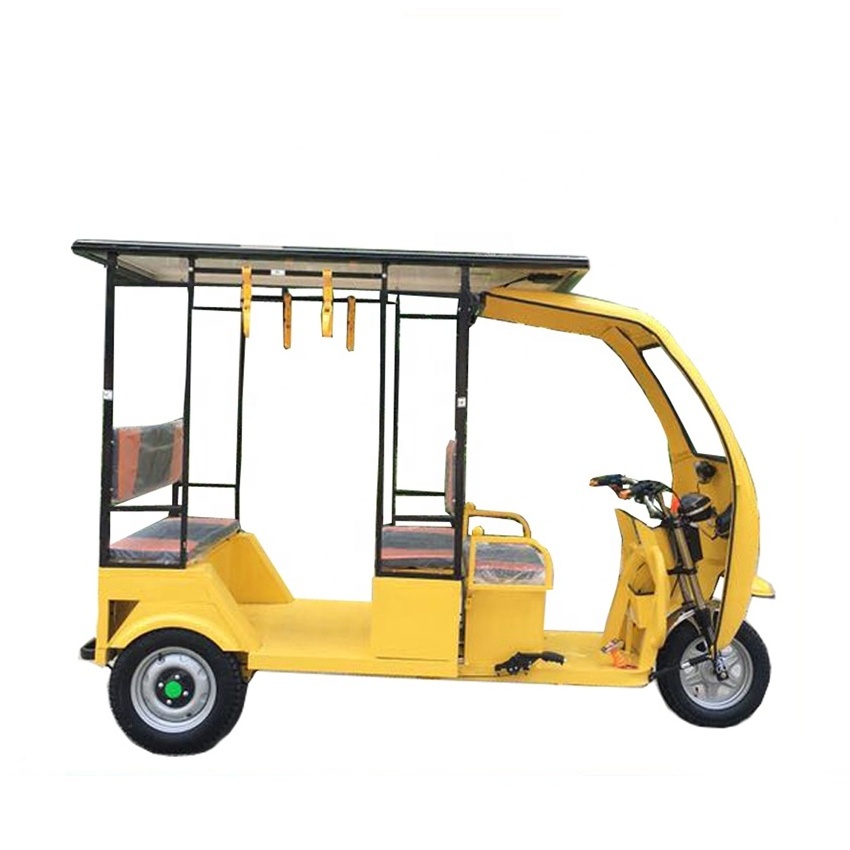

Hot sale tree-wheeler electric bicycle 2 seat mobility scooter three wheel auto rickshaw for sale
1.Product Desciption
2. Major Technical Parameters of the Electric Tricycle
| Product: | Electric Tricycle |
|
Category
|
Tricycle |
| Usage | Passenger Transporttation |
| Brand name | Kavaki Motor |
| Model | KV-QJF |
| Carriage size(L*W) | 1960*800*1030mm |
|
Controller
|
Brushless controller |
| Motor Pawer | 550W |
| Voltage | 48V20Ah |
| Battery Number | 4 units |
| Rear axle | Seperate rear axle |
| Front tyre | 3.0-10 |
| Rear tyre | 3.0-10 |
| Speed |
30km/h
|
| Loading capacity | 400kg |
| Headlight | LED |
| Charge time | 6-7h |
| Battery operating time | 1 year |
| Charger operating time | 1 year |
| Controller operating time | 1.5 year |
| Color for Choice | Red, gray |
3.Parts of the electric tricycle
4.The changeable Components
| Voltage | 48V20Ah, 60V20Ah |
| Motor power | 650W, 900W,1000W |
| Carriage | 1300*900mm, 1500*1000mm, 1600*1100mm |
| Rear axle | Complete rear axle, seperate rear axle, reverse rear axle |
| Front shock absorber | 31mm hydraulic model, 37mm hydraulic model |
| Steel spring | 4 layer, 5 layer |
Moto Driving Type Tricycle Available for Selection
Introduction of Motorized Components
| (1) Front wheel assembly | (2) Front shock absorber | (3) Front fender |
| (4) Front reflector | (5) Front turn signal | (6) Head lamp |
| (7) Combined instruments | (8) Rearview mirror | (9) Left/Right handlebar |
| (10) Fuel tank | (11) Seat cushion | (12) Cargo container |
| (13) Laminated springs | (14) Rear wheel assembly | (15) Exhaust muffler |
| (16) Starting lever | (17) Vehicle frame | (18) Engine |
| (19) Rear braking pedal | (20) Air cleaner |
Changeable Configuration to Meet Your Need
(1) Different configuration, price may be changed.
| Engine: |
Air-cooled: 150cc, 175cc, 200cc, 250cc
Water cooled Engine :150cc, 175cc, 200cc, 250cc |
| Cargo Box: |
1. Size: 1.1*1.6m; 1.1*1.7m; 1.1*1.8m; 1.2*1.6m; 1.2*1.7m; 1.2*1.8m; 1.2*2.0m,etc.
2. Normal carriage; Higher carriage; Thickness carriage |
| Tyre Size: | 4.5-12, 4.5-12, 5.0-12,etc. |
| Quantity of Tyre: | 3 wheel/5 wheel |
| Bettery Type: | 12V9A, 12V12A |
| Rear Axle: | Normal rear axle, Auto rear axle ,Liquid-brake rear axle, Boosting rear axle etc. |
| Steel Spring: | 7 layers (18kg), 8 layers (20kg), 9 layers (22kg),1o layers (24kg), etc. |
| Front Shock Absorber |
43mm/50mm front shock absorber, front shock absorber with damper, double front shock absorber,etc. |
| Aditional Parts for Choice |
Spare tyre, Jack, Fan,Vertical absorber, MP3, Radio, Glasses fender,side seat, helmet, etc.
|
(2)Pictures of Optional Accessories for Reference
Notice:
| Accessories | Fountion |
| Normal Rear Axle | 1. use for flat road condition |
| 2. loading light goods | |
| Auto Rear Axle | 1. use for downslope condition |
| 2. loading heavier goods | |
| Boosting Rear Axle | 1. use for great climbing |
| 2. loading heavy goods | |
| Steel Spring | 1. more layer, more loading capacity |
| 2.usually ues 7-9 layer. if necessary, 10-12 layer are available. |
Packing Method & Delivery
1. Packing Method of 3 Wheel Motor Tricycle
| Packing Methods | CKD, Carton/Sack Packing |
| Container Loading | 18-24 PCS/20'GP, 48-60 PCS/40'HQ |
| Volume/Piece | One piece is about 1.5 CBM in CKD condition; Completeis about 5 CBM |
2.Packing1 piece of motor tricycle (CKD)
3. Loading tricycles
