Quick Details
-
Material:
-
PVDF
-
Tensile Strength:
-
10.4Mpa
-
Color:
-
Black,clear
-
Product name:
-
HEAT SHRINK TUBES
-
Certification:
-
ROHS
-
Usage:
-
Insulation Protection
-
Feature:
-
High Temperature Resistance
-
Sample:
-
Freely Supplied
-
Shrink ratio:
-
1.7:1 / 4:1
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
kehong
-
Model Number:
-
Kynar-175
-
Material:
-
PVDF
-
Tensile Strength:
-
10.4Mpa
-
Color:
-
Black,clear
-
Product name:
-
HEAT SHRINK TUBES
-
Certification:
-
ROHS
-
Usage:
-
Insulation Protection
-
Feature:
-
High Temperature Resistance
-
Sample:
-
Freely Supplied
-
Shrink ratio:
-
1.7:1 / 4:1

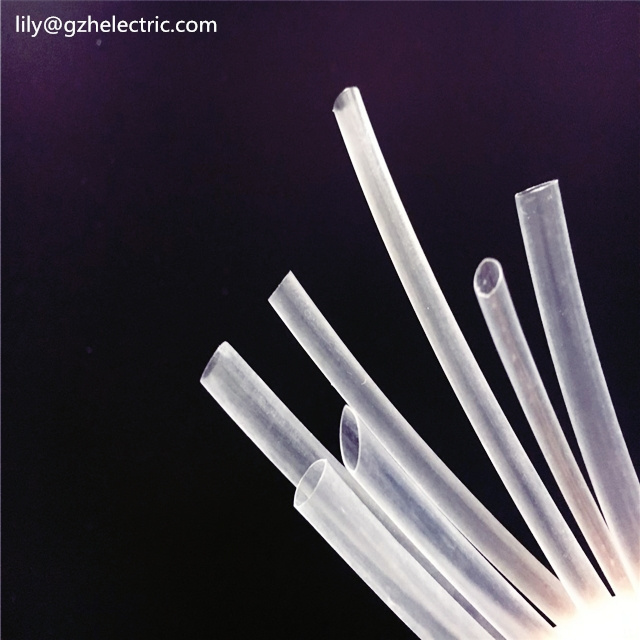

high temperature heat shrinkable protection sleeve
Kynar-175
High-temperature, semi-rigid, PVDF tubing
1) Application
Kynar-175, is semi-rigid, excellent flame retardant, cut-through resistance, chemical and solvent resistance and high-temperature performance. It is especially suitable for applications requiring high-temperature performance. It is also used for insulation and strain relief of soldered joints, identification and inspection of covered components.
2) Features/Benefits
Shrink ratio: 2:1.
Tough, semi-rigid, thin-wall insulation.
High flame-resistance; high-temperature performance.
Outstanding chemical and solvent resistance.
Conform to European RoHS ( 2002/95/EC ) environmental directive.
3) Operating Temperature Range
Operating temperature range: -55 ℃ ~175 ℃
Minimum shrink temperature: 155 ℃
Minimum full recovery temperature: 175 ℃
4) Specifications/Standards
UL224,UL Approval, 150 ℃ 600V VW-1
AMS-DTL-23053/8
5) Specification values
| Property | Requirement | Test method | Typical value | |
| Physical: | Tensile strength | 34.5MPa min. | ASTM D 638 | ≥35MPa |
| Elongation | 150% min. | ASTM D 638 | ≥200% | |
| Heat shock | No cracking, dripping or flowing | ASTM D 2671 | Pass | |
| 300℃, 4hrs | ||||
| Low temperature flexibility | No cracking | ASTM D 2671 | Pass | |
| -55℃, 4hrs | ||||
| Aging 250℃,168hrs | ||||
| Elongation after aging | 50% | ASTM D 638 | ≥50% | |
| Electrical: | Dielectric voltage withstand | 2500V,60sec, | ASTM D 2671 | Pass |
| no breakdown | ||||
| Volume resistivity | 1013Ω·cm min. | ASTM D 876 | ≥1013Ω·cm | |
| Chemical: | Corrosion | No corrosion | ASTM D 2671 | Pass |
| Flammability | VW-1 | UL224 | Pass |
6)Product
| Size | Inside diameter | Wall thickness | Standard length | |
| As supplied (min.) | After recovery (max.) | After recovery | ||
| 3/64. | 1.2(0.046) | 0.6(0.023) | 0.25±0.05(0.010±0.002) | 1.2 |
| 1/16. | 1.6(0.063) | 0.8(0.031) | 0.25±0.05(0.010±0.002) | 1.2 |
| 3/32. | 2.4(0.093) | 1.2(0.046) | 0.25±0.05(0.010±0.002) | 1.2 |
| 1/8. | 3.2(0.125) | 1.6(0.063) | 0.25±0.05(0.010±0.002) | 1.2 |
| 3/16. | 4.8(0.187) | 2.4(0.093) | 0.25±0.05(0.010±0.002) | 1.2 |
| 1/4. | 6.4(0.250) | 3.2(0.125) | 0.30±0.08(0.012±0.003) | 1.2 |
| 3/8. | 9.5(0.375) | 4.8(0.187) | 0.30±0.08(0.012±0.003) | 1.2 |
| 1/2. | 12.7(0.500) | 6.4(0.250) | 0.30±0.08(0.012±0.003) | 1.2 |
| 3/4. | 19.1(0.750) | 9.5(0.375) | 0.43±0.08(0.017±0.003) | 1.2 |
| 1 | 25.4(1.000) | 12.7(0.500) | 0.48±0.08(0.019±0.003) | 1.2 |
| 1 1/2. | 38.1(1.500) | 19.1(0.750) | 0.51±0.08(0.020±0.003) | 1.2 |
| 2 | 50.8(2.000) | 25.4(1.000) | 0.58±0.08(0.023±0.003) | 1.2 |
7) Ordering information
Color
Standard: clear (-CL)
Nonstandard colors can be available upon request.
Nonstandard size
Nonstandard sizes are available upon request.
Standard packaging
1.2m /length
Ordering description
Specify product type, size (mm or inch) and color.
