Quick Details
-
Filling Accuracy:
-
<=1g
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HAIXINGDA
-
Dimension(L*W*H):
-
18*18*12cm
-
Weight:
-
2 KG
-
Capacity:
-
500g
-
Suitable for:
-
High Viscous Products
-
Max Flow Rate:
-
3.5L/min
-
Error Rate:
-
<=1g
-
Pump Type:
-
Peristaltic Pump
-
Tube Material:
-
Silica Gel
-
Package:
-
wooden case
-
Suitable bottle:
-
Square Shaped Bottle
-
Marketing Type:
-
Hot Product 2023
Quick Details
-
Machinery Capacity:
-
500g
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
<=1g
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HAIXINGDA
-
Dimension(L*W*H):
-
18*18*12cm
-
Weight:
-
2 KG
-
Capacity:
-
500g
-
Suitable for:
-
High Viscous Products
-
Max Flow Rate:
-
3.5L/min
-
Error Rate:
-
<=1g
-
Pump Type:
-
Peristaltic Pump
-
Tube Material:
-
Silica Gel
-
Package:
-
wooden case
-
Suitable bottle:
-
Square Shaped Bottle
-
Marketing Type:
-
Hot Product 2023
Products Description

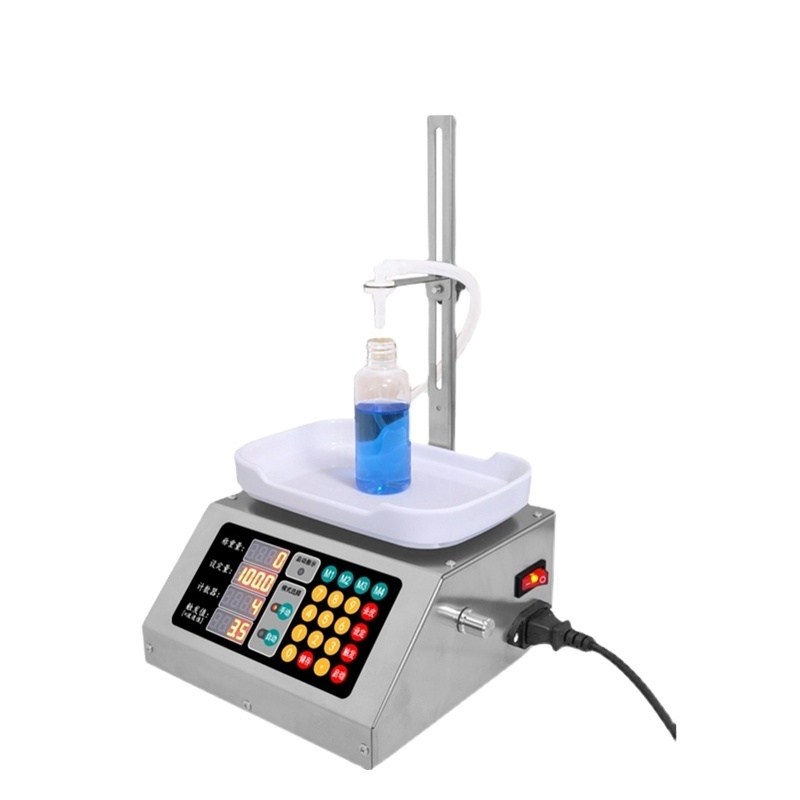

Filling Machine Application：
This Liquid Filling Machine can fill ,oil, juice, perfume, ink, water, etc for all containers such as bottles, jars,cans,etc.Widely used in cosmetic, drinks, chemical, medical, food industry etc, which can highly improve productivity and product quality. Apply for oil, washing liquid, acid liquid, liquid filling high etching solution , highly corrosive
Machine Parameter
|
Model
|
JY-M90
|
JY-1200
|
JY-3200
|
JY-3500
|
JY-L13
|
JY-L17
|
JY-L36
|
|
Recommend Filling Range
|
0.5-10g
|
2-300g
|
8-1000g
|
10-1000g
|
0.02-5kg
|
0.03-10kg
|
0.05-30kg
|
|
Max. weight capacity
|
500g
|
800g
|
3kg
|
3kg
|
8kg
|
15kg
|
30kg
|
|
Division Value
|
0.1g
|
0.5g
|
1g
|
1g
|
2g
|
5g
|
5g
|
|
Pump Type
|
Peristaltic Pump
|
Peristaltic Pump
|
Diaphragm Pump
|
Peristaltic Pump
|
Peristaltic Pump
|
Diaphragm Pump
|
Diaphragm Pump
|
|
Max Flow Rate
|
90mL/min
|
1.2L/min
|
3.2L/min
|
3.5L/min
|
13L/min
|
17L/min
|
36L.min
|
|
Error Rate
|
<=0.1g
|
<=0.2-0.5g
|
<=1g
|
<=1g
|
<=2g
|
<=2-5g
|
<=5g
|
|
Height of Holder
|
0-20cm
|
0-20cm
|
0-32cm
|
0-32cm
|
0-40cm
|
0-40cm
|
0-40cm
|
|
Tube Material
|
Silica Gel
|
Silica Gel
|
Silica Gel
|
Silica Gel
|
Silica Gel
|
PVC steel
|
PVC steel
|
|
Size of Tube
|
3*5mm
|
6*9mm
|
7*10mm
|
9.6*14.6mm
|
12.7*19.7mm
|
19*25mm
|
25*31cm
|
|
Length of Tube
|
1.3m
|
1.5m
|
2m
|
2m
|
2m
|
2m
|
2m
|
|
Product size
(cm) |
18*18*12
|
18*18*12
|
18*18*12
|
21*21*12
|
26*26*23
|
26*26*15
|
26*26*15
|
|
Packing
(cm) |
35*23*19
|
35*23*19
|
35*23*19
|
35*23*19
|
35*35*35
|
35*35*35
|
35*35*35
|
|
G.W.
|
2kg
|
2.5kg
|
2.7kg
|
3kg
|
12.5kg
|
8.8kg
|
13kg
|
|
Rated power
|
10W
|
20W
|
30W
|
40W
|
150W
|
200W
|
300W
|
Applicable requirements for weighing and quantitative filling machine:
1. The container to be filled must be a bottle that can stand upright, and the mouth of the bottle should not be too small to be abag. The liquid that can be filled must be: pure liquid, no impurities, and no viscosity.
②Paste, honey, diesel oil, motor oil,kerosene and gasoline are not applicable.
③The filling volume can be set: 5g-3kg, the division value is 1g. [For water: 1g (gram)= 1mL (ml)]
2.Small Automatic CNC Liquid Filling Machine Perfume Weighing Filling Machine Oral Liquid Solution Filler US plug
3.Semi Automatic Juice oil perfume Digital Pump Viscous liquid filling machine
3.Semi Automatic Juice oil perfume Digital Pump Viscous liquid filling machine
4.Small Investment And High Profits Glass Bottle Orange Juice Filling Machine
5.Hot sale commercial or industrial small scale bottle filling machine
Packing & Delivery
Packing：
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
