Quick Details
-
Model Number:
-
CZ-8168N
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-20~+70℃ (With no icing)
-
Max. Current:
-
10A
-
Name:
-

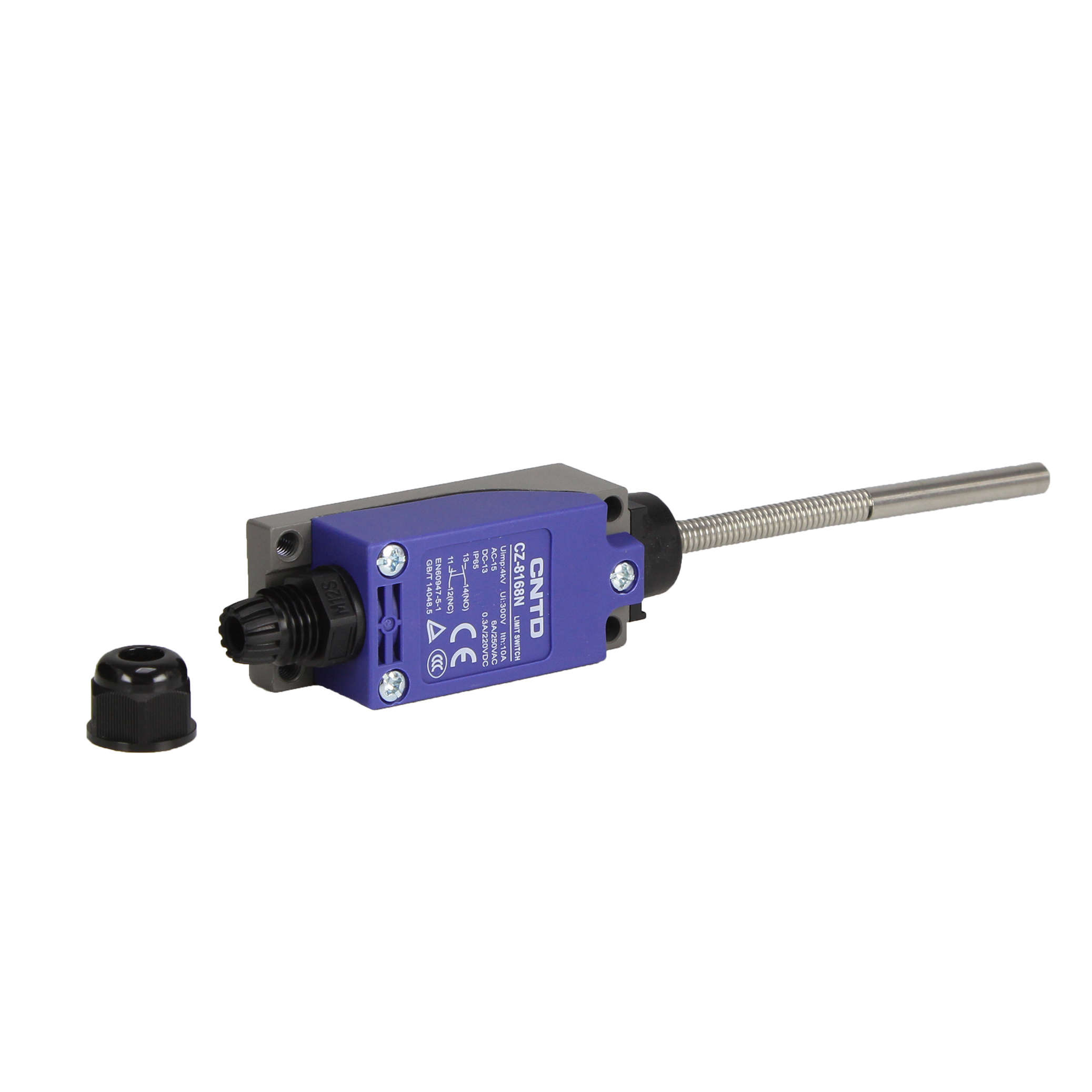

Limit Switch
-
Operation Speed:
-
5mm-0.5m/s
-
Operating Frequency:
-
Electical: 30 operations/min
-
Contact Resistance:
-
25mΩ max. (initial value)
-
Insulation Resistance:
-
100mΩ min. (below 500VDC)
-
Vibration:
-
10~55Hz,1.5mm double amplitude
-
Humidity:
-
<95%RH
-
Electrical Life:
-
500,000 operations above
-
Inrush Current:
-
N.C:below 24A, N.O:below 12A
-
Certification:
-
TUV, ISO9001, CCC, CE
Quick Details
-
Max. Voltage:
-
380VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNTD
-
Model Number:
-
CZ-8168N
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-20~+70℃ (With no icing)
-
Max. Current:
-
10A
-
Name:
-
Limit Switch
-
Operation Speed:
-
5mm-0.5m/s
-
Operating Frequency:
-
Electical: 30 operations/min
-
Contact Resistance:
-
25mΩ max. (initial value)
-
Insulation Resistance:
-
100mΩ min. (below 500VDC)
-
Vibration:
-
10~55Hz,1.5mm double amplitude
-
Humidity:
-
<95%RH
-
Electrical Life:
-
500,000 operations above
-
Inrush Current:
-
N.C:below 24A, N.O:below 12A
-
Certification:
-
TUV, ISO9001, CCC, CE
Features
Double circuit type of limit switch
High mechanical strength, consists of intensive plastic and aluminum cast
Water-proof and oil-proof construction
Built-in contact box has double-spring and long mechanical life
Smooth operation with larger over travel distance
Various actuators for different application
Ratings
|
Rated Voltage
|
Noninductive Load (A)
|
|
|
|
Inductive Load (A)
|
|
|
|
|||||||
|
|
Resistance Load
|
|
Lamp Load
|
|
Inductive Load
|
|
Motor Load
|
|
|||||||
|
|
NC
|
NO
|
NC
|
NO
|
NC
|
NO
|
NC
|
NO
|
|||||||
|
125VAC
|
5
|
5
|
1.5
|
0.7
|
3
|
3
|
2
|
1
|
|||||||
|
250VAC
|
5
|
5
|
1
|
0.5
|
3
|
3
|
1.5
|
0.8
|
|||||||
|
8VDC
|
5
|
5
|
3
|
3
|
5
|
4
|
3
|
3
|
|||||||
|
14VDC
|
5
|
5
|
3
|
3
|
4
|
4
|
3
|
3
|
|||||||
|
30VDC
|
5
|
5
|
3
|
3
|
4
|
4
|
3
|
3
|
|||||||
|
125VDC
|
0.4
|
0.4
|
|
|
|
|
|
|
|||||||
|
250VDC
|
0.2
|
0.2
|
|
|
|
|
|
|
|||||||
|
Inrush Current
|
N.C: below 24A, N.O: below 12A
|
|
|
|
|
|
|
|
|||||||
Opereting Characteristics
|
Model
|
CZ-8 N
|
CZ-8104N
CZ-8105N
|
CZ-8108N
CZ-8109N
|
CZ-8107N
|
CZ-8111N
|
CZ-8112N
CZ-8122N
|
CZ-8166N/8167N/
8168N/8169N
|
|
Operating force
|
OF(Max.)
|
750g
|
750g
|
750g
|
900g
|
900g
|
150g
|
|
Release force
|
RF(Min.)
|
100g
|
100g
|
100g
|
150g
|
150g
|
-
|
|
Pre-travel
|
PT(Max.)
|
20°
|
20°
|
20°
|
1.5mm
|
1.5mm
|
30mm
|
|
Over travel
|
OT(Min.)
|
50°
|
50°
|
50°
|
4mm
|
4mm
|
-
|
|
Movement differential
|
MD(Max.)
|
12°
|
12°
|
12°
|
1mm
|
1mm
|
-
|
|
Operating position
|
OP(mm.)
|
-
|
-
|
-
|
26±0.8mm
|
37±0.8mm
|
-
|
NOTES:
1.Inductive load has a power factor of 0.4 min. (AC) and a time constant of 7 msec. max. (DC).
2.Lamp load has an inrush current of 10 times the steady-state current, while motor load has an inrush current of 6 times the steady-state current.
3.Product with spring, its usable range of operating part is within one third of whole spring length from the front end of spring.
