Quick Details
-
Capacity:
-
4-12 person
-
Type:
-
GRY-4,GRY-6,GRY-8,GRY-10,GRY-12
-
Certificate:
-
ISO9650-2
-
Color:
-
Red
-
Application:
-
life saving
-
Temperature inflating range:
-
: -30 to 65 degree
-
Style:
-
small craft life raft
-
Certification:
-
CCS/EC
-
Standard:
-
SOLAS Standard
-
Name:
-
CCS and CE Standard Inflatable leisure life raft for life saving
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
OEM
-
Model Number:
-
GRY
-
Capacity:
-
4-12 person
-
Type:
-
GRY-4,GRY-6,GRY-8,GRY-10,GRY-12
-
Certificate:
-
ISO9650-2
-
Color:
-
Red
-
Application:
-
life saving
-
Temperature inflating range:
-
: -30 to 65 degree
-
Style:
-
small craft life raft
-
Certification:
-
CCS/EC
-
Standard:
-
SOLAS Standard
-
Name:
-
CCS and CE Standard Inflatable leisure life raft for life saving

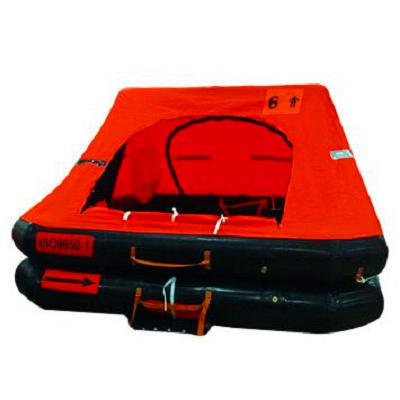

Rigid Type Life Raft Self Inflating life raft for life saving
Production Description:
Rigid Type Life Raft Self Inflating life raft for life saving
Rigid Type Life Raft Self Inflating life raft for life saving, can used on recreational boats and have been tested and certified according to ISO 9650-1 testing standard. This testing standard has been adopted by the most European Countries.
Rigid Type Life Raft Self Inflating life raft for life saving are available in 4 to 12 person versions, are fitted with a single floor as standard and are designed to be extremely safe. The ISO RAFT combines, compact size and structural integrity with proven life raft design. The ISO RAFT is automatically inflated by a 12-meter painter line and its inflation system provides enough gas to inflate all the buoyancy chambers. The main body of the life raft consists of two buoyant chambers inflated through a non return valve ensuring the flotation of the life raft.
|
Type |
GRY -4 |
GR Y-6 |
GRY -8 |
GRY -10 |
GRY -12 |
|
|
Physical form |
octagon |
|||||
|
Length and width, mm,±1000 |
1700 |
1990 |
2255 |
2490 |
2730 |
|
|
Height, mm, ±50 |
1200 |
1250 |
1400 |
1400 |
1400 |
|
|
Cylinder Types(L)×number |
3×1 |
5×1 |
5×1 |
6×1 |
7×1 |
|
|
Gas volume of cylinder, g |
CO2,±500 |
1500 |
2100 |
2700 |
3300 |
3700 |
|
N2,±200 |
150 |
210 |
180 |
240 |
370 |
|
|
Dimension, mm |
Valise bag |
O.D.360×710 |
O.D.410×710 |
O.D. 410×710 |
O.D. 410×820 |
O.D. 440×870 |
|
Container |
760×485×320 |
760×525×330 |
760×540×350 |
810×565×355 |
915×565×350 |
|
|
Weight less than≤, kg |
Container |
41 |
49 |
54 |
58 |
65 |
|
Valise bag |
35 |
41 |
45 |
49 |
/ |
|
