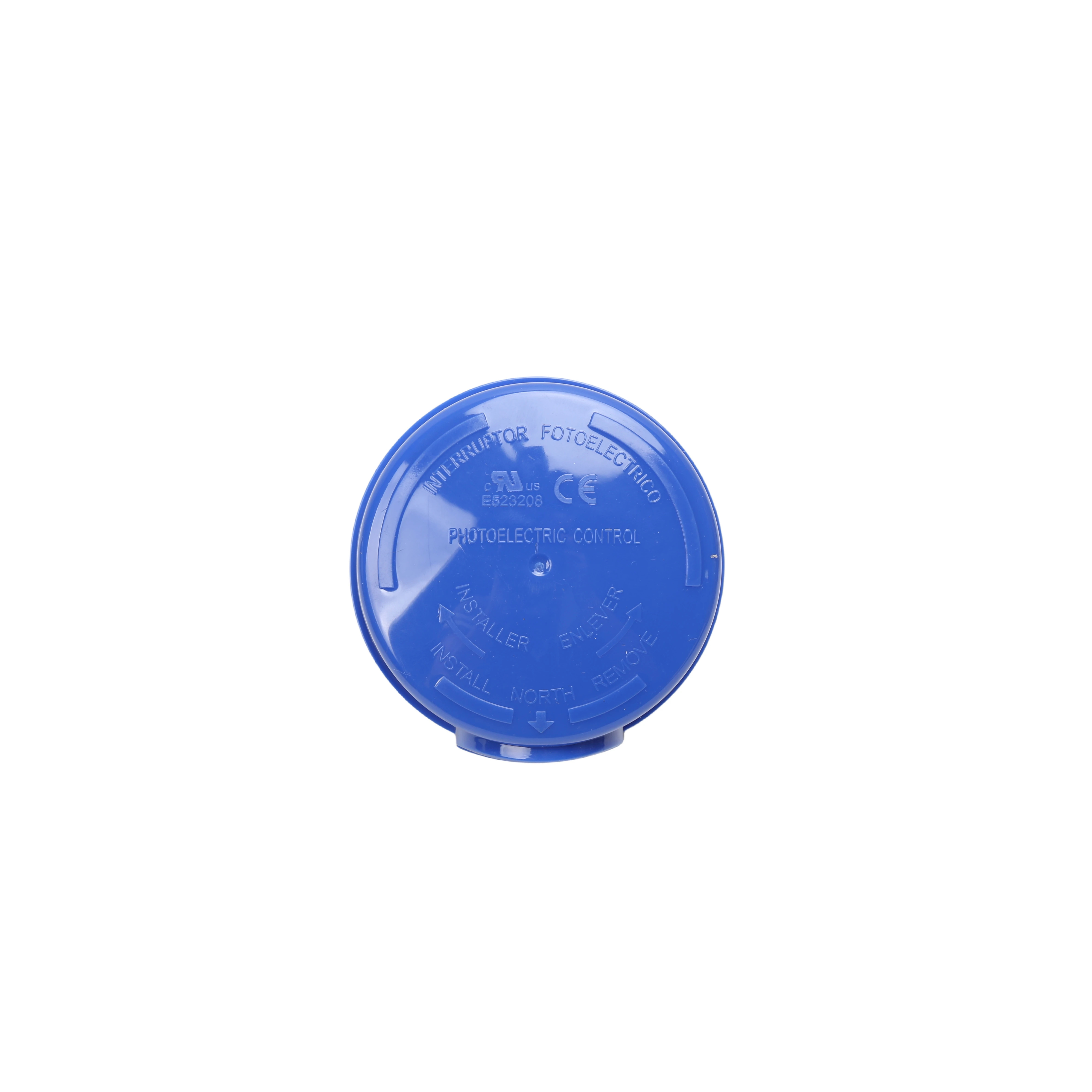

Remote Photocontrol Photo Electric Sensor Switch LED Street Light ANCI C136.41 Dimming Photocontrol Switch

Remote Photocontrol Photo Electric Sensor Switch LED Street Light ANCI C136.41 Dimming Photocontrol Switch

FOB Reference Price: Get Latest Price

≥100 Pieces

US $2.3

≥1000 Pieces

US $2.25

≥10000 Pieces

US $2.15

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product Name:: NEMA Photo control

Rated voltage:: 100-277Vac,50/60Hz

Rated load:: 1200W @ 277Vac

Color:: Black

Switch delay:: 3-15 Seconds

Electrical Life:: >10000 Times

Starting Brightness:: 16Lx±5

Housing Material:: UC/PV Resistant

Size:: 80mm*57.5mm

Relative Humidity:: 5%~95%

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Zhongyuan ZYS

Model Number:: ZYS-02L

Product Name:: NEMA Photo control

Rated voltage:: 100-277Vac,50/60Hz

Rated load:: 1200W @ 277Vac

Color:: Black

Switch delay:: 3-15 Seconds

Electrical Life:: >10000 Times

Starting Brightness:: 16Lx±5

Housing Material:: UC/PV Resistant

Size:: 80mm*57.5mm

Relative Humidity:: 5%~95%

Product Description

Overview

ZYS-02L photocontrol is a lighting switch control device comply with UL773 and ANSIC136.41 standard,twist-locked installed in street lamp, courtyard lamp and other lighting lamps for automatic switch control. This type of photo control can detect the
ambient brightness to control the switch function of lamps. Wide voltage input, widely used in power grid standards around the
world. In addition, it has different switching brightness threshold and delay characteristics, which can avoid the influence
caused by lights or lightning at night.
* Comply with UL773 & ANSI C136.41-2013
* Fireproof and UV resistant, suitable for various outdoor lamps and lanterns
* Convenient / reliable / durable twist-lock connection
* Different switch brightness thresholds, delay trigger, reliable and stable
* Built-in lightning protection devices to effectively protect against surge interference

Product Paramenters

Features

* Comply with UL773 & ANSI C136.41-2013
* Fireproof and UV resistant, suitable for various outdoor lamps and lanterns
* Convenient / reliable / durable twist-lock connection
* Different switch brightness thresholds, delay trigger, reliable and stable
* Built-in lightning protection devices to effectively protect against surge interference

Specification

Product Name	Photocontrol
Rated Voltage	100-277Vac,50/60Hz
Rated load	1200W @ 277Vac
Color	Blue
Operating Temperature	-40℃~80℃
Waterproof Grade	IP65
Working Frequency	50/60Hz
Housing Material	UC/PV Resistant
Size	Φ73.2mm*39.0mm
Relative Humidity	5%~95%
