Quick Details
-
Size:
-
14100*2500*4100mm
-
Place of Origin:
-
Shandong, China
-
suspensions:
-
rigid suspension
-
axle:
-
FUWA or BPW 3 alxe
-
Landing Gear:
-
Jost Dual-speed Landing Gear
-
Rated load capacity:
-
37T
-
braking system:
-
dual line with WABCO brake valve
-
Hydraulic pressure:
-
23Mpa
-
rims:
-
9.00-22.5 14pcs
-
TYRE:
-
12.00R25 14pcs
-
KING PIN:
-
90# 50#
-
ABS:
-
WEBCO optional
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
37000kgs-40000kgs
-
Brand Name:
-
AOTONG
-
Size:
-
14100*2500*4100mm
-
Place of Origin:
-
Shandong, China
-
suspensions:
-
rigid suspension
-
axle:
-
FUWA or BPW 3 alxe
-
Landing Gear:
-
Jost Dual-speed Landing Gear
-
Rated load capacity:
-
37T
-
braking system:
-
dual line with WABCO brake valve
-
Hydraulic pressure:
-
23Mpa
-
rims:
-
9.00-22.5 14pcs
-
TYRE:
-
12.00R25 14pcs
-
KING PIN:
-
90# 50#
-
ABS:
-
WEBCO optional
Product Description
Customize the semi trailer according to your requirements.Professional semi trailer manufacturer with more than 30 years of production experience serve for you
—
AOTONG
|

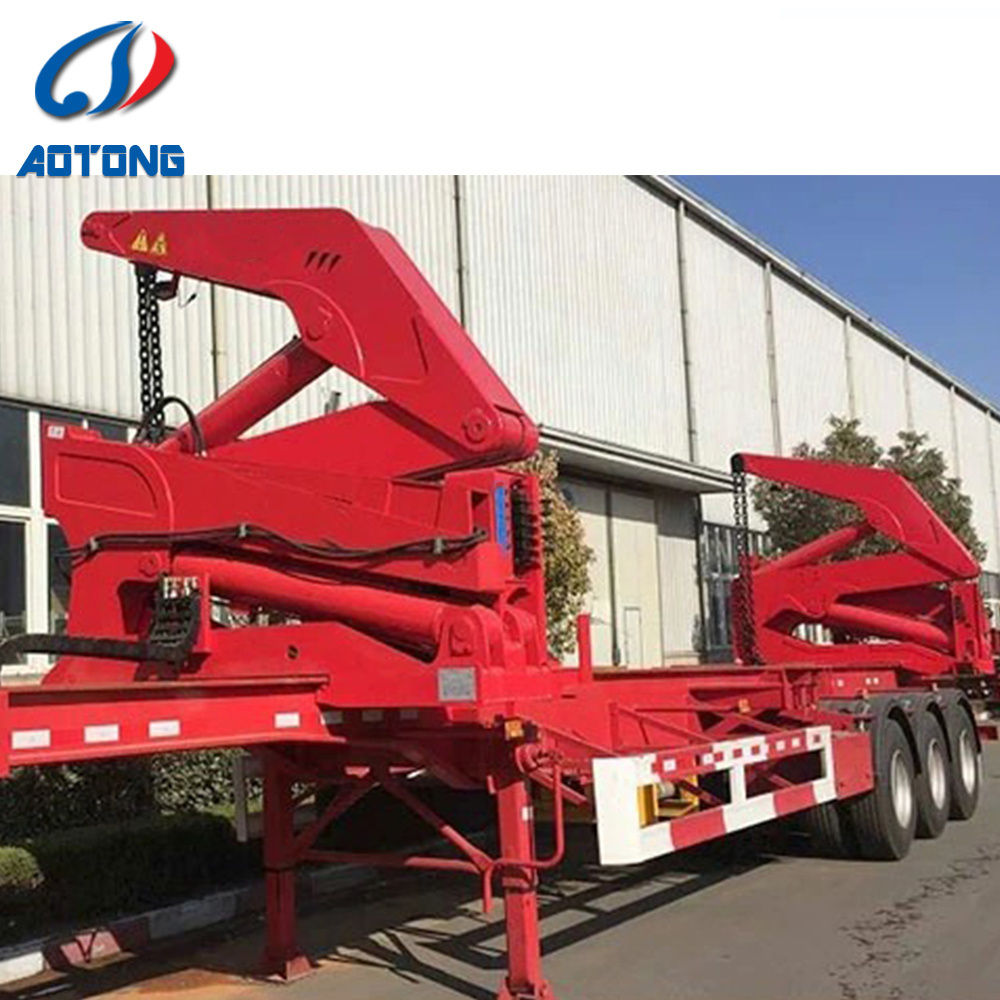

Container side loader trailer
|
|
|
|
Item
|
Parameters
|
|
|
Max. lifter capacity(kg)
|
37000
|
|
|
Max. working range(mm)
|
4000
|
|
|
Max. stabilizen outreach(mm)
|
3200
|
|
|
Curb mass(kg)
|
14500
|
|
|
Mass of side lifter(kg)
|
7250
|
|
|
Maximum grass mass(kg)
|
40000
|
|
|
Outline dimension of semi-trailer (L*W*T) (mm)
|
14100*2500*4000
|
|
|
Outline dimension of side lifter (L*W*T) (mm)
|
1020*2500*2490
|
|
|
Wheel base (mm)
|
8000+1350+1350
|
|
|
Track (front axle/rear axle) (mm)
|
1820/1820/1820
|
|
|
Front overhang/Rear overhang (mm)
|
-/2370
|
|
|
Approach angel/Departure angel (°)
|
-/13
|
|
|
Type
|
12R22.5Tubless type,12 sets
|
|
|
Axle
|
3*13tons axles
|
|
|
Voltage
|
12v
|
|
|
Model
|
Kubota V2403-M-DI-E3B-CSL-1
|
|
|
Power/rotation speed (KW/r/min)
|
36.5/2600
|
|
|
Emission standard
|
off-road,Euro
|
|
|
Color
|
Red/Yellow/Green/White/Black or customer choose
|
|
|
Appliancce
|
20FT/40FT container
|
|
AOTONG
c
ontainer side loader
trailer can satisfy the concentrated force, the anti bump and the distortion resistance.
AOTONG
make sure that
container side loader
semi trailer can meet load requirements on different kind of roads and has a long service life.
AOTONG
start from every detail, carefully craft to customize your high-quality semi trailer.
Excellent design ability
We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design！
Click for your own design！
Related Products
We also have rich production experience in the following models.
If this item is not what you like, then we suggest these items：
Click to get the models that have been shipped to your country！
Packing&Shipping
In nude,Polish with water wax before shipment
1. By 40ft/45ft/40fr container
2. By bulk /roro ship
3. As your requirments.
Professional package saves freight cost for you.
In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.
High quality painting and professional transportation ensure good condition of goods.
We believe that we can win-win by providing detailed services.
