Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
5.5
-
Place of Origin:
-
China
-
Brand Name:
-
Songli
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3500mm*2280mm*1450mm
-
Power (kW):
-
5.5
-
Weight (KG):
-
950
-
function:
-
carving cutting drilling
-
The power supply mode:
-
Alternating current (ac)
-
system:
-
Ncstudio
-
Operation instruction:
-
G code F/S command compatibility
-
Product material:
-
With thick plate
-
Maximum speed:
-
20M--min
-
Processing area:
-
1300mm*2500mm
-
The motor:
-
Stepper motor 450B/ hybrid servo motor
-
After-sales Service Provided:
-
Online support
Quick Details
-
Working Table Size(mm):
-
1300×2500
-

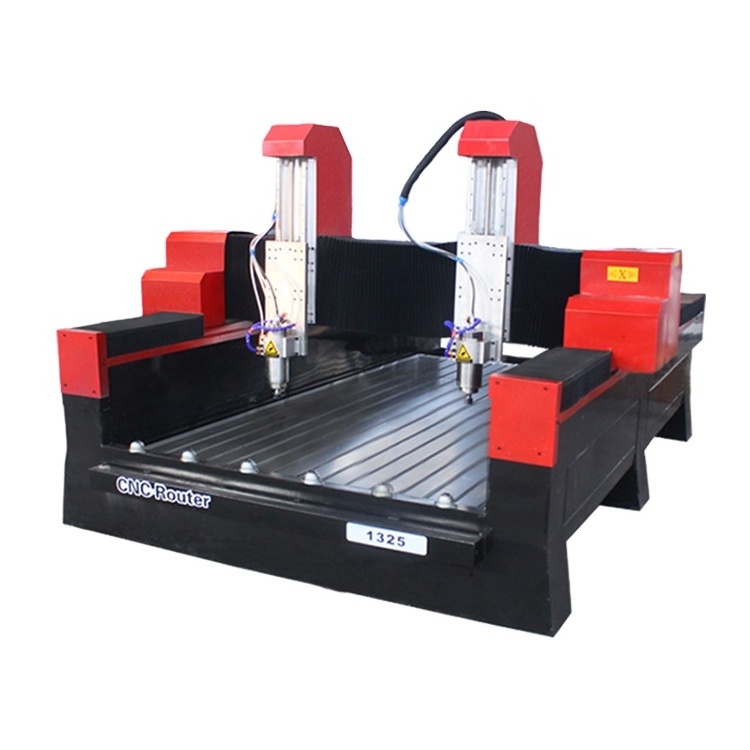

Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
5.5
-
Place of Origin:
-
China
-
Brand Name:
-
Songli
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3500mm*2280mm*1450mm
-
Power (kW):
-
5.5
-
Weight (KG):
-
950
-
function:
-
carving cutting drilling
-
The power supply mode:
-
Alternating current (ac)
-
system:
-
Ncstudio
-
Operation instruction:
-
G code F/S command compatibility
-
Product material:
-
With thick plate
-
Maximum speed:
-
20M--min
-
Processing area:
-
1300mm*2500mm
-
The motor:
-
Stepper motor 450B/ hybrid servo motor
-
After-sales Service Provided:
-
Online support
Adapt to industry:
This machine is suitable for the processing of diversified and complex products or various processing. It is widely used and can be carved and drilled. It is mainly used for cutting and routing.
Woodworking Industry:
This machine is suitable for coffins, longevity materials, wooden doors, relief carving, also can do three-dimensional wave plate processing, screen, art fan and window processing, computer desk and plate-type household products auxiliary processing.
Processing Jade, Marble, Granite, Artificial Stone, Tile, Glass, Aluminum, etc.
|
function |
Carve/cut/hollow out/emboss |
|
Apply to industry |
Jade/marble/granite/aluminum |
|
The machining accuracy |
± 0.01mm/1000mm |
|
The operating system |
Ncstudio |
|
Operation instruction |
G code F/S command compatibility |
|
Product material |
With thick plate |
|
Maximum speed |
20M--min
|
|
Processing area |
1300mm*2500mm |
|
The motor |
Stepper motor 450B / hybrid servo motor |
|
rack |
High precision oblique grinding rack |
