Quick Details
-
Warranty:
-
1 Year
-
Type:
-
other, Photoelectric Switch
-
Sensing Range:
-
1mm/3mm/10mm
-
Output Signal Type:
-
Switching Type
-
Material:
-
Stainless Steel
-
IP Rating:
-
IP 67
-
Working Voltage:
-
DC10-30V
-
State:
-
No / Nc
-
Production Process:
-
Flush or Non-Flush
-
Feature:
-
Conductor
-
Detection Distance:
-
1mm/3mm/7mm
-
Detection Way:
-
Diffuse Type / Retroreflective / Trough Beam
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
OEM
-
Model Number:
-
G18
-
Warranty:
-
1 Year
-
Type:
-
other, Photoelectric Switch
-
Sensing Range:
-
1mm/3mm/10mm
-
Output Signal Type:
-
Switching Type
-
Material:
-
Stainless Steel
-
IP Rating:
-
IP 67
-
Working Voltage:
-
DC10-30V
-
State:
-
No / Nc
-
Production Process:
-
Flush or Non-Flush
-
Feature:
-
Conductor
-
Detection Distance:
-
1mm/3mm/7mm
-
Detection Way:
-
Diffuse Type / Retroreflective / Trough Beam

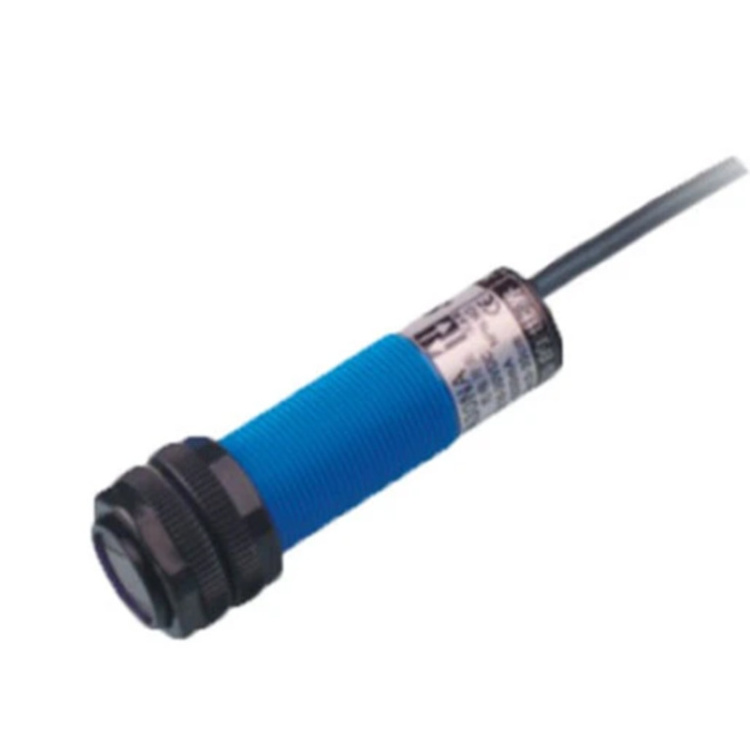

Photoelectric Sensors
detect photo-optical workpieces. provides many varieties of Sensor, including diffuse-reflective, through-beam, retro-reflective, and distance-settable Sensors, as well as Sensors with either built-in or separate amplifiers.
Features :
Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
| Model NO. | Detection distance | Working voltage | Output | Detection way | |
| Form | State | ||||
| G18 -3A 10NA | 10cm | DC10-30V | NPN | NO | Diffuse type |
| G18 -3A 10NB | 10cm | DC10-30V | NPN | NC | Diffuse type |
| G18 -3A 10NC | 10cm | DC10-30V | NPN | NO+NC | Diffuse type |
| G18 -3A 10PA | 10cm | DC10-30V | PNP | NO | Diffuse type |
| G18 -3A 10PB | 10cm | DC10-30V | PNP | NO | Diffuse type |
| G18 -3A 10PC | 10cm | DC10-30V | PNP | NO+NC | Diffuse type |
| G18 -2A 10LA | 10cm | AC90-250V | SCR Control lable silicon | NO | Diffuse type |
| G18 -2A 10LB | 10cm | AC90-250V | SCR Control lable silicon | NC | Diffuse type |
| G18-3B2NA | 2m | DC10-30V | NPN | NO | Retroreflective |
| G18-3B2NB | 2m | DC10-30V | NPN | NC | Retroreflective |
| G18-3B2NC | 2m | DC10-30V | NPN | NO+NC | Retroreflective |
| G18-3B2PA | 2m | DC10-30V | PNP | NO | Retroreflective |
| G18-3B2PB | 2m | DC10-30V | PNP | NC | Retroreflective |
| G18-3B2PC | 2m | DC10-30V | PNP | NO+NC | Retroreflective |
| G18-2B2LA | 2m | AC90-250V | SCR Control lable silicon | NO | Retroreflective |
| G18-2B 2LB | 2m | AC90-250V | SCR Control lable silicon | NC | Retroreflective |
| G18 -3C 5NA | 5m | DC10-30V | NPN | NO | Through beam |
| G18 -3C 5NB | 5m | DC10-30V | NPN | NC | Through beam |
| G18 -3C 5NC | 5m | DC10-30V | NPN | NO+NC | Through beam |
| G18 -3C 5PA | 5m | DC10-30V | PNP | NO | Through beam |
| G18 -3C 5PB | 5m | DC10-30V | PNP | NC | Through beam |
| G18 -3C 5PC | 5m | DC10-30V | PNP | NO+NC | Through beam |
| G18 -2C 5LA | 5m | AC90-250V | SCR Control lable silicon | NO | Through beam |
| G18 -2C 5LB | 5m | AC90-250V | SCR Control lable silicon | NC | Through beam |
|
Inductance type
|
LM5 LM6 LM8 LM8-T LM12 LM12-T LM18 LM18-T LM30 LM30-T LMF1 LMF2 LMF3 LMF11 LMF37 LMF340 PR08 PR12 PR18 PR30 E2E-2 E2E-X4 E2E-X5 E2E-X8 E2E-X10 E2E-X18 |
|
Capacitance type
|
CM12 CM18 CM30 CMF37 E2K
|
|
Hall type
|
SM8 SM12 SM18
|
|
Mimic linear type
|
XM12 XM18 XM30 XMF37 XMF38
|
|
Ultrasonic type
|
UB400 UB500 UB1000 UB1500 UB2000
|
|
Safety explosion-proof type
|
AM8 AM12 AM18 AM30
|
|
Reed type
|
TCS1-E TCS1-F
|
|
Photoelectric type
|
G12 G15 G16 G18 G30 G50 G63 G139
|
|
Color mark and Area secure type
|
BZJ-211 BZJ-311 BZJ-411 BZJ-511 KS-C2 Z3N-TB22 GM20 GM40 |
|
1. Your inquiry will be replied within 24 hours. |
|
2. We offer you professional service in fluent English. |
|
3. Keep the mass production as the sample in high quality |
|
4. Freight forwarder: faster,safer, and convenient. |
|
5. Quality: we have QC on each process,provide high quality products. |
Q: Is sample available and free?
A: Sample is available , but express fee should be paied in advance.
Q: What cerficated do you got ?
A:We got CE , CCC , ISO...
Q: What's your warranty ?
A:Our warranty of the product is 1 years.
Q: What's the delivery time ?
A:Delivery time is depended on quantity . We will delivery as soon as possible.
Q: How about the transport ?
A:We usually transport by Express for samll order , transport by sea or by air for huge quantity.
