The bandpass filter produced by NMOT adopt All-Dielectric hard coating technology and dielectric interference theory. On the basis
of highlighting the characteristics of narrow band filter, the optical performance is independent of the thickness of substrate
which is easier to build-in instrument imaging system. The optical properties has been improved and effectively applied.Special
optical material substrate is adopted to solve the problems such as foggy and unstable optical properties of the traditional absorptive synthetic glass.The products are manufactured according to customers' requirements.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
BP405
-
Product name:
-
BP405nm filter
-
Transmittance:
-
T>90%
-
FWHM:
-
20-50nm
-
Blocking:
-
OD3-OD6@200-1100nm
-
Surface Quality:
-
60/40
-
Shape:
-
Round/Square/Customized
-
Size:
-
2-80mm or customized
-
Thickness:
-
0.3-3.0mm or customized
-
Coating:
-
Reflective Coating
-
Use:
-
laser module etc
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shenzhen,China
-
Brand Name:
-
NMOT
-
Model Number:
-
BP405
-
Product name:
-
BP405nm filter
-
Transmittance:
-
T>90%
-
FWHM:
-
20-50nm
-
Blocking:
-
OD3-OD6@200-1100nm
-
Surface Quality:
-
60/40
-
Shape:
-
Round/Square/Customized
-
Size:
-
2-80mm or customized
-
Thickness:
-
0.3-3.0mm or customized
-
Coating:
-
Reflective Coating
-
Use:
-
laser module etc
Product Description

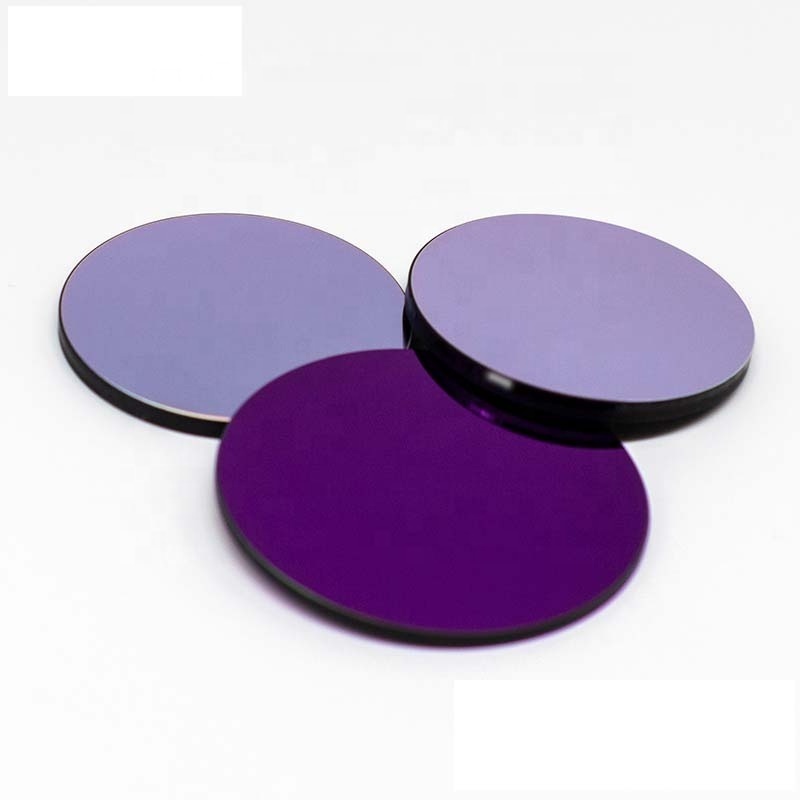

Band pass filter
Specification
|
item
|
value
|
|
Warranty
|
1 year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Shenzhen,China
|
|
Brand Name
|
NMOT
|
|
Model Number
|
NMP405
|
|
Use
|
laser module etc
|
|
Product name
|
BP405nm filter
|
|
Transmittance
|
T>90%@405+/-2nm
|
|
FWHM
|
20-50nm
|
|
Blocking
|
OD3-OD6@200-1100nm
|
|
Substrate
|
D263T/B270/BK7/K9 etc
|
|
Surface Quality
|
60/40
|
|
Shape
|
Round/Square/Customized
|
|
Size
|
2-80mm or customized
|
|
Thickness
|
0.3-3.0mm or customized
|
|
SGS
|
9001:2015
|
Application:
used as filters for observing,photograph,
infrared instrument in order to improve the visibility or meet special spectrum
requirements. It can be also made into colored glasses.
Use in different place
Environmental displays
Industrial applications
Optical metrological instruments
Laser protective windows
Machine vision devices
Optical detection instruments
A digital optical
Optical test instruments
Electro-optic displays
Medical optical
Infrared thermograph
requirements. It can be also made into colored glasses.
Use in different place
Environmental displays
Industrial applications
Optical metrological instruments
Laser protective windows
Machine vision devices
Optical detection instruments
A digital optical
Optical test instruments
Electro-optic displays
Medical optical
Infrared thermograph
Our coating machine
we make process,
all product we can customized.
pls freely contact me.
