Quick Details
-
Model Number:
-
V-4888, V-4888 line array
-
Product Name:
-
Line Array Speakers
-
Type:
-
3 way Line array system
-
Horn material:
-
Neodymium magnet
-
Frequency Range (-10 dB):
-
48 Hz ~18 kHz
-
Frequency Response (±3 dB):
-
60 Hz ~ 16 kHz
-
Bandpass Sensitivity:
-
98 dB
-
Maximum Peak Output:
-
136 dB to 146 dB
-
Net Weight:
-
51 kg (113 lb)
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sinbosen
-
Model Number:
-
V-4888, V-4888 line array
-
Product Name:
-
Line Array Speakers
-
Type:
-
3 way Line array system
-
Horn material:
-
Neodymium magnet
-
Frequency Range (-10 dB):
-
48 Hz ~18 kHz
-
Frequency Response (±3 dB):
-
60 Hz ~ 16 kHz
-
Bandpass Sensitivity:
-
98 dB
-
Maximum Peak Output:
-
136 dB to 146 dB
-
Net Weight:
-
51 kg (113 lb)
Product Description
|
Type
|
V-4888 line array
|
|
Frequency Range (-10 dB)
|
48 Hz – 18 kHz
|
|
Frequency Response (±3 dB)
|
60 Hz – 16 kHz
|
|
System Input Power Rating
|
LF: 2000 W Continuous, 8000 W Peak (AES / 2 hour)
MF: 600 W Continuous, 2400 W Peak (AES / 2 hour)
HF: 150 W Continuous, 600 W Peak (AES / 2 hour)
|
|
Maximum Peak Output
|
136 dB to 146 dB, 1m (frequency/bandpass dependent)
|
|
Recommended Amplification
|
LF: 2 x 1000-2000 W into 8 ohms (2 x LF transducers powered independently)
MF: 600 - 1200 W into 8 ohms
HF: 300 - 600 W into 16 ohm
|
|
Nominal impedance
|
LF: 2 × 8 Ω
MF: 8 Ω
HF: 8 Ω
|
|
Mid Frequency
|
Four 2106HPL 138 mm (5.5 in) with 50 mm (2 in) dia. voice coil
|
|
Weight (net)
|
51 kg (113 lb)
|
|
Dimensions (W x H x D)
|
990.6 mm x 355.6 mm x 508 mm
(39 in x 14 in x 20 in)
|
advantage

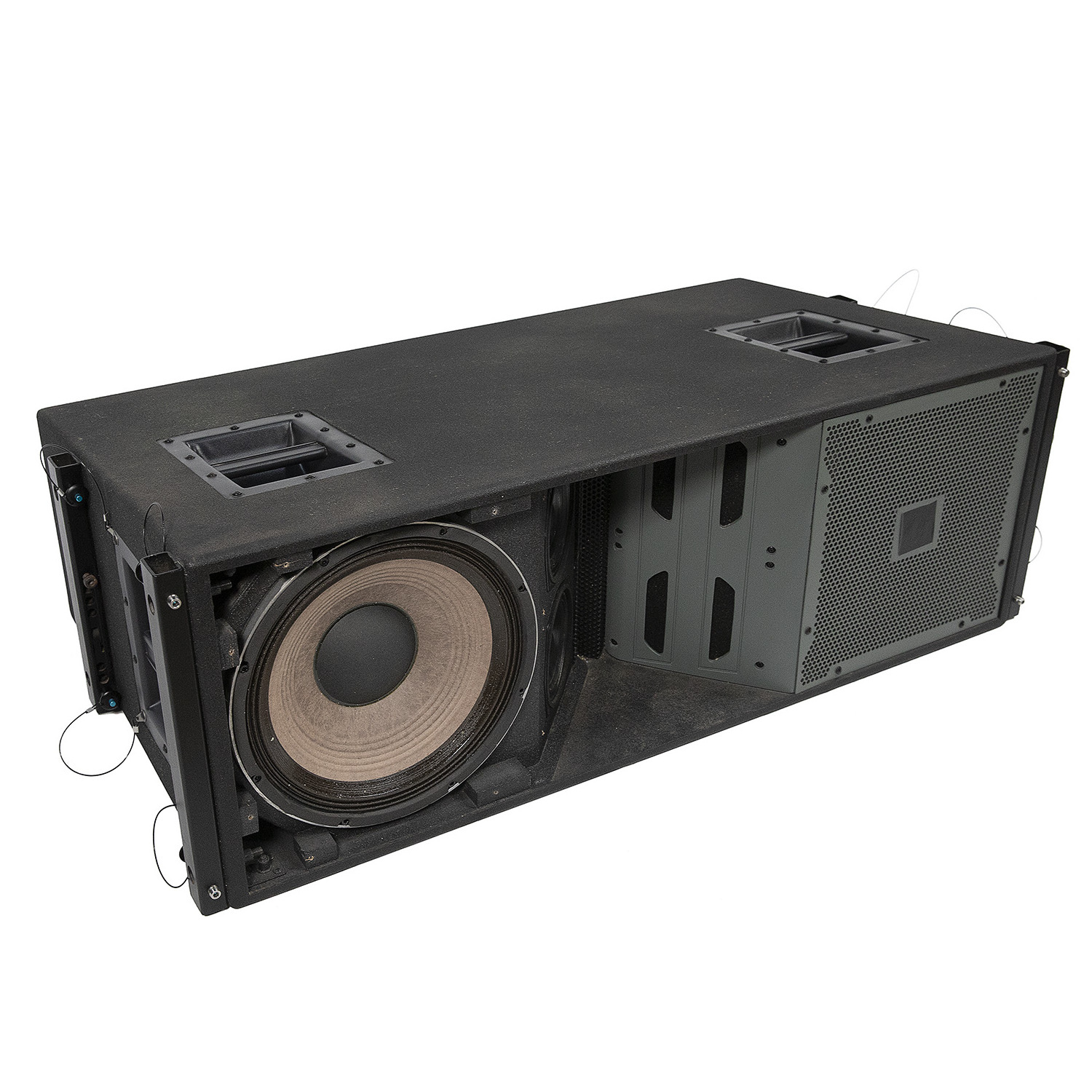

V-4888 3way line array double 12inch
Neodymium magnet
LF: 2 x 2262HPL,76mm,12",2×700W,8Ω
MF: 4 x 5.5",,50mm,4×130W,8Ω
HF: 2 x 2431H,3"76mm,2×120W,16Ω
Cabinet:FIrst grade Russian birch plywood
Front steel grill with anti-corrosion coating
acoustically neutral 3D fabric
Rigging components:high grade steel with anti-corrosion coating
