Quick Details
-
Power:
-
480 Kw
-
Dimension(L*W*H):
-
48X45X21
-
Weight:
-
20000 kg
-
Product name:
-
Tar Mixing Machine, Asphalt Mixing Machine 160 t/h
-
Rated capacity:
-
160 ton/hour
-
Fuel Consumption:
-
5~6.5kg/t
-
Mixing Type:
-
batch mix, hot mix
-
Burner:
-
Oil Dual-purpose Burner
-
Mixer capacity:
-
2000kg/batch
-
Control system:
-
PLC/Touching Screen/auto/Manual
-
Color:
-
Client's Customized
-
Application:
-
High-grade Asphalt Road Paving
-
Mixing cycle:
-
30-45s/batch
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SINOSUN
-
Voltage:
-
380V-50HZ (Adjustable)
-
Power:
-
480 Kw
-
Dimension(L*W*H):
-
48X45X21
-
Weight:
-
20000 kg
-
Product name:
-
Tar Mixing Machine, Asphalt Mixing Machine 160 t/h
-
Rated capacity:
-
160 ton/hour
-
Fuel Consumption:
-
5~6.5kg/t
-
Mixing Type:
-
batch mix, hot mix
-
Burner:
-
Oil Dual-purpose Burner
-
Mixer capacity:
-
2000kg/batch
-
Control system:
-
PLC/Touching Screen/auto/Manual
-
Color:
-
Client's Customized
-
Application:
-
High-grade Asphalt Road Paving
-
Mixing cycle:
-
30-45s/batch

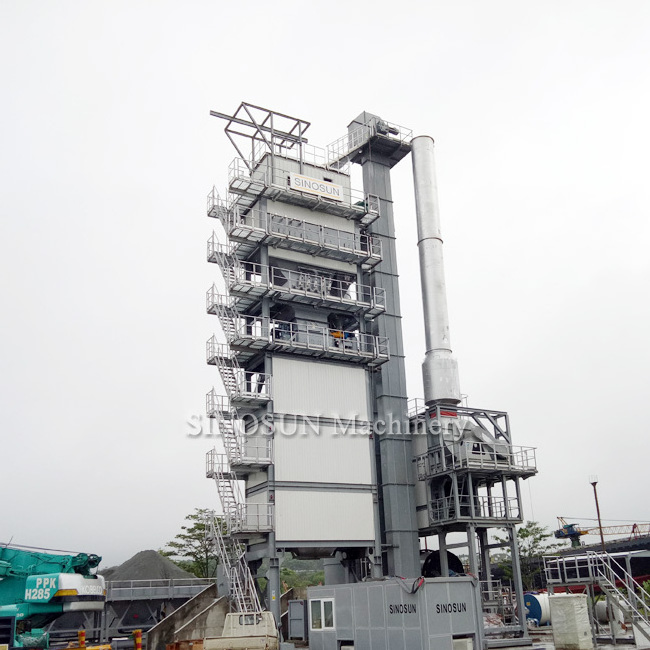

SAP160 Tar(asphalt) Mixing Plant Application
The asphalt plant is suitable for high standard asphalt road paving engneering. its capacity is 160t/h.
Asphalt Plant Main Components
1) Cold Aggregate Feeding Bins
2) Drum Dryer
3) Burner: oil burner (or coal burner)
4) Hot Aggregate Elevator
5) Vibration Screen system
6) Weighing system
7) Bitumen Supply and spraying System
8) Aspahlt Mixing System
9) Dust Filtering System
10) Filler System
11) Control room & electrical control system
Asphalt Plant Machine-Main Parts-1
Name: Cold Aggregate Feeding Bins
No. of hoppers: 5 units
Capacity of Single hopper:9 m³
Total capacity: 45 m³
Length of loading: 2.7M
Height of feeding: 3.0M
Motor power: 5 X2.2kw
Main Parts-2
Length of drum: 9000mm
Thickness: 14mm (boiler steel plate)
Fuel type: oil
3% water content: 180t/h
5% water content: 160t/h
Motor power: 15kw X4 units
Main Parts-3
Name:
Oil burner
Brand:
FRD or Ebico
Original:
China or Italy
Fuel type: diesel
Max viscosity : 3°cst(50℃)180°cst(50℃)
Max oil consumption:1200kg /h (diesel)
Diesel calorific value: 10500kcal/kg
Mixer tank volume: 2000kgs
Mixing cycle time: 40-45s
Mixing time: 18s
Motor power: 2 x 37 kW
NM500 HIGH WEAR Resistant Material
Pre-Sales Service
* Asphalt mixing plant Inquiry and consulting support.
* Sample testing support.
* View our bitumen(asphalt) mixing plant Factory.
After-Sales Service
* Asphalt Plant/bitumen mixing plant Training how to instal the asphalt plant machine, training how to use the mixing plant.
* Engineers available to service machinery overseas.
