Modern and compact design recessed mounted lamps, classic creativity for interior decoration, it is a perfect decorative lighting for interiors, attractive in appearance, no gap installation between wall and light housing. it is also a real highlight during the day, brings you a charming atmosphere with bright light source .
World-class lighting solutions for large public spaces such as offices and hotels. The standard range is complimented by modified and custom solutions.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
5CCT(2700K-3000K-3500K-4000K-5000K)
-
Product Weight（kg）:
-
0.66
-
Lamp Luminous Flux(lm):
-
960
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
30000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kaweisen
-
Model Number:
-
KWS-AFS4BK12
-
Product Name:
-
4" Square LED Slim Panel Light
-
Material:
-
Aluminum diecasting + PC lampshade(Frosted)
-
Color:
-
White /Black /Satin Nickel
-
LED type:
-
Epistar SMD2835
-
Driver:
-
Isolated Constant Current Driver in Junction box
-
Beam Angle(°):
-
110-120
-
Installation:
-
Circlip loaded retention arms for installation included
-
Intelligent Funtions:
-
Triac phase cut, 0-10V, Wifi, On/Off, 2.4G Remote Control
-
Certification:
-
ETL,Energy Star,FCC,T24
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
80
-
Application:
-
Home Office Building, Indoor,Living room,Office,Villa,Hotel,Home,Meeting Room,Shopping mall
-
Lamp Body Material:
-
Aluminum+PMMA
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
5CCT(2700K-3000K-3500K-4000K-5000K)
-
Product Weight（kg）:
-
0.66
-
Lamp Luminous Flux(lm):
-
960
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
30000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kaweisen
-
Model Number:
-
KWS-AFS4BK12
-
Product Name:
-
4" Square LED Slim Panel Light
-
Material:
-
Aluminum diecasting + PC lampshade(Frosted)
-
Color:
-
White /Black /Satin Nickel
-
LED type:
-
Epistar SMD2835
-
Driver:
-
Isolated Constant Current Driver in Junction box
-
Beam Angle(°):
-
110-120
-
Installation:
-
Circlip loaded retention arms for installation included
-
Intelligent Funtions:
-
Triac phase cut, 0-10V, Wifi, On/Off, 2.4G Remote Control
-
Certification:
-
ETL,Energy Star,FCC,T24

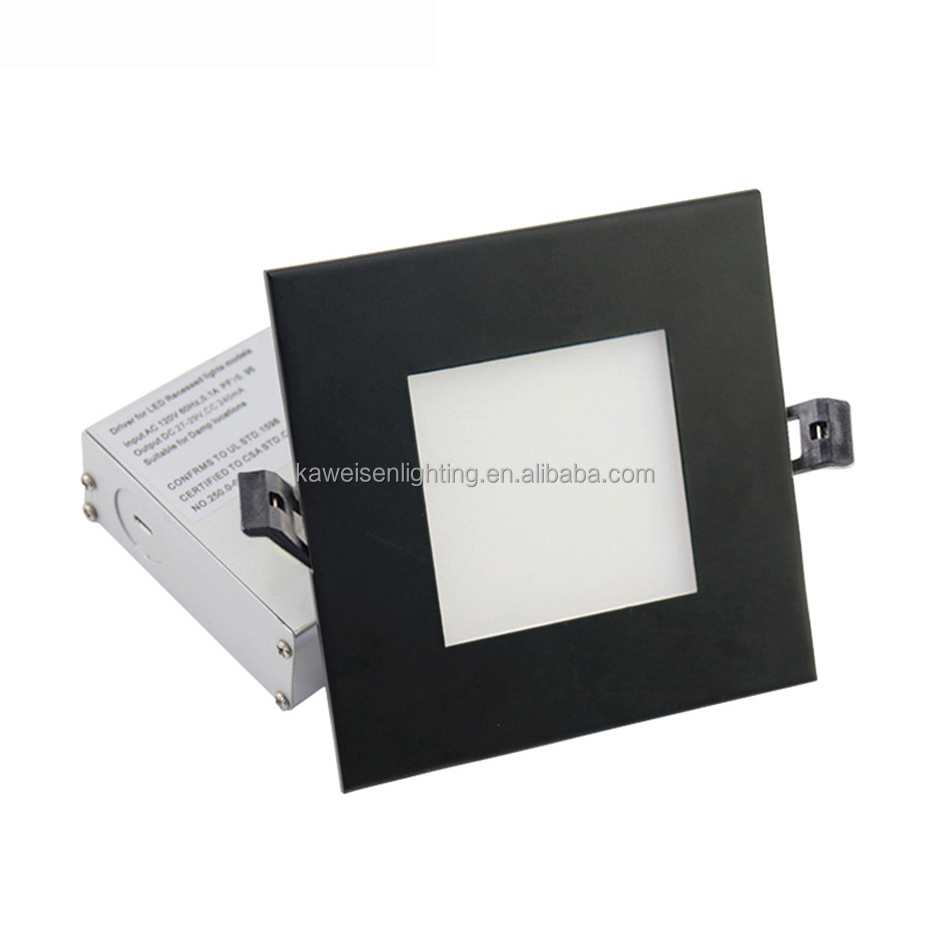

Ultra-slim LED Square Panel Light Black Commercial Panel Lamp Office Shopping Mall Hotel Lighting 12w 4 Inch Recessed Downlight
Specification
|
Model Number
|
KWS-AFS4BK12
|
|
Product Name
|
Square Recessed Mounted LED Edge-lit Slim Panel Light with Junction Box
|
|
Outside diameter:
|
L122*W122*T25mm (4.8" x 4.8" x 1")
|
|
Cut out:
|
Φ108mm
|
|
Material
|
Aluminum diecasting + PC lampshade(Frosted)
|
|
Surface treatment
|
powder coating
|
|
Used
|
Indoor, Villa, Hotel, Home, Office, Mall, Exhibiton Hall
|
|
Advantages
|
1. No glare, lighting uniformly, excellent heat dissipation performance
|
|
|
2. High Efficacy: 80lm/w ±5%,
|
|
|
3. Material: Frosted PC cover, Die-casting Aluminum housing, Ultra-thin body, Good heat dissipation, Rust-proof
|
|
|
4. High CRI: Ra>80(standard), Ra>90(upgrade, available), no flicker, silent, 5%-100% smooth dimming, instant start.
|
|
|
5. Certified driver, flicker-free, build-in, power factor>0.9
|
|
|
6. Input Voltage: AC220-240V(EU version), AC100-240V(US version)
|
|
|
7. LED PCB board, SMD2835, L80B10(Ta=25ºC)>50000hrs, long lifespan
|
|
|
8. Shell Color :White, Black(standard color), Satin Nickel
|
|
|
9. Optional functions: 3 Steps or 5 Steps Switch CCT Control 2700K 3000K 3500K 4000K 5000K
|
|
|
10. Kelvin: 3CCT(2700-3500K,4000-4500K,5500-7000K), RGB(Red,Green,Blue)
|
|
|
11. Light Guide Plate Light transmittance up to 90%, no glare, soft and eye-protection
|
|
|
12. Sturdy metal bracket, Safe and strong
|
|
|
13. Product Testing,100% lights will be tested before leaving the factory
|
|
|
14. Packaging Customization, Inner box and outer box provide customized, professional shipping suggestion
|
|
Application
|
Lobby, Shopping mall, Reception, Living room, Office, Meeting Room, Supermarket
|
Modern and Compact design
