Seal type: O-rings and flat gasket Sealing material: nitrile rubber(chemitum), silicone, fluorine rubber, usually use silicon
rubber seal Filter interface: the threaded, clamp(hoop), GB, HG, DIN, ANSI, JIS standard flange Filtration accuracy: 1μm - 100 μm
Body material: SS304/SS 316
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
Carton or OEM
-
Weight:
-
150-1500
-
Size:
-
10-40"
-
Weight (KG):
-
50 kg
-
Product name:
-
cartridge filter housings
-
Application:
-
Filtration
-
Type:
-
Pure Water Treatment System
-
Usage:
-
Pure Water Process
-
Keywords:
-
RO Water Filtration
-
Capacity:
-
1-65m3/hr
-
Brand:
-
Dagyee
-
MOQ:
-
1 Set
-
Raw material:
-
Stainless Steel Boards
-
Function:
-
Producing Fresh Water
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Quick Details
-
Core Components:
-
filter housing
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Dagyee
-
Material:
-
Carton or OEM
-
Weight:
-
150-1500
-
Size:
-
10-40"
-
Weight (KG):
-
50 kg
-
Product name:
-
cartridge filter housings
-
Application:
-
Filtration
-
Type:
-
Pure Water Treatment System
-
Usage:
-
Pure Water Process
-
Keywords:
-
RO Water Filtration
-
Capacity:
-
1-65m3/hr
-
Brand:
-
Dagyee
-
MOQ:
-
1 Set
-
Raw material:
-
Stainless Steel Boards
-
Function:
-
Producing Fresh Water
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Recommend Products
Products Description

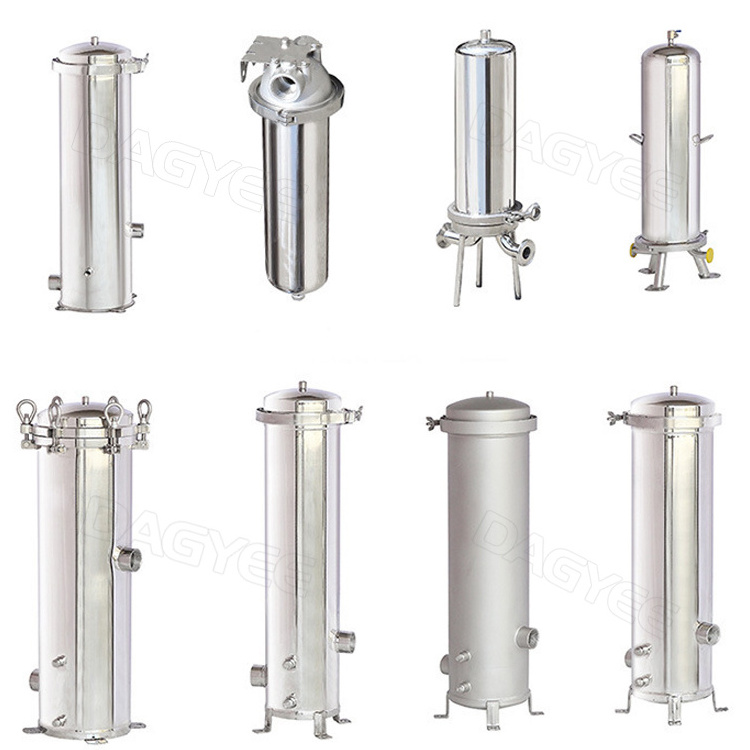

Filtergehäuse Edelstahl SS Filter Housing consists of SUS316L or SUS304, and take filter cartridge as its element. The SS filter
housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate.
It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance.
housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate.
It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance.
Optional Parts
|
Item
|
Size
|
Available
|
Application
|
|
DJ-DOE
|
10''/20''/30''/40''
|
√
|
Pharmaceutical industry: pre-filtration of various antibiotics.
|
|
|
|
|
Oil industry: oilfield water injection filtration.
|
|
DJ-222
|
10''/20''/30''/40''
|
√
|
Food and beverage industry: filtration of alcohol, mineral water, drinking water.
|
|
|
|
|
Electronics industry: high purity water pre-filtration.
|
|
DJ-226
|
10''/20''/30''/40''
|
√
|
Chemical industry: filtration of various organic solvents, acids and alkali.
|
|
|
|
|
|
Technical Paramenters
Filtergehäuse Edelstahl Single filter Cartridges housings
|
Model
|
Max. Flow Rate
(m3 /h) |
Max. Operating Conditions (bar/°C)
|
Filter specifications
|
Inlet/Outlet
|
Height
mm |
Max. Cartridge Diameter mm
|
|
DYG-1-10''
|
0.5 M3/H
|
6/120
|
Ø65*250
|
1/2''
|
380
|
Ø89
|
|
DYG-1-20''
|
1 M3/H
|
6/120
|
Ø65*500
|
3/4''
|
630
|
Ø89
|
|
DYG-1-30''
|
1.5 M3/H
|
6/120
|
Ø65*750
|
1''
|
880
|
Ø89
|
|
DYG-1-40''
|
2 M3/H
|
6/120
|
Ø65*1000
|
1''
|
1130
|
Ø89
|
Single microporous filter housings
|
Model
|
Max. Flow Rate (m3 /h)
|
Max. Operating Conditions (bar/°C)
|
Filter specifications
|
Inlet/Outlet-Quick Connector
|
Height mm
|
Max. Cartridge Outside Diameter
|
|
DYG-C1-10''
|
0.5 M3/H
|
6/120
|
Ø68*250
|
1 1/4''
|
608
|
Ø102
|
|
DYG-C1-20''
|
1 M3/H
|
6/120
|
Ø68*500
|
1 1/4''
|
850
|
Ø102
|
|
DYG-C1-30''
|
1.5 M3/H
|
6/120
|
Ø68*750
|
1 1/4''
|
1100
|
Ø102
|
|
DYG-C1-40''
|
2 M3/H
|
6/120
|
Ø68*1000
|
1 1/4''
|
1350
|
Ø102
|
5 Cartridges filter Housings
|
Model
|
Max. Flow Rate (m3 /h)
|
Max. Operating Conditions (bar/°C)
|
Filter specifications
|
Inlet/Outlet
|
Height mm
|
Max. Cartridge Outside Diameter
|
|
DYG-5-10''
|
2.5 M3/H
|
6/150
|
Ø65*250
|
3/4‘’
|
550
|
Ø219
|
|
DYG-5-20''
|
5 M3/H
|
6/150
|
Ø65*500
|
1‘’
|
850
|
Ø219
|
|
DYG-5-30''
|
7.5 M3/H
|
6/150
|
Ø65*750
|
1 1/2''
|
1100
|
Ø219
|
|
DYG-5-40''
|
10 M3/H
|
6/150
|
Ø65*1000
|
2‘’
|
1390
|
Ø219
|
5 Cartridges filter Housings with flange
|
Model
|
Max. Flow Rate (m3 /h)
|
Max. Operating Conditions (bar/°C)
|
Filter specifications
|
Inlet/Outlet
|
Height mm
|
Max. Cartridge Outside Diameter
|
|
DYG-5F-10''
|
2.5 M3/H
|
0-1.0MPa
|
Ø65*250
|
3/4‘’
|
550
|
Ø219
|
|
DYG-5F-20''
|
5 M3/H
|
0-1.0MPa
|
Ø65*500
|
1‘’
|
850
|
Ø219
|
|
DYG-5F-30''
|
7.5 M3/H
|
0-1.0MPa
|
Ø65*750
|
1 1/2''
|
1100
|
Ø219
|
|
DYG-5F-40''
|
10 M3/H
|
0-1.0MPa
|
Ø65*1000
|
2‘’
|
1390
|
Ø219
|
Single bag filter housings
|
Model
|
Max. Flow Rate (m3 /h)
|
Max. Operating Conditions (bar/°C)
|
Filter specifications
|
Inlet/Outlet
|
Height mm
|
Max. Cartridge Outside Diameter
|
|
DYG-1-1S
|
18M3/H
|
12/150
|
Ø180*410
|
1 1/2'' flange
|
1040
|
Ø219
|
|
DYG-1-2S
|
36 M3/H
|
12/150
|
Ø180*810
|
2'' flange
|
1300
|
Ø219
|
|
DYG-1-4S
|
10 M3/H
|
12/150
|
Ø105*380
|
1 1/2'' BSP female
|
850
|
Ø133
|
|
DYG-1K-1S
|
18 M3/H
|
12/150
|
Ø180*410
|
1 1/2''flange
|
1010
|
Ø219
|
Multi Bag Filter Housings
|
Model
|
Max. Flow Rate (m3 /h)
|
Max. Operating Conditions (bar/°C)
|
Filter specifications
|
Inlet/Outlet
|
Height mm
|
Max. Cartridge Outside Diameter
|
|
DYG-2D-2S
|
70 M3/H
|
12/150
|
Ø180*810
|
2''
|
1600
|
Ø420
|
|
DYG-3D-2S
|
100 M3/H
|
12/150
|
Ø180*810
|
3''
|
1800
|
Ø506
|
|
DYG-4D-2S
|
130 M3/H
|
12/150
|
Ø180*810
|
4''
|
1800
|
Ø506
|
|
DYG-6D-2S
|
200 M3/H
|
12/150
|
Ø180*810
|
4''
|
2100
|
Ø650
|
|
DYG-8D-2S
|
250 M3/H
|
12/150
|
Ø180*810
|
5''
|
2100
|
Ø710
|
|
DYG-12D-2S
|
400M3/H
|
12/150
|
Ø180*810
|
6''
|
2100
|
Ø910
|
