Quick Details
-
Warranty:
-
25 Years, 25 Years
-
Brand Name:
-
Anhui Power
-
Model Number:
-
AR-SM-110-1026
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2279*1134*35mm
-
Product name:
-

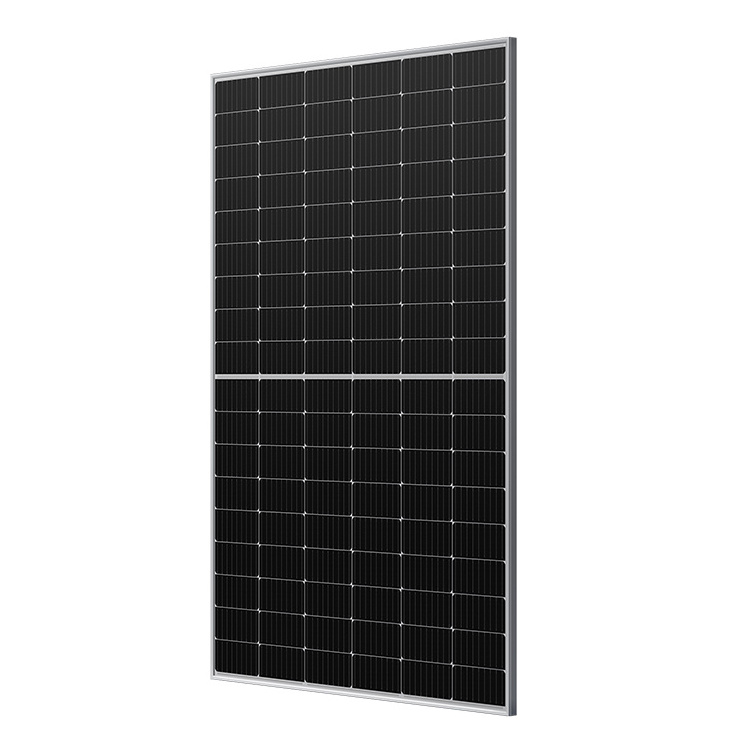

Solar Panel
-
Connector:
-
Yes
-
Encapsulation Material:
-
EVA
-
OEM Order:
-
Yes
-
Output tolerance:
-
0-3%
-
Feature:
-
Anti-corrosion
-
Max efficiency:
-
21.2%
-
Certificate:
-
Yes
Quick Details
-
Cell size:
-
210*105mm
-
Type:
-
Half Cell
-
Panel Efficiency:
-
555W
-
Warranty:
-
25 Years, 25 Years
-
Brand Name:
-
Anhui Power
-
Model Number:
-
AR-SM-110-1026
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2279*1134*35mm
-
Product name:
-
Solar Panel
-
Connector:
-
Yes
-
Encapsulation Material:
-
EVA
-
OEM Order:
-
Yes
-
Output tolerance:
-
0-3%
-
Feature:
-
Anti-corrosion
-
Max efficiency:
-
21.2%
-
Certificate:
-
Yes
Product Description
Product Paramenters
|
Photovoltaic Modules
|
|
|
|
|
|
|
||||||
|
Encapsulation
|
Glass/EVA/Cell/EVA/Backsheet
|
|
|
|
|
|
||||||
|
Size and Number of cells
|
210mm*105mm 110 cells /5*22pcs
|
|
|
|
|
|
||||||
|
Maximum Power P
mp
(W)
|
530
|
535
|
540
|
545
|
550
|
555
|
||||||
|
Maximum Power Voltage V
mp
(W)
|
30.8
|
31
|
31.2
|
31.4
|
31.6
|
31.8
|
||||||
|
Maximum Power Current I
mp
(A)
|
17.21
|
17.28
|
17.33
|
17.37
|
17.4
|
17.45
|
||||||
|
Open-circuit Voltage V
oc
(V)
|
37.1
|
37.3
|
37.5
|
37.7
|
37.9
|
38.1
|
||||||
|
Short-circuit Current I
sc
(A)
|
18.31
|
18.36
|
18.41
|
18.47
|
18.52
|
18.56
|
||||||
|
Module Efficiency (%)
|
20.3%
|
20.5%
|
20.7%
|
20.9%
|
21%
|
21.2%
|
||||||
|
Tolerance
|
0+3%
|
|
|
|
|
|
||||||
|
Max System Open Circuit Voltage
|
1500V
|
|
|
|
|
|
||||||
|
Max Series Fuse Rating
|
25A
|
|
|
|
|
|
||||||
|
Junction Box (Protection Degree)
|
IP68
|
|
|
|
|
|
||||||
|
Dimension(W'D*L)
|
2384*1098*35mm
|
|
|
|
|
|
||||||
|
Weight
|
28.06kg
|
|
|
|
|
|
||||||
|
Operate Temperature Scope
|
-40/+85
o
C
|
|
|
|
|
|
||||||
|
Relative Humidity
|
0~100%
|
|
|
|
|
|
||||||
|
Thickness
|
35mm
|
|
|
|
|
|
||||||
|
Frame Color
|
Silver
|
|
|
|
|
|
||||||
