Quick Details
-
Model Number:
-
aining001
-
Product name:
-
P80 plasma cutting torch
-
Application:
-
hand welding cutting
-
Nozzles Size:
-
Depends on Plasma Source
-
Cutting Tools:
-
Nozzles Electrode
-
Plasma Torch Style:
-
TIG Torch/Air Torch/Cooler Torch
-
Material:
-
Brass Copper/Brass
-
Package:
-
Carton Box
-
Torch Model:
-
120A, 200A, 300A, 160A Welding Torch
-
Consumables:
-
Cutting Electrode Nozzle
-
Origin:
-
China
Quick Details
-
Type:
-
Welding Torch
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AINING
-
Model Number:
-
aining001
-
Product name:
-
P80 plasma cutting torch
-
Application:
-
hand welding cutting
-
Nozzles Size:
-
Depends on Plasma Source
-
Cutting Tools:
-
Nozzles Electrode
-
Plasma Torch Style:
-
TIG Torch/Air Torch/Cooler Torch
-
Material:
-
Brass Copper/Brass
-
Package:
-
Carton Box
-
Torch Model:
-
120A, 200A, 300A, 160A Welding Torch
-
Consumables:
-
Cutting Electrode Nozzle
-
Origin:
-
China
Product Description
P80 PLASMA WELDING CUTTING TORCH
Name
|
P80 Plasma Cutting Torch
|
Current
|
80A
|
Gas
|
Air
|
Standard length
|
5m
|
Gas Flow
|
220LPM
|
Air pressure
|
4.5-5.0bar
|

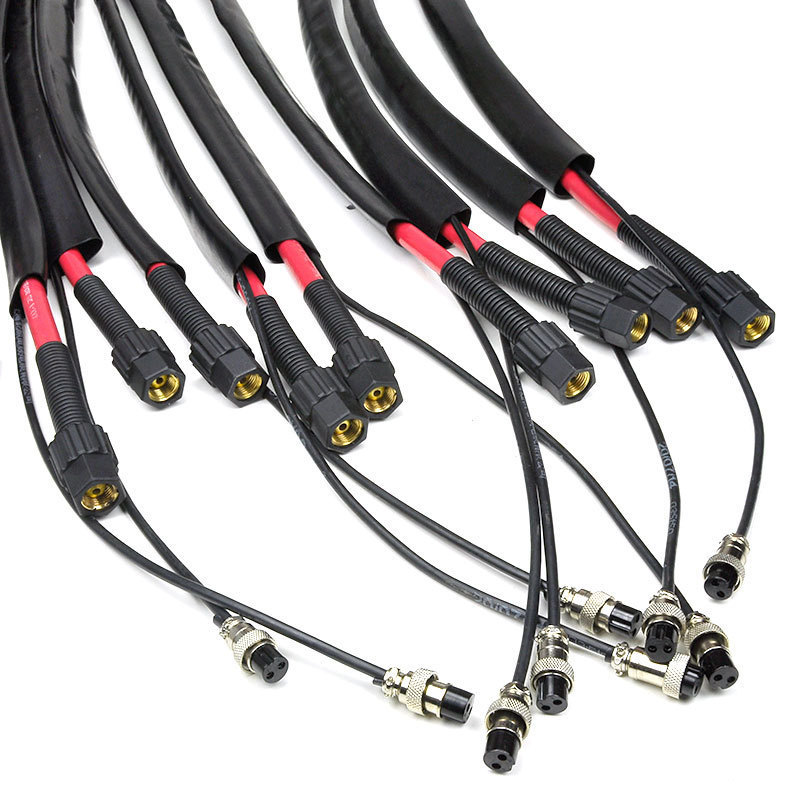

Cable Assembly
|
Saparated
|
Duty cycle
|
60%
|
P80 CUTTING CONSUMABLE NOZZLE AND ELECTRODE
NOZZLE
The nozzle focuses the plasma arc and the gas that surrounds it to make a clean and precise cut. A nozzle with a larger opening is used for gouging, while a nozzle with a smaller opening is better able to direct the gas and so is used for fine, detailed work.
The nozzle focuses the plasma arc and the gas that surrounds it to make a clean and precise cut. A nozzle with a larger opening is used for gouging, while a nozzle with a smaller opening is better able to direct the gas and so is used for fine, detailed work.
ELECTRODE
The electrode is a narrow piece of copper containing hafnium (which is an excellent conductor of electricity). Its job is to receive the electrical current from a cathode block inside the torch to which it is connected, and to focus the charge through its tip, which causes it to arc onto the workpiece.
The electrode is a narrow piece of copper containing hafnium (which is an excellent conductor of electricity). Its job is to receive the electrical current from a cathode block inside the torch to which it is connected, and to focus the charge through its tip, which causes it to arc onto the workpiece.
Specification
Nozzle Diameter
|
Current
|
Welding Materials
|
||
1.1mm
|
40A
|
0-6MM
|
||
1.3mm
|
60A
|
6-10MM
|
||
1.5mm
|
80A
|
10-18MM
|
||
1.7mm
|
100A
|
18-25MM
|
||
Remarks: Nozzle+Electrode=one set
|
|
|
Packing & Delivery
10 PCS/ Plastic box, then put into carton
