Quick Details
-
Brand Name:
-
CHYNA
-
Product name:
-

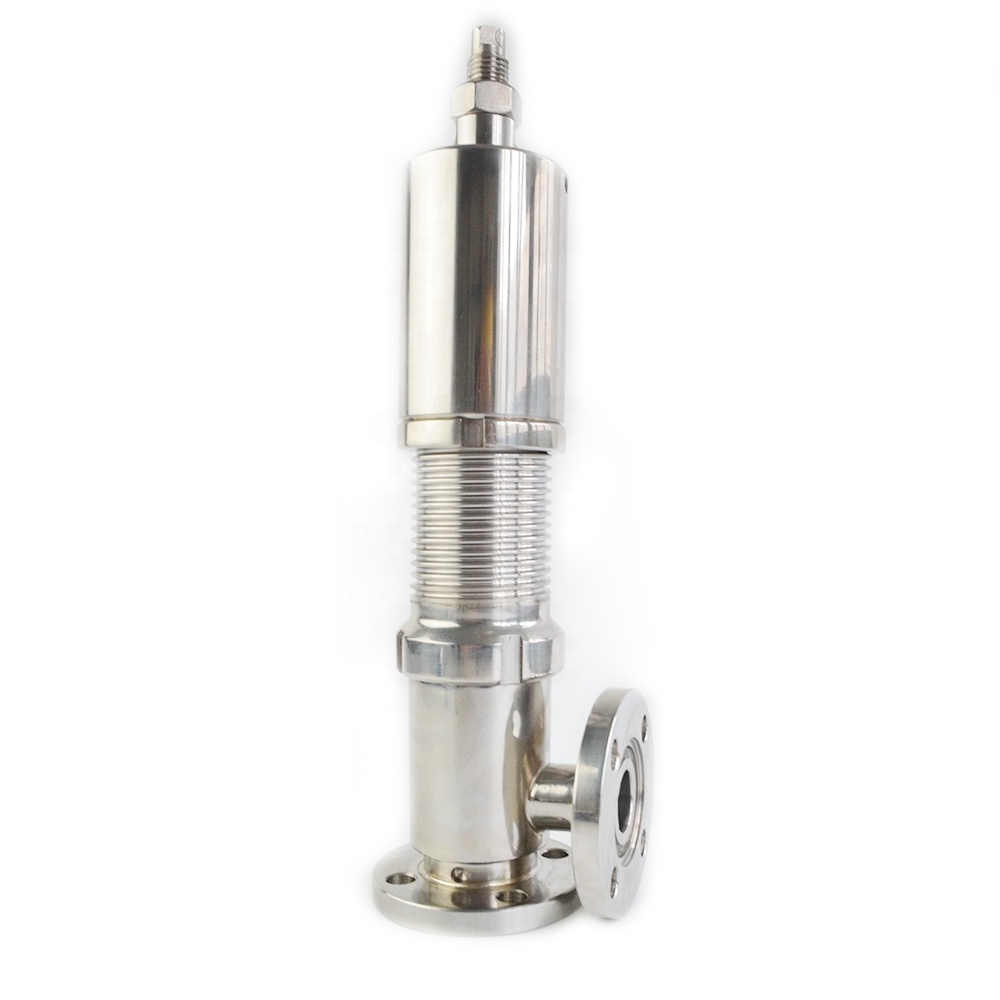

Safety Valve
-
Standard:
-
DIN, SMS, 3A, ISO, IDF, RJT, DS
-
Connection:
-
Union, Clamp, Welding, flange
-
Body Material:
-
SS304, SS316L
-
Sealing Material:
-
EPDM, FKM, Silicone, PTFE
-
Certificate:
-
ISO 9001, CE
-
OEM:
-
Avaiable
-
Technics:
-
Forging
Quick Details
-
Port Size:
-
DN10-DN25, 1/4"-1"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
CT-PSV-CC
-
Brand Name:
-
CHYNA
-
Product name:
-
Safety Valve
-
Standard:
-
DIN, SMS, 3A, ISO, IDF, RJT, DS
-
Connection:
-
Union, Clamp, Welding, flange
-
Body Material:
-
SS304, SS316L
-
Sealing Material:
-
EPDM, FKM, Silicone, PTFE
-
Certificate:
-
ISO 9001, CE
-
OEM:
-
Avaiable
-
Technics:
-
Forging
This valve is widely used in beer, wine and other industries.
|
Size |
1/2", DN10 |
|
Connection |
clamp, thread |
|
Max Pressure |
≤ 2.2bar (pressure adjustable) |
|
Working temperature: |
-10 ° C to 90 ° C |
|
Material: |
SS304/SS316L |
|
Surface Roughness |
Ra ≤ 1.6 μ m |
|
Sealing: |
EPDM, Silicone Rubber (SI), Viton (FPM) |
|
Dairy food, beverage, pharmacy, cosmetic, chemical, etc. |
|
|
Standard |
DIN, SMS, 3A, ISO, IDF, RJT, DS |
|
Connection |
Union, Clamp, Welding, flange |
|
Certificate |
ISO 9001, CE |
|
OEM |
Available |
The high pressure safety air gas steam spring shut off relief valves control the pressure by adjusting the spring. When the pressure in the tank is bigger than the valve setting pressure, the valve seat automatically turns on, the pressure in the equipment system is released, and the beer fermentation is effectively processed. The tank is no more in high pressure, which may cause danger. The pressure can be set according to the user's need. The valve has a glass, which can be filled with water. It can be seen when gas comes out. A spare pressure gauge can be available.
