Quick Details
-
Brand Name:
-
JVLER
-
Model Number:
-
RP-10
-
Material:
-
Aluminum Alloy
-
Application:
-
Powder
-
Power Supply:
-
AC220V/DC24V
-
Paddle Speed:
-
1 R.P.M
-
Output Signal:
-
SPDT
-
Process Temperature:
-
-20~+80℃
-
Process Pressure:
-
Normal
-
Material of Blade:
-
SS 304
-
Material of Terminal Box:
-
Aluminum Alloy
-
Connection:
-
G 1"(optional)
-
Protection Grade:
-
IP65/IP66/IP67
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JVLER
-
Model Number:
-
RP-10
-
Material:
-
Aluminum Alloy
-
Application:
-
Powder
-
Power Supply:
-
AC220V/DC24V
-
Paddle Speed:
-
1 R.P.M
-
Output Signal:
-
SPDT
-
Process Temperature:
-
-20~+80℃
-
Process Pressure:
-
Normal
-
Material of Blade:
-
SS 304
-
Material of Terminal Box:
-
Aluminum Alloy
-
Connection:
-
G 1"(optional)
-
Protection Grade:
-
IP65/IP66/IP67

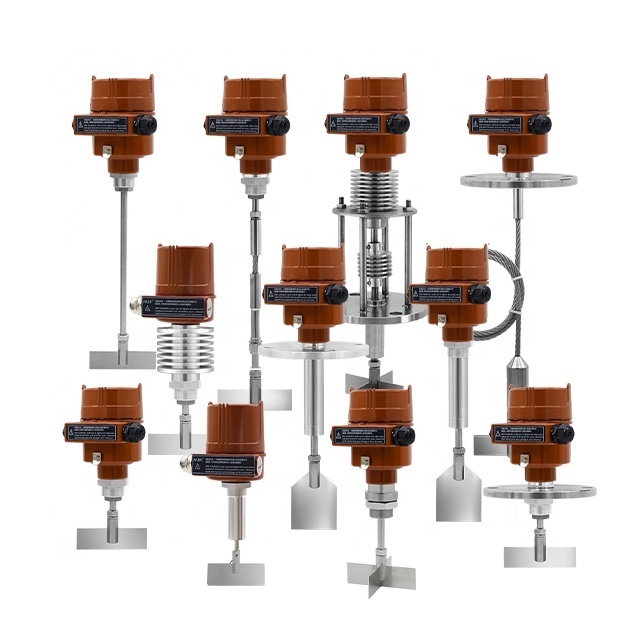

RP-10 Rotary Paddle Level Switch for Silo Flange Type Rotary Paddle Level Switch
Product Working Principle
Making use of the electrical machinery to bring blade revolving,when the medium rises to the blade position, the blade stops rotation because of the impediment of the medium, thus through the related control organization outputs open (pass) or close (break) the electronic contact signal; When the medium drops and leaves the blade, under the function of spring, the blade restores the beginning position to continue to rotate and survey the variation position of the medium.
Specification
|
Application
|
Powder
|
|
Power Supply
|
AC220V/DC24V
|
|
Paddle Speed
|
1 R.P.M
|
|
Output Signal
|
SPDT
|
|
Process Temperature
|
-20~+80℃
|
|
Process Pressure
|
Normal
|
|
Material of Blade
|
SS 304
|
|
Material of Terminal Box
|
Aluminum Alloy
|
|
Connection
|
G 1"(optional)
|
|
Protection Grade
|
IP65/IP66/IP67
|
Features
◆ Detection of loose solid materials using the technology of the rotating blade
◆ The highly integrated mechnical seal to prevent infiltration of dust along the axis
◆ The unique elastical clutch structure, when the blade being overloaded, the automatic protection of electrical
machinery could be realised.
◆ Completely mechanical and electrical separation structure, need not to demolish wholely, easy to maintain
◆ Special blades can be used for low-density mediums
◆ Use of the process connecting pieces, easy to install.
