Quick Details
-
Interface Standard:
-
custom
-
Output Current:
-
custom
-
Output Power:
-
Customized according to vehicle type
-
Input Voltage:
-
custom
-
Product name:
-
TELD TELD
-
Type:
-
Charging pile, charging station
-
Car group charging solution:
-
Buses, taxis, logistics vehicles, residential areas
-
Main function:
-
Intelligent, efficient, safe and convenient
Quick Details
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
TELD TELD
-
Brand Name:
-
TELD
-
Interface Standard:
-
custom
-
Output Current:
-
custom
-
Output Power:
-
Customized according to vehicle type
-
Input Voltage:
-
custom
-
Product name:
-
TELD TELD
-
Type:
-
Charging pile, charging station
-
Car group charging solution:
-
Buses, taxis, logistics vehicles, residential areas
-
Main function:
-
Intelligent, efficient, safe and convenient
Special Call Charging Network Products
Special call is a new energy vehicle charging equipment manufacturer and charging network operator, committed to the research and development of charging network, microgrid, energy storage network "three network integration" of the new energy Internet, based on intelligent energy management system, through advanced technology, exquisite products, quality services, to provide users with intelligent charging overall solution.
Products Description

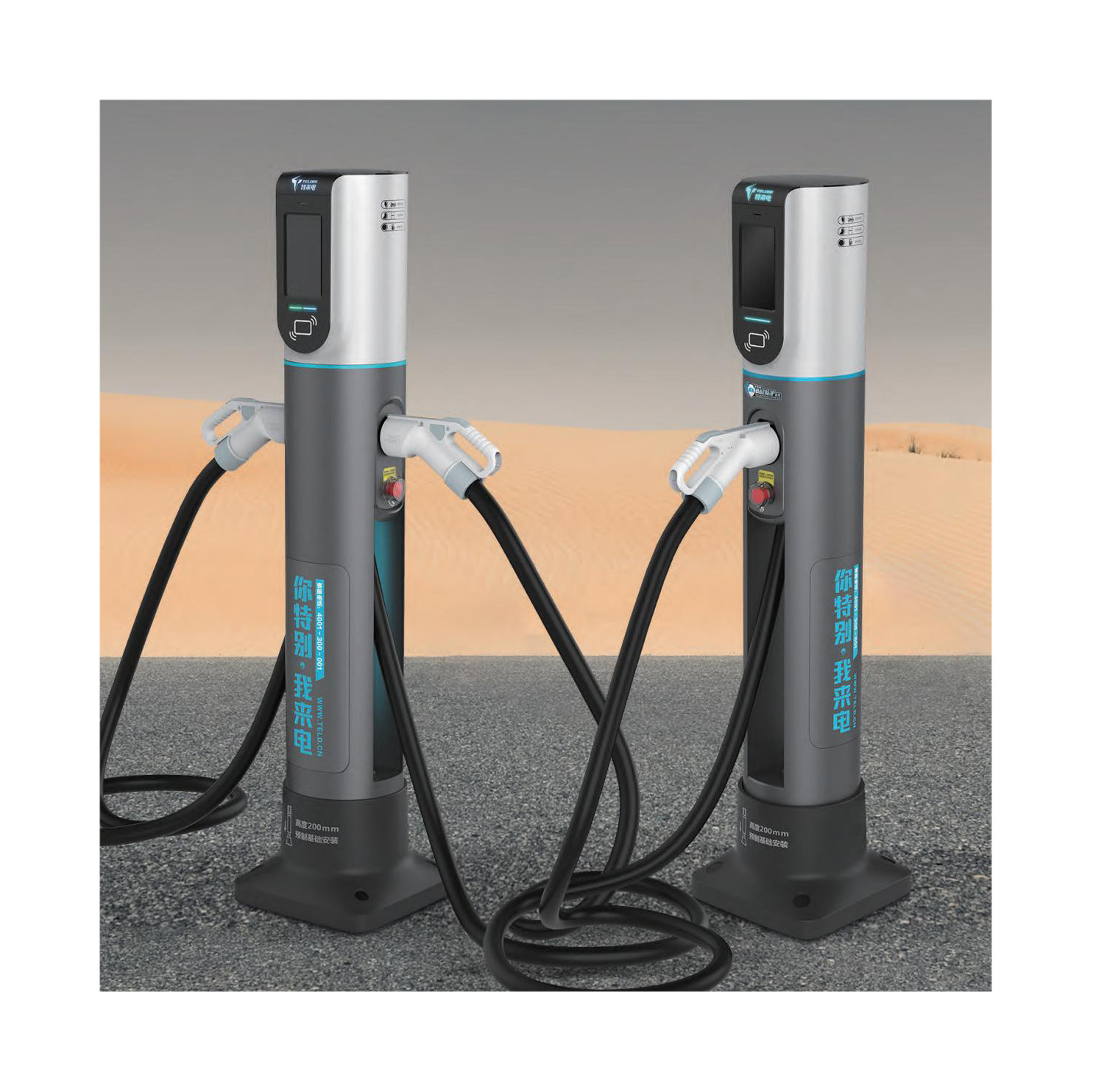

Floor Type Dc Charging Terminal
Product Model:
TZD-H-L-250-HMI
Rated voltage: DC950V
Output current: GB/T 20234.3-2015; 0 to 250A/Q
Product size (W×D×H) : 350mm×350mm×1400mm
Wall-Mounted Dc Charging Terminal
Product Model: TZD-H-BG-250-HMI
Output voltage: DC950V
Output current: GB/T 20234.3-2015; 0~250A/Q
Product size(WxDxH)：350mm×350mm× 1400mm
Cantilever Dc Charging Terminal
Product model: TZD-H-X-250
Rated voltage: 950VDC
Output current :GB/T 20234.3-2015; 0-250A/Q
Product size: 350mm×350mm ×1400mm (excluding cantilever bracket)
Liquid Cooled Dc Charging Terminal
Product model: TZD
Rated current: 600A
Mechanical life: no load insertion > 10000 times
Product size (w×DxH) : 550mm×480mm×2220mm
The fourth generation 7kW integrated AC charger
Model: TCDZ-AC220/070
Product size: 213mm× 132mm ×530mm
Gun length: 5m
/
Output current :0-32A
Input and output voltage: AC220V±20%
40kW integrated DC charging pile
Model :TCDZ-DC0.75/40
Input voltage range :323VAC-437VAC
Output voltage range :50VDC-750VDC
Output power :40kW
/
Charging efficiency :≥95%
Charging interface :1*5m
/
weight :< 60kg
Product size W x D x H: 470mm x 255mm x 650mm
80kw Integrated Dc Charging Pile
Model :TCDZ-DC1.00/80
Voltage range: Input 323VAC~437VAC
Output 50VDC~950VDC
Output power: 80kW
/
Charging efficiency: > 95%
Size W×D×H:650mm×520mm× 1800mm
weight 260kg (excluding modules)
120kw/160kw Integrated Dc Charging Pile
Product Model :(TCDZ-DC1.00/120kw) (TCDZ-DC1.00/160kw)
Voltage range: Input 323VAC~437VAC
Output: 50VC-950VDC
Charging efficiency > 95%
weight < 300kg (excluding modules)
Size W x D x H: 850mm x 700mm x 1800mm
TDC30 series 120kW integrated DC charger
Model :TCDZ-DC1.0/120
Charging cable length: 2*5m
Output voltage range: DC200V-DC1000V(constant power: 300-1000V)
Size (W×D×H) : 680mm ×710mm × 1800mm
K series 180 kW integrated DC charger
Model: TCDZ-DC1.0/180
Charging cable length: 2*5m
Output voltage range: DC200V-DC1000V(constant power: 300~1000V)
Overall dimensions: (W×D×H)680mm×820mm × 1800mm
