Quick Details
-
Product name:
-
DWJ 3B Induced Polarization Resistivity Receiver
-
Model:
-
DWJ-3B
-
Polar Resolution:
-
0.001%
-
Current Resolution:
-
0.01mA
-
Auto compensation:
-
0~±1023mV
-
Humidity:
-
93%RH(+40℃)
-
Potential Precision:
-
±2% ±1 word
-
Brand:
-
SAMYON
-
Packing:
-
Carton
Quick Details
-
Warranty:
-
1 Year, 1 year
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
SAMYON
-
Product name:
-
DWJ 3B Induced Polarization Resistivity Receiver
-
Model:
-
DWJ-3B
-
Polar Resolution:
-
0.001%
-
Current Resolution:
-
0.01mA
-
Auto compensation:
-
0~±1023mV
-
Humidity:
-
93%RH(+40℃)
-
Potential Precision:
-
±2% ±1 word
-
Brand:
-
SAMYON
-
Packing:
-
Carton

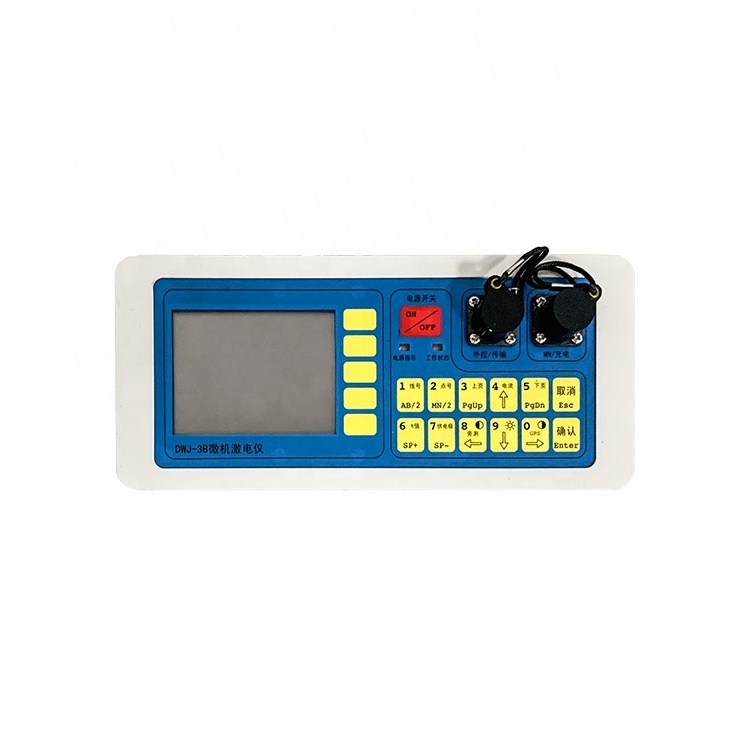

DWJ-3B Geophysical Resistivity Meter 0.01mA Resistivity Receiver
Product Description
DWJ-3B is anew generation DC-mode receiver that can be used in the measurment of Resistivity method and Induced polarization method,and can also display the Apparent Resistance Rate & Apparent Stimulation Rate,Half Decay time,Cumulative Sum,Degree of deviation,spontaneous potential,supply current and primary field,etc.
Applications
Search for Groundwater sources,Hydrological engineering, and Geological exploration,etc.
Specifications and paramenters
|
Input impedance
|
>100MΩ
|
Potential Precision
|
±2%±1 word
|
|
Primary Potential resolution
|
1uV maximum measuring capability:20V
|
Temperature
|
-10℃~+50℃（LCD 0 ℃）
|
|
Polar Resolution
|
0.001%
|
Polarization Precision
|
±2%±1 word
|
|
Current Resolution
|
0.01mA
|
Current Precision
|
±2%±1 word
|
|
Auto compensation
|
0~±1023mV
|
Temperature
|
-10℃~+50℃（LCD 0℃）
|
|
50HZ Restrain
|
>80dB(from 49.5~50HZ)
|
Secondary Field
Sampling Method
|
Fixed area of multi-blocks,4~7 blocks Single block of area,adjustable time delay and sampling width
|
|
LCD
|
3 Inch TTF true color;Display sounding curve and resistivity curve of unite section method.
|
|
|
|
Storage
|
16M nonvolatile storage, for long time
|
Measure Mode
|
auto external control;short conducting wire
|
|
Humidity
|
93%RH（+40℃）
|
External Dimension
|
270*130*190mm
|
