Quick Details
-
Place of Origin:
-
Yunnan, China
-
Protocol:
-
Standard SIP
-
Certification:
-
ce
-
Brand NamE:
-
GD
-
Product name:
-
E1 voice Media Trunking Gateway
-
Function:
-
Calling Terminal
Quick Details
-
Type:
-
Other
-
Brand Name:
-
Grandstream
-
Model Number:
-
HT701
-
Place of Origin:
-
Yunnan, China
-
Protocol:
-
Standard SIP
-
Certification:
-
ce
-
Brand NamE:
-
GD
-
Product name:
-
E1 voice Media Trunking Gateway
-
Function:
-
Calling Terminal
Products Description
|
Interfaces
|
|
|
Telephone Interfaces
|
One (1) FXS port (RJ11)
|
|
Network Interfaces
|
One (1) 10/100Mbps auto-sensing ethernet ports (RJ45)
|
|
LED Indicators
|
Power, Internet, LINK/ACT
|
|
Factory Reset Button
|
Yes
|
|
Voice, Fax, Modem
|
|
|
Telephony Features
|
Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
|
|
Voice Codecs
|
G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo
cancellation |
|
Fax Over IP
|
T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
|
|
Short/Long Haul Ring Load
|
5 REN, up to 1km on 24AWG line.
|
|
Caller ID
|
Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
|
|
Polarity Reversal/Wink
|
Yes
|
|
Signaling
|
|
|
Network Protocols
|
s TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE, STUN, SIP (RFC3261), SIP over TCP/TLS,
SRTP, TR069, IPV4 |
|
QoS
|
Layer 2 (802.1Q VLAN/802.1p) and Layer 3 (ToS, Diffserv, MPLS)
|
|
DTMF Method
|
In-audio, RFC2833 and/or SIP INFO
|
|
Provisioning and Control
|
HTTP, HTTPS, TELNET, TFTP, TR-069 , secure and automated provisioning using AES encryption, syslog
|
|
Security
|
|
|
Media
|
SRTP
|
|
Control
|
TLS/SIPS/HTTPS
|
|
Management
|
Syslog support, telnet, remote management using web browser
|
|
Physical
|
|
|
Universal Power Supply
|
Input: 100-240VAC, 50-60Hz
Output: 12V VDC/0.5A |
|
Environmental
|
Operational: 32º – 104ºF or 0º – 40ºC
Storage: 14º – 140ºF or -10º – 60ºC Humidity: 10 – 90% Non-condensing |
|
Dimension and Weight
|
25mm x 65mm x 86, 0.31kg
|
|
Compliance
|
FCC (Part 68 & 15B), C-Tick, AS/NZS CISPR22, CISPR24, CE, EN55022, EN55024, TBR21, EN60950, EN61000-3-2, EN61000-3-3, UL (Power
supply) |

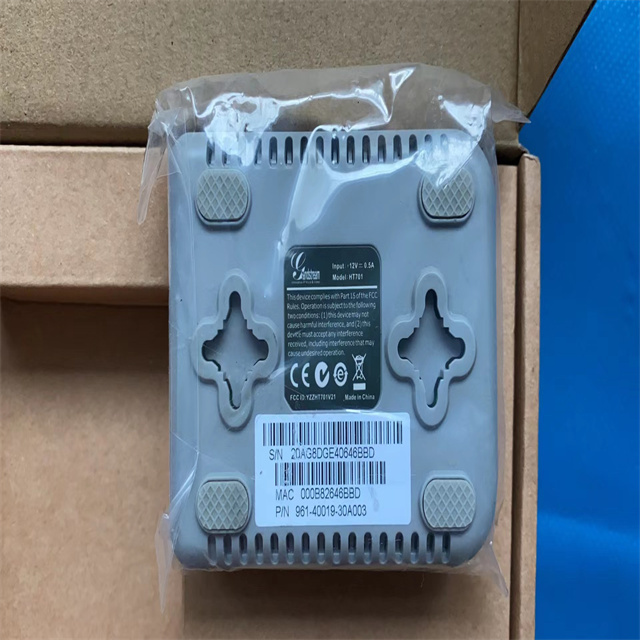

The HT701 analog telephone adapter (ATA) allows users to create a high-quality and manageable IP telephony solution for individual analog phones in a home or office application. The product features 1 FXS port and 1 10/100Mbps port to extend VoIP services to an analog phone.
Features
---1 FXS analog telephone port, 10/100 Mbps port
---Advanced telephony features include caller ID, call waiting
---Supports up to 1 SIP account
---Status LED for power, internet, LINK/ACT and phone status
---3-way voice conference, transfer, forward, do not disturb, message indicator, multi-language voice prompts, T.38 fax, flexible dial plan and more
Features
---1 FXS analog telephone port, 10/100 Mbps port
---Advanced telephony features include caller ID, call waiting
---Supports up to 1 SIP account
---Status LED for power, internet, LINK/ACT and phone status
---3-way voice conference, transfer, forward, do not disturb, message indicator, multi-language voice prompts, T.38 fax, flexible dial plan and more
