Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YONGNUO
-
Model Number:
-
YNT01
-
Torque:
-
6000
-
Speed (RPM):
-
custom made
-
Material:
-
Aluminum
-
Port:
-
Ningbo/Shanghai
-
Warranty:
-
1 Year
-
Color:
-
Black/ Silver White
Quick Details
-
Speed(RPM):
-
2600rmp
-
Continuous Current(A):
-
2.5A
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YONGNUO
-
Model Number:
-
YNT01
-
Torque:
-
6000
-
Speed (RPM):
-
custom made
-
Material:
-
Aluminum
-
Port:
-
Ningbo/Shanghai
-
Warranty:
-
1 Year
-
Color:
-
Black/ Silver White

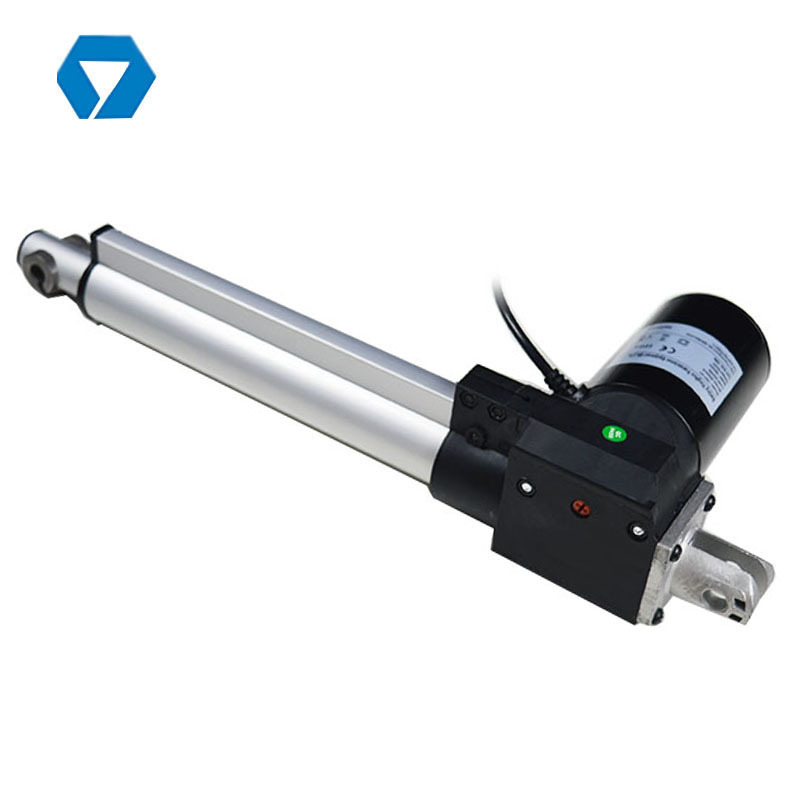

The linear actuators are widely used in Construction machinery, electric care bed, electric operating bed, electric traction bed, electric massage chair, electric wheelchair, electric lift cabinet,Electric treadmill, LCD TV lift frame, bedside cabinet LCD TV intelligent hiding device, camera electric lift bar, wedding props push and pull institutions need to run linear Institutions of the occasion, the product design novel, self-locking performance is good, no steam source / oil, easy to install simple
| LINER ACTUATOR YNT-01 TECHNICAL PARAMETER | |||
| Product Name | YNT-01 Linear Actuator | Input voltage | 12/24VDC |
| Load capacity | Max6000N(push)/6000(pull) | Stroke | 50mm~600mm(Customized Stroke Available) |
| Free load speed | 30mm/s(500N) | Operation temperature | -26℃~+65℃ |
| Full load speed | 4mm/s(6000N) | Protection class | IP54 |
| Duty cycle |
20%(2 minutes continuous use in 8minutes
)
|
Limit switch | Built-in |
| Output Power | 60w | Noise level | <=50dB |
| Pot | Shanghai/Ningbo | Control mode | wired or wireless |
| Certificate | CE, RoHS | Minimum installation distance | stroke+175mm |
Load Capacity and Speed performance:
YNT-01 linear actuator support several load and speed based on different worm gear ratio.
|
Dynamic Load Force |
6000N |
3000N |
1500N |
500N |
|
Static Load Force |
6000N |
3000N |
1500N |
500N |
|
Speed with Load |
5mm/s |
10mm/s |
20mm/s |
30mm/s |
|
Input Voltage |
12/24VDC |
|||
|
Fully Retracted Status
The length while fully retracted ( Installation Length ) is Stroke length+175mm, e.g., the stroke is 200mm, the Installation Length would be 375mm (200+175mm). |
Fully Extended Status The length while fully extended length is Stroke length*2+175mm, e.g., the stroke is 200mm, the fully extended Length would be 575mm (200*2+175mm). |
Material List:
| DC drive motor | Pure brass turbine (custom) | Aluminum alloy outer tube |
| chassis | Screw and turbine | Micro Switch |
Mounting Drawing in millimeter:
Common Standard Installation length:Customization
| Stroke length (mm) | 50 | 100 | 200 | 300 | 400 | 500 | 600 |
| Installation Length (mm) | 225 | 275 | 375 | 475 | 575 | 675 | 775 |
| Weight(KG) | 1.75 | 1.85 | 2.05 | 2.25 | 2.45 | 2.65 | 2.85 |
|
Square flat base
|
Aluminum base(standard
)
|
| Iron base | Black rectangular base |
Rod ends bearing |
Punch holes |
| Optional different specifications Rod ends bearings. | standard M8 holes or change the mounting Hole's Diameter. |
Inner Tube Slot connector |
Increase the Installation length |
| standard x6mm slot |
You can ask us to increase the installation length. e.g., sthoke length 100mm, the standard installation length is 275mm, we can make it for 300mm or more. |
|
External thread
Batch can be customized external thread |
Brackets & Holders |
Assembly Image
We also accept bracket & holder customization, please tell us your requirements, we will give out a 3D drawing and a good price for you.
YNT-01 linear actuator— Quality Certification:ROHS and CE
Our Company:
Welcome to YONGNUO!
Nanjing Yongnuo Transmission Equipment Co., Ltd specialize in manufacturing linear actuator, control box and handset. Our products are widely used in sofa, bed lifting, TV lifting, hospitable bed, window opener, door opener, industrial equipment, agricultural machinery, Sanitation Sweeper, Special vehicles and solar tracking. We are dedicated to producing products with high quality and reasonable price, meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction. In one word, we are your ideal cooperator. Choose us, you will choose success!
Company Photo
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How much is the packaging size?
A: Packing size is in accordance with your order, your product specifications to determine the package size.
Q: How much does shipping cost and what shipping methods do you support?
A: Shipping cost is calculated based on the weight of the order and the distance it is travelling;
Transport of large trucks to the seaport and international transport cooperation
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide customized Functions ?
A: Yes, we can design and program as your requirements.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
