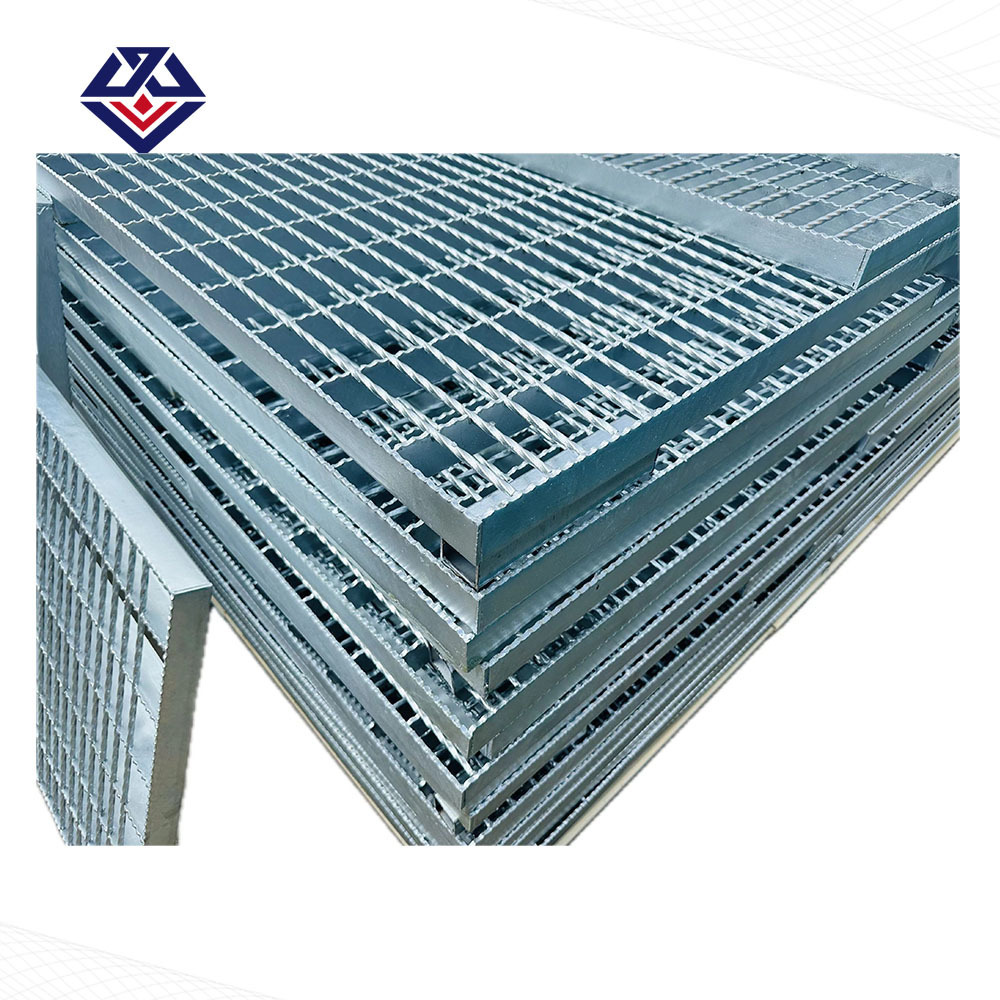

Steel grating
, also known as bar grating or metal grating, is an open grid assembly of metal bars, in which the bearing bars,
running in one direction, are spaced by rigid attachment to cross bars running perpendicular to them or by bent connecting bars
extending between them, which is designed to hold heavy loads with minimal weight. It is widely used as floors, mezzanines, stair
treads, fencing, trench covers and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading
areas, boiler equipment and heavy equipment areas, etc.
.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Product name:
-
steel grating
-
Material:
-
Steel Pipe
-
Color:
-
Grey
-
Surface treatment:
-
Galvanzied
-
Keywords:
-
metal grating
-
Packing:
-
Plastic Film + Metal Pallet
-
Size:
-
Customer Size
-
Certification:
-
ISO9001
-
MOQ:
-
50 Sets
-
Design:
-
Customized Desgin
Quick Details
-
Project Solution Capability:
-
3D model design
-
Application:
-
Workshop
-
Design Style:
-
Midcentury
-
Place of Origin:
-
China
-
Product name:
-
steel grating
-
Material:
-
Steel Pipe
-
Color:
-
Grey
-
Surface treatment:
-
Galvanzied
-
Keywords:
-
metal grating
-
Packing:
-
Plastic Film + Metal Pallet
-
Size:
-
Customer Size
-
Certification:
-
ISO9001
-
MOQ:
-
50 Sets
-
Design:
-
Customized Desgin
|
Specification
|
|
|
|
|
||||
|
Bearing Bar
|
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
|
|
|
||||
|
Bearing Bar Pitch
|
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
|
|
|
||||
|
Twisted Cross Bar Pitch
|
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
|
|
|
|
||||
|
Material Grade
|
ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,
Mild steel & Low carbon steel, etc
|
|
|
|
||||
|
Surface Treatment
|
Black, self colour, hot dip galvanized, painted, spray coating
|
|
|
|
||||
|
Grating Style
|
Plain / Smooth, Serrated /teeth, I bar, serrated I bar
|
|
|
|
||||
Cowan is a full-service grating supplier. All our products are available in either stock panels, or fully fabricated to suit your individual requirements.
Our Sales, Engineering, Drafting, and Fabrication departments can take your requirements from structural drawings to detailed grating drawings and on to completely fabricated ready-to-install grating.
Many of today's projects demand just-in-time delivery. Our experienced project managers can effectively coordinate your multi-release schedules to make sure your job site receives the grating it needs, when it needs it.
Cowan offers a wide variety of steel bar grating including standard, heavy duty and customized shapes and sizes with various finishes making our products suitable for all kinds of applications.
Our grating products are routinely used in the mining, petroleum, petrochemical, pulp & paper, water treatment, chemical, and power generation industries. They also are used extensively in the transportation industry, including railroad, airport and transport truck, and in the military.
* Cost-efficient production.
* Easy to install.
* Resistance welded production for rugged and one-piece constructed structure.
* Various application.
* Easy to install.
* Resistance welded production for rugged and one-piece constructed structure.
* Various application.
As a manufacture, Cowan Fence specializes in producing different kinds of wire mesh fence & steel grating
Since already has 12 years of experience, now we can finish Cowan Fence is well-equipped to complete International Government Big
Tenders, even we have 4-years’ experience to cooperate with the Fortune 500 Companies.
Cowan Fence Wire mesh fence like Standard Welded Steel Grating Press-locked Steel Grating Steel Gratings Vs Stone Gratings Plain flat bar with twisted steel rod Plain flat bar with round steel rod Serrated-flat bar with twisted steel rod Serrated-flat bar with round steel rod I-shape flat bar with Twisted steel rod I-shape flat bar with Round steel rod I-shape serrated flat bar with Twisted steel rod I-shape serrated flat bar Round steel rod
type & Square deal type) are very famous;
Cowan Fence Wire mesh cages like Wire Mesh Container, Forklift Safety Cages, Dog kennels and Chicken cages selling very well.
At Cowan Fence Responsibility, Diligence, Wisdom, Humility, Innovation, Excellence, Introspection have always been our standards
and guidelines for doing things, and we will do better and better
Since already has 12 years of experience, now we can finish Cowan Fence is well-equipped to complete International Government Big
Tenders, even we have 4-years’ experience to cooperate with the Fortune 500 Companies.
Cowan Fence Wire mesh fence like Standard Welded Steel Grating Press-locked Steel Grating Steel Gratings Vs Stone Gratings Plain flat bar with twisted steel rod Plain flat bar with round steel rod Serrated-flat bar with twisted steel rod Serrated-flat bar with round steel rod I-shape flat bar with Twisted steel rod I-shape flat bar with Round steel rod I-shape serrated flat bar with Twisted steel rod I-shape serrated flat bar Round steel rod
type & Square deal type) are very famous;
Cowan Fence Wire mesh cages like Wire Mesh Container, Forklift Safety Cages, Dog kennels and Chicken cages selling very well.
At Cowan Fence Responsibility, Diligence, Wisdom, Humility, Innovation, Excellence, Introspection have always been our standards
and guidelines for doing things, and we will do better and better
