Quick Details
-
Brand Name:
-
Hongrun
-
Weight:
-
5000 kg
-
Dimension(L*W*H):
-
3500*2200*2700mm
-
Drilling diameter:
-
90-400 mm
-
Drilling depth:
-
1-70 m
-
Drill pipe diameter:
-
76/89 mm
-
Screw drill pipe diameter:
-
130-400 mm
-
Screw drill pipe drilling depth:
-
20 m
-
One propulsion trip:
-
2.6 m
-
Power head torque:
-
13000 N.m
-
Rated power:
-
85 kw
-
Rotation speed:
-
110 r/min
-
Adapt to rock hardness:
-
6-20 F
Quick Details
-
Efficiency:
-
High Efficiency
-
Piling Speed(m/min):
-
3m/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hongrun
-
Weight:
-
5000 kg
-
Dimension(L*W*H):
-
3500*2200*2700mm
-
Drilling diameter:
-
90-400 mm
-
Drilling depth:
-
1-70 m
-
Drill pipe diameter:
-
76/89 mm
-
Screw drill pipe diameter:
-
130-400 mm
-
Screw drill pipe drilling depth:
-
20 m
-
One propulsion trip:
-
2.6 m
-
Power head torque:
-
13000 N.m
-
Rated power:
-
85 kw
-
Rotation speed:
-
110 r/min
-
Adapt to rock hardness:
-
6-20 F
Note
The listing price is only a deposit price, excluding shipping costs. Please note that if you would like to know the specific price, please contact us or send us an inquiry, and we can provide you with a detailed quotation. Thank you
Product Description
|

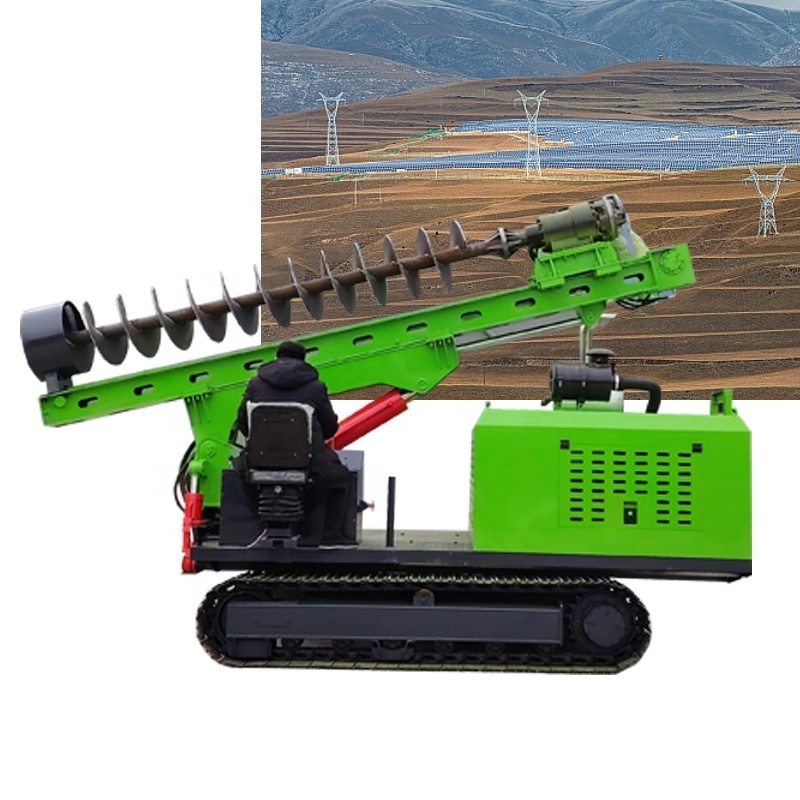

Standard Version Photovoltaic Pile Driver
|
Standard Version Photovoltaic Pile Driver
|
|
|
Model
|
HR-260Q
|
|
|
Drilling diameter
|
90-400 mm
|
|
|
Drilling depth
|
1-70 m
|
|
|
Drill pipe diameter
|
76/89 mm
|
|
|
Screw drill pipe diameter
|
130-400 mm
|
|
|
Screw drill pipe drilling depth
|
20 m
|
|
|
One propulsion trip
|
2.6 m
|
|
|
Engine
|
Yuchai 4105ZY
|
|
|
Power head torque
|
13000 N.m
|
|
|
Rated power
|
85 kw
|
|
|
Rotation speed
|
110 r/min
|
|
|
Adapt to rock hardness
|
6-20 F
|
|
The
Standard Version Photovoltaic Pile Driver
uses its high frequency vibration to vibrate the pile body at a high speed, and transmit the vertical vibration generated by the machine to the pile body, resulting in the change of the soil structure around the pile due to the vibration, and the strength is reduced.
The soil around the pile body is liquefied to reduce the frictional resistance between the pile side and the soil body, and then the pile is sunk into the soil by the down pressure of the excavator, the solar photovoltaic pile driver and the self-weight of the pile body. When pulling out the pile, with one side vibrating, pull up the pile with the lifting force of the excavator. The excitation force required by the solar photovoltaic pile driver should be comprehensively determined according to the soil layer, soil quality, moisture content of the site, and the type and structure of the pile.
We have many models to choose from and support customization.
