Quick Details
-
Light Source:
-
Quartz Tube
-
Lifespan (hours):
-
8000h
-
Working Time (hours):
-
8000h
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Neutral or OEM
-
wavelength(nm):
-
254
-
UV Optiical Power(μW/cm2):
-
15
-
Appplication Area(㎡):
-
15
-
Rated Power:
-
H shape uv bulb
-
Color:
-
Transparent
-
Lamp power:
-
13W
-
Lamp Diameter:
-
12mm
-
Lamp length:
-
186/164mm
-
Material:
-
quartz
-
Product Name:
-
H shape uv bulb
-
Wavelength:
-
254nm
-
Tube material:
-
Clear Quartz Glass
-
Lamp Base:
-
G23
-
Color Rendering Index(Ra):
-
95
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
15
-
Warranty(Year):
-
1-Year
-
Application:
-
Home, Medical, Hotel, Office
-
Light Source:
-
Quartz Tube
-
Lifespan (hours):
-
8000h
-
Working Time (hours):
-
8000h
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Neutral or OEM
-
wavelength(nm):
-
254
-
UV Optiical Power(μW/cm2):
-
15
-
Appplication Area(㎡):
-
15
-
Rated Power:
-
H shape uv bulb
-
Color:
-
Transparent
-
Lamp power:
-
13W
-
Lamp Diameter:
-
12mm
-
Lamp length:
-
186/164mm
-
Material:
-
quartz
-
Product Name:
-
H shape uv bulb
-
Wavelength:
-
254nm
-
Tube material:
-
Clear Quartz Glass
-
Lamp Base:
-
G23
-
Color Rendering Index(Ra):
-
95

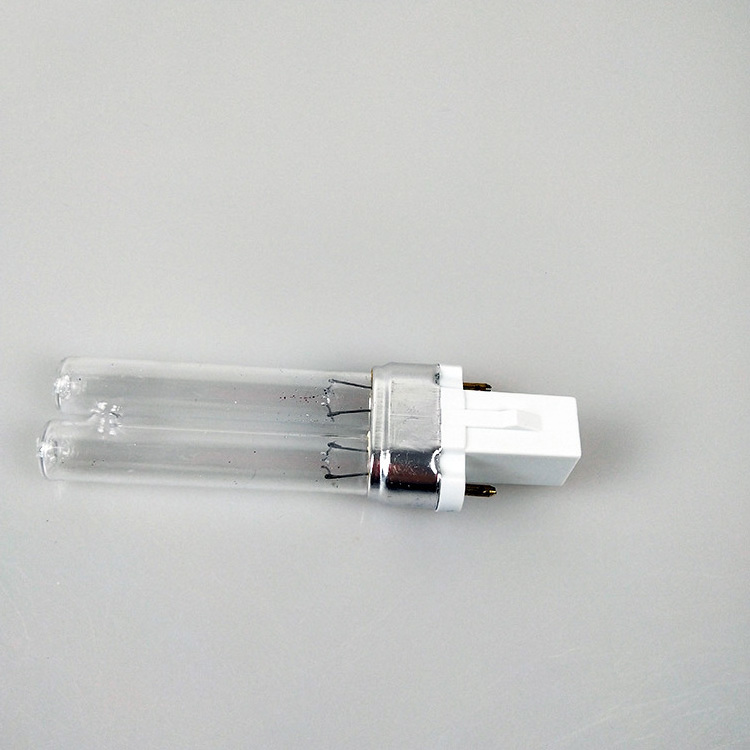

H UV Lamp
Product Description
1. The inner wall of the lamp tube is coated with a protective film, so that the uv output attenuation of the lamp during the service life is very small, less than 15%.
2. It can output about 40 to 60 percent more uv energy than the standard size of uv.
3. More energy saving and help reduce the volume of sterilization equipment and reduce the number of tubes in the equipment.
4. Suitable for low temperature environment. For example, in water cooling environment and air conditioning blower system, the low temperature environment will not affect the ultraviolet output, but will increase the output.
| Lamp Power | Tube Diameter | Lamp Length | Lamp Current | Lamp Voltage | 254nm UV output@1M | Average Life |
| W | mm | mm | mA | V | μm/cm² | H |
| 5W | 12 | 107/85 | 180 | 30-40 | 14 | 8000 |
| 7W | 12 | 137/115 | 175 | 42-62 | 16 | 8000 |
| 9W | 12 | 167/145 | 170 | 54-66 | 23 | 8000 |
| 11W | 12 | 237/215 | 155 | 81-99 | 38 | 8000 |
| 13W | 12 | 186/164 | 300 | 48-62 | 40 | 8000 |
| 18W | 17 | 217/195 | 375 | 52-64 | 57 | 8000 |
| 24W | 17 | 317/295 | 345 | 77-97 | 94 | 8000 |
| 36W | 17 | 411/379 | 435 | 98-118 | 147 | 8000 |
| 40W | 17 | 533/501 | 385 | 130-150 | 155 | 8000 |
| 55W | 17 | 533/501 | 550 | 110-130 | 170 | 8000 |
