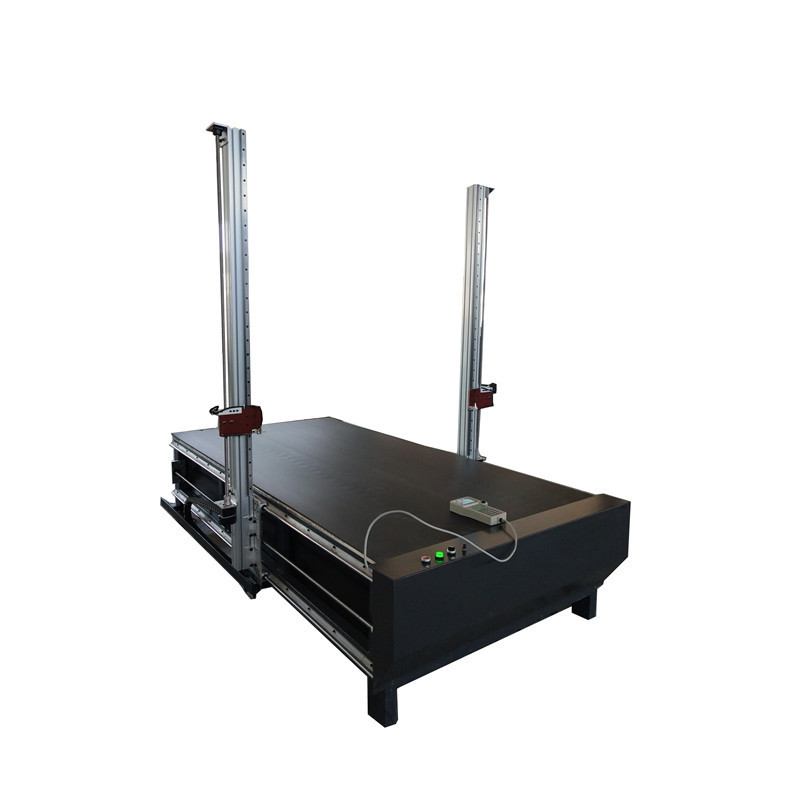

3d 4 axis eps foam expanded Polyurethane styrofoam hot wire cnc foam cutting machine
3d 4 axis eps foam expanded Polyurethane styrofoam hot wire cnc foam cutting machine
3d 4 axis eps foam expanded Polyurethane styrofoam hot wire cnc foam cutting machine
3d 4 axis eps foam expanded Polyurethane styrofoam hot wire cnc foam cutting machine
3d 4 axis eps foam expanded Polyurethane styrofoam hot wire cnc foam cutting machine
3d 4 axis eps foam expanded Polyurethane styrofoam hot wire cnc foam cutting machine
3d 4 axis eps foam expanded Polyurethane styrofoam hot wire cnc foam cutting machine
3d 4 axis eps foam expanded Polyurethane styrofoam hot wire cnc foam cutting machine

3d 4 axis eps foam expanded Polyurethane styrofoam hot wire cnc foam cutting machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $4000
≥3 Sets
US $3800
≥7 Sets
US $3500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Max.Product Size(H)(mm):
1300 mm
Place of Origin:
Shandong, China
Brand Name:
WISE
Year:
2021
Voltage:
220v
Dimension(L*W*H):
1750*3750*1600mm
Control System:
Mach3
Power (kW):
1.5
Weight (KG):
260 KG
Keywords:
hot wire foam cutting machine
Machine frame:
Steel structure
Application:
EPS cutting, foam display making, construction, packaging industry
Driving system:
high speed stepper driver
Wire quantity:
single wire/ multi wire optional
Turn table:
Optional
Guiding system:
Square rail
Computer:
included
Control system:
Mach3
Software:
Caxa Cad

Quick Details

Cutting Speed(m/min):
1 - 1.2 m/min
Max.Product Size(L)(mm):
3000 mm
Max.Product Size(W)(mm):
1300 mm
Max.Product Size(H)(mm):
1300 mm
Place of Origin:
Shandong, China
Brand Name:
WISE
Year:
2021
Voltage:
220v
Dimension(L*W*H):
1750*3750*1600mm
Control System:
Mach3
Power (kW):
1.5
Weight (KG):
260 KG
Keywords:
hot wire foam cutting machine
Machine frame:
Steel structure
Application:
EPS cutting, foam display making, construction, packaging industry
Driving system:
high speed stepper driver
Wire quantity:
single wire/ multi wire optional
Turn table:
Optional
Guiding system:
Square rail
Computer:
included
Control system:
Mach3
Software:
Caxa Cad
Product Overview

3d 4 axis eps foam expanded Polyurethane styrofoam hot wire cnc foam cutting machine

Hot wire foam cutting is 2 axis foam machine, used to cut eps foam, can be applied into Architectural shapes, Crown Molding, Columns, mockups, Capillars, Medallions. EPS and XPS sandwich panels for roofing and construction.Packaging and Modelers Surveillance, UAV, RC, Wings, cores and airfoils.Theme Parks. Aerospace,architectural and Mechanical departments in universities and colleges Monument Signs, 3D signs,Logos, Letters, Props,Prototyping, museum exhibits, Trade Shows Boats, surfboards, canoes and paddle boards
FEATURES AT A GLANCE
Features:
1. competitive price
2. light structure, weight about 260kgs
3. mach3 controller with computer,software installed
4. with turnable table

Outlook 1
Outlook 2
Outlook 3
PRODUCT SPECIFICATIONS
Technical Parameter of economic hot wire foam cutting machine cnc
Cutting area
Length 3000mm*width 1300mm*height 1300mm,
Table surface
wood table for eps foam cutting machine
Traveling Positioning Accuracy
±0.3mm
Re positioning Accuracy
±0.2mm
Working dpi
±0.4mm
Rotating Speed
0-4000mm/min
Motor speed
100-5000mm/min
Machine working speed
400-500mm/min max. if use imported wire, working speed will be about 1200-1500mm/min max
Machine Structure
light structure
Command
G-code*.u00*.mmg*.plt
Working voltage
AC220V/50HZ or 110V 60HZ
Weight with package
260KGS/300KGS
Package size
1.75*3.75*1.6M
Control System
MACH3 with computer
Guide Rail
round guide
Humidity
10%-90%(without condensation)
Temperature
10-50℃
Gear box
Small gear box
Transmission
Rack pinion
Regulator
1kva
Driving system
high speed stepper driver and motor
Synchronous wheel x,y
5M,1:5
Synchronous belt
5M-285
Synchronous wheel Z
5M 20 wheel
Gear-wheel
YCAA670
Gear shaft
93
Control box
Separate
Software
caxaCAD
PRODUCT CONFIGURATION
Copper Pipe
Turn Table
Nichrom Hot Wire
Regulator
Towline
Stepper Motor
Samples made by hot wire eps foam cnc cutting machine
SIMILAR PRODUCTS
Heavy duty high precision eps foam hot wire styrofoam cutter
CNC Wire cutting machine for rigid and hard foam such as eva foamed cement
Heavy duty foam cnc router styrofoam eps foam sculpture engraving machine foam cnc router
SALES AND SERVICE NETWORK
FAQ
Q 1. How many days can I expect the machine?
A 1: For fiber laser marking machine, if with standard device, its ready to ship.
Other kind of cnc wood machine and laser
machines delivery time is about 20-30 days according to quantity and special device request

Q 2: How many years warranty can I get?
A 2: We provide 3 years warranty for Fiber Laser Machine,Provide 1 year warranty for Other cnc and laser machine such as wood cnc router, stone cnc router, foam cutting machine, flatbed cutter etc.

Q 3: How about Training and after sale service?
A 3: WE have operation and installation video for woodworking machine, metal fiber laser marking machine, foam machine, stone machine,co2 laser cutting machine etc. WE provide 24 online support for software operation, problem setting etc.

Q 4: Whats will be transportation way for the machines?
A 4: for small machines such as fiber laser marking machine, handheld laser welding machine, 3030 desktop cnc router, we can ship it through air, only take 5-7 days to arrive customer's place. For big machines such as fiber laser cutting machine, flatbed cutting machine, hot wire foam cutter, atc cnc router, we will use sea transportation.

Q 5: What will be the package for cnc and laser machine?
A 5: For LCL shipment based on buy 1 set or 2 set, we will use fumigation-free plywood case. For mass purchase such as 6-20 sets panel saw, 6-9 sets 1325 cnc router,we will use film pearl cotton package, and ship by 40'HQ container.
Product packaging
package for wood cnc router, plasma cutting machine and laser machine.
For LCL shipment, such as buying one set cnc router or laser machine, we will use seaworthy fumigation-free plywood case

For FCL shipment, such as buying 6-9 sets wood cnc router or plasma cutting machine, we will use soft package, we use film and
pearl cotton to pack the machine, sometimes will unassemble machine gantry, motor etc in order to load more sets into one
container to help customer save shipping cost of each woodworking machine.
