Steel box plc splitter with sc apc connectors plc 1 16 fiber optic splitter

Steel box plc splitter with sc apc connectors plc 1 16 fiber optic splitter

FOB Reference Price: Get Latest Price

≥20 Pieces

US $3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: EFON

Use:: fiber splitter

Warranty Time:: 1 years

Splitting Ratio:: 1/2, 1/4, 1/8, 1/16, 1/32, 1/64. 2/8 , 2/4

Input:: 1, 2 input, or on request

Fiber Type:: G657A

Fiber Length:: 1m, 2m, 3m, 5m, on your request

Wavelength(nm):: 1260~1650

Insertion Loss (dB):: ≤≤14.2 db(1*16)

Return Loss (dB):: >50

Operating and Storage Temperature:: -40~+85 ℃

Directivity (dB):: ≥ 55

Quick Details

Type:: PLC splitter

Model Number:: 1x16 optical splitter

Place of Origin:: Zhejiang, China

Brand Name:: EFON

Use:: fiber splitter

Warranty Time:: 1 years

Splitting Ratio:: 1/2, 1/4, 1/8, 1/16, 1/32, 1/64. 2/8 , 2/4

Input:: 1, 2 input, or on request

Fiber Type:: G657A

Fiber Length:: 1m, 2m, 3m, 5m, on your request

Wavelength(nm):: 1260~1650

Insertion Loss (dB):: ≤≤14.2 db(1*16)

Return Loss (dB):: >50

Operating and Storage Temperature:: -40~+85 ℃

Directivity (dB):: ≥ 55

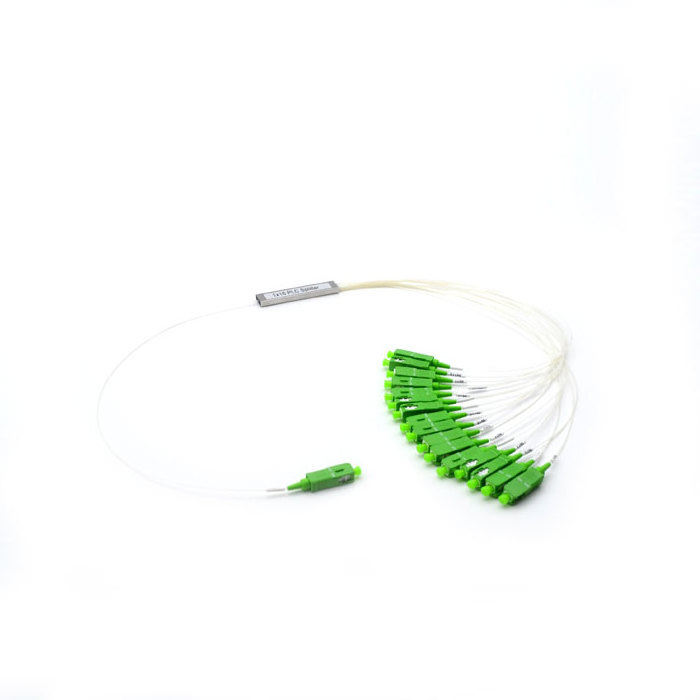

Steel box plc splitter with sc apc connectors plc 1 16 fiber optic splitter

Product Description

Overview

This optical splitter use Planer Light wave Circuit (PLC) technology for split ratio 2, 4, 8,16, 32 and 64. Optical splitter micro tube type refers to the port 0.9 mm slip-on fiber multi channel direct output with a compact design and easy to use.Application for FTTXnetwork, LAN/WAN or CATV network.

Features

Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40℃to 85℃
High Reliability and Stability

Specifications

Wavelength(nm)		1260-1650
Parameters	1 ×2	1 × 4	1 × 8	1 × 16	1 × 32	1 × 64	2 × 4	2 × 8	2 × 16	2 × 32
Insertion Loss ( with connector ) (dB)	≤ 4.2	≤ 7.7	≤ 11.2	≤ 14.2	≤ 17.5	≤ 21.5	≤ 8.3	≤ 12	≤ 15	≤ 17.7
Insertion Loss ( W/O connector ) (dB)	≤ 4.0	≤ 7.4	≤ 10.7	≤ 13.7	≤ 16.9	≤ 21	≤ 7.8	≤ 11.5	≤ 14.5	≤ 18.2
Uniformity (dB)	≤ 0.4	≤ 0.8	≤ 1.0	≤ 1.4	≤ 1.9	≤ 2.7	≤ 1.7	≤ 1.7	≤ 2.2	≤ 2.7
PDL(dB)	≤ 0.2	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.4	≤ 0.2	≤ 0.4	≤ 0.4	≤ 0.4
Return Loss(dB)		> 50
Directivity(dB)		> 55
Temperature Range ( ℃ )		-40 ~ +75
Storage Temperature( ℃ )		-40 ~ +85
