Pure Metal titanium Sputtering Target Price High Purity Metal Magnetron titanium Sputter Target For PVD Coating

Pure Metal titanium Sputtering Target Price High Purity Metal Magnetron titanium Sputter Target For PVD Coating

FOB Reference Price: Get Latest Price

≥1 Pieces

US $15

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: ATM

Model Number:: ATM-Ti

Application:: Surface coating

Technique:: melting

Grade:: titanium

Purity:: TiGr2

Surface:: Polishing Surface

Shape:: round shape

Color:: Grey

Package:: vaccum package

Usage:: Coating

Certificate::: ISO9001,COA,MSDS

MOQ:: 1pcs

Size:: dia79.5*40mm

Produce method:: melting

Quick Details

Powder Or Not:: Not Powder

Ti Content (%):: 99.2-99.999%

Place of Origin:: China

Brand Name:: ATM

Model Number:: ATM-Ti

Application:: Surface coating

Technique:: melting

Grade:: titanium

Purity:: TiGr2

Surface:: Polishing Surface

Shape:: round shape

Color:: Grey

Package:: vaccum package

Usage:: Coating

Certificate::: ISO9001,COA,MSDS

MOQ:: 1pcs

Size:: dia79.5*40mm

Produce method:: melting

Product Description

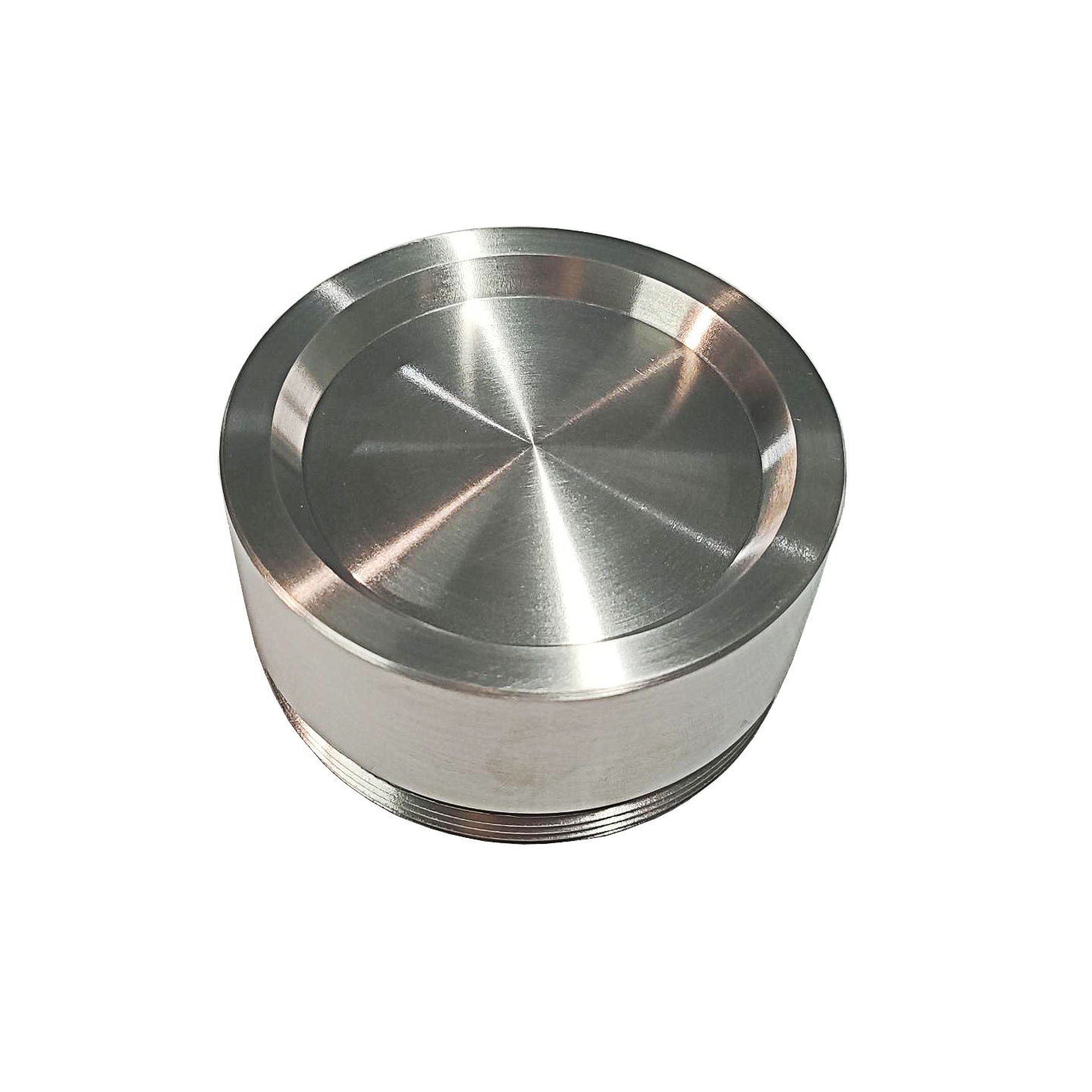

Round type titanium Gr2 target

Size: dia 79.5 mm and 40mm thickness
Popular standard size or OEM machining
Note: This is a special size targets

Purity level

Advanced Targets can offer a wide range of sputtering targets from purity of 99.5% to 99.995%

Advantage：

(1) Smooth surface without pore,scratch and other imperfection

(2) Grinding or lathing edge, no cutting marks

(3) Unbeatable level of material purity

(4) High ductility

(5) Homogeneous micro structure

(6) Laser marking for your special Item with name, brand, purity size and so on

Date sheet 1: Purity grades in different countries
Chemical formula	China	America	Russia	Japan
Industrial pure titanium	TA1	GR1	BT1-0	TP270
Industrial pure titanium	TA1-1	GR1	BT1-100
Industrial pure titanium	TA2	GR2		TP340
Industrial pure titanium	TA3	GR3		TP450
Industrial pure titanium	TA4	GR4		TP550
Ti-5Al-2.5Sn	TA7	GR6	BT5-1	TP5250
Ti-0.05Pd	TA8	GR16
Ti-0.05Pd	TA8-1	GR17
Ti-0.02Pd	TA9	GR7		TP340Pb
Ti-0.02Pd	TA9-1	GR11
Ti-0.3Mo-0.8Ni	TA10	GR22
Ti-8Al-1Mo-1V	TA11	Ti-811
Ti-6.5Al-1Mo-1V-2Zr	TA15

Popular Usage

All kinds of Ti targets including circle type, planar type, rotary type. And our products have been used in decorate coatings,
low-e glass, hard coatings, LCD display etc.

Improve wear resistance, reduce friction coefficient and prevent adhesion.

Details Images

High density
Uniform and fine grained micro structure
Homogeneous concerning distribution of chemical elements
Low content of residual impurities

Company Introduction

Advanced Targets Materials Co. , Ltd is one of the leading manufacturers of sputtering targets, arc cathodes and evaporation materials for PVD thin film companies worldwide. Advanced Targets has extensive experience in the manufacturing and development of sputtering targets and arc cathodes. Driven by the spirit of innovation, Advanced Targets has made many research and development progress, some of which cooperate with the Institute of Process Engineering of the Chinese Academy of Sciences and the National Center for Nonferrous Metals and Electronic Materials.

Advanced Targets products have provided services to the world's leading PVD service providers. Consistent high quality and cost-effectiveness are the main advantages of Advanced Targets. Relying on material science and material processing expertise,Advanced Targets has won a good reputation worldwide.

Driven by the mission of "innovation, integrity and quality", Advanced Targets has provided a series of high-quality sputtering targets and arc cathodes, which have been recognized by many well-known companies in the field of PVD films.

Our typical products :

Dimension /mm	Ti TA1	TiAl 30/70	TiAl 33/67	TiAl 50/50	TiAl 50/50	Cr 99.8%	CrAI 30/70	TiSi 80/20	WC 99.9%
*Φ6332**	•	•	•	•	•	•	•	•
*Φ10032**	•	•	•	•	•	•	•	•
*Φ10516**	•	•	•	•	•	•	•	•
*Φ16012**	•	•	•	•	•	•	•	•
*1707512*						•	•	•	•
*33117424*	•	•	•	•		•	•	•
*4008810*	•	•	•	•		•	•	•
*57417420*	•	•	•	•		•	•	•
*74119118*	•	•	•	•		•	•	•
*75415418*	•	•	•	•		•	•	•
*170113212*	•	•	•	•		•	•
Process	Melting	HIP	HIP	HIP	Melting	HIP	HIP	HIP	HIP

Other targets including TiAl-X and CrAl-X in accordance with customers' specifications are available on request.(X=Si,Nb,W,Mo etc)

CrAISiW / AITiCrSiX etc are also well used for some special needs.

Certification

1) All Advanced targets are produced under ISO9001 quality control.With Marks or labels on packing or products ,so we can track the all producing type and person.

(2)Every pcs of sputtering targets from the powder materials item&number, mixing workers,outgas and HIP time,machining person and packing details are all made ourselves. All of those step can promise you once a new sputtering target or method is created ,it could be copied and kept to support a stable quality products.

(3) With MSDS and COA test report for every single order.

Exhibition

Shipping & Packing

vacuum packing

Every pieces of the all targets will be in vacuum packing separately first to avoid oxidation,contaminated,contact touch and so on.

Non fumigation wooden box packing outside

Vacuum packing sputter will be packed in cartons with fixed support

After Sales Service

Laser marking

1. We can help Laser marking on every pcs of the sputter targets. Mark can be with your logo and item ,purity,size and so on.

2.With the Laser marking, we can help check,track the every pcs target the all producing process. Like how it mixed ,HIP time ,who
maching and clean it ,who pack it .

3.If there is some quality problem ,just need to show us the marks ,so we can find what happened in each process and find out how
to deal with it to avoid next time.
4.Free to return, reback quality products and free to make a new one immediately.

FAQ

1. Are you trading company or manufacturer ?

Advanced Targets: We are a professional manufacturer of PVD targets, powder metallurgical/Melting/plasma spray are the main process we focused on.

2．What is HIP process?

HIP is a short name of Hot isostatic Pressing. This technology is forming process combining simultaneous heating and pressing to consolidate powders in high temperature, high pressure as well as under argon(Ar) atmosphere, primarily used to eliminate voids and defects in materials. HIP is mainly applied to a wide range of Materials, it is the best fabrication methods for Cr targets and powder metallurgy aluminum alloy targets.

3. Do you have some experience if supplying hardcoating materials?

Advanced Targets: We have been keep supplying many kinds of targets servicing for Eifeler/Balzers/ Hauzer/Platit/Kobelco/isys and other coating systems. They are satisfied by our good service and stable products quality.

4: How long is your delivery time?

Advanced Targets: 15 days after order date for
those regular size or samples, Normally 30 days for batch quantity.

5. Do you have quality control system :

Advanced Targets: Yes, we have been ISO 9001 qualified since 2015.And our quality control system have been mutual accepted by IQNET(International Certification Network).

6: Do you have Minimum order quantity requirement?

Advanced Targets: For common products, we donot have MOQ requirement. For R&D products, we can supply sample.

7: What is your payment method?

Advanced Targets: T/T in advance, Paypal, Western Union and etc..
