Quick Details
-
Filling Accuracy:
-
±6mm
-
Voltage:
-
Due to clients's condition
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HG
-
Dimension(L*W*H):
-
1800*1200*2200mm
-
Weight:
-
1200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
SUS304
-
Filling Head:
-
4
-
Sealing head:
-
1
-
capacity:
-
700CPH
-
Suitable bottle type:
-
330ml~1000ml
-
Sterile air consumption:
-
0. 2 m3/min(0.4~0.6Mpa)
-
CO2 consumption:
-
260g/100L
-
PLC:
-
Siemens
-
After Warranty Service:
-
Online support
Quick Details
-
Machinery Capacity:
-
700CPH
-
Packaging Material:
-
Metal
-
Filling Material:
-
Beer, Milk, Water, Juice
-
Filling Accuracy:
-
±6mm
-
Voltage:
-
Due to clients's condition
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HG
-
Dimension(L*W*H):
-
1800*1200*2200mm
-
Weight:
-
1200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
SUS304
-
Filling Head:
-
4
-
Sealing head:
-
1
-
capacity:
-
700CPH
-
Suitable bottle type:
-
330ml~1000ml
-
Sterile air consumption:
-
0. 2 m3/min(0.4~0.6Mpa)
-
CO2 consumption:
-
260g/100L
-
PLC:
-
Siemens
-
After Warranty Service:
-
Online support
Small drink beer can filling machine beer canning line project
|
Model
|
HG4-1
|
|
Filling nozzle
|
4
|
|
Sealing nozzle
|
1
|
|
Filling capacity
|
500-700 CPH
|
|
Motor
|
0.55kw
|
|
Maximum filling pressure
|
0.3Mpa
|
|
Filling temperature
|
<4°C
|
|
Compressed Air consumption
|
0.1m3/min(0.4~0.6Mpa)
|
|
CO2 consumption
|
160g/100L
|
|
Can neck
|
Φ52~Φ90mm
|
|
Can height
|
105~240mm
|
|
Machine size
|
1800*1200*2200mm
|
|
Weight
|
450KG
|

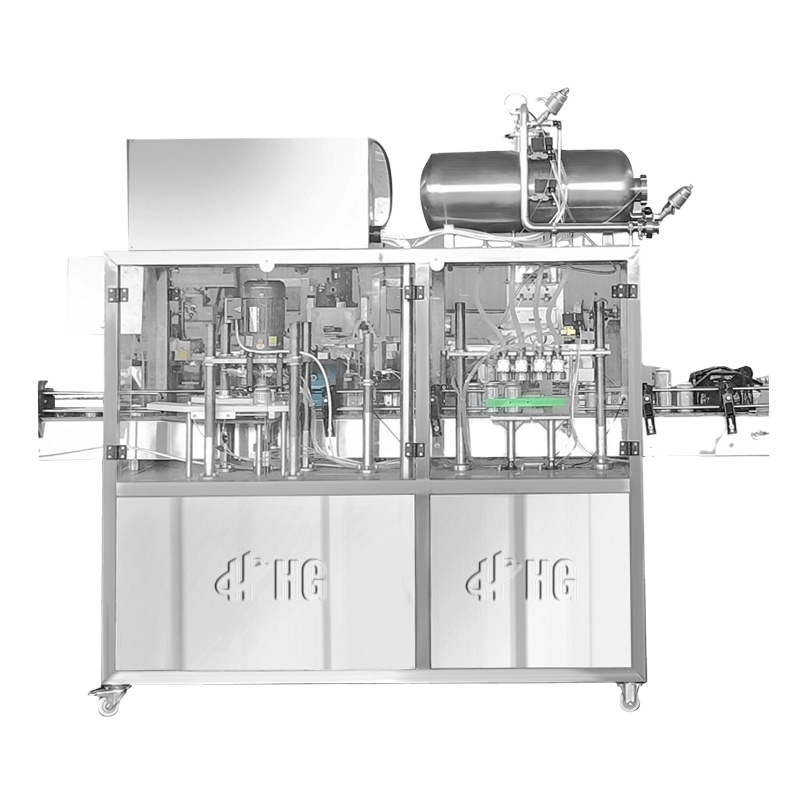

Fully-automatic 4-1 Can Beer Filling Machine
This 4-1 type fully automatic canning machine is special designed for medium capacity brewery/brew pubs. It's easy operating with high efficiency. The working flow includes CO2 purge, filling and then sealing the caps. All-in-one filling method design, the working is reliable.
Automatic beer bottle rinsing, filling , capping triblock machine main parts are automatic electronic control filling valve,
vacuum, preparation of pressure (Co2), the photoelectric liquid level detection, automatic filling process, CIP cleaning system, bottle deformation pieces, easy-won parts.
vacuum, preparation of pressure (Co2), the photoelectric liquid level detection, automatic filling process, CIP cleaning system, bottle deformation pieces, easy-won parts.
4-1 Semi Automatic Can Filling Machine
This 4-1 type semi automatic canning machine is special designed for small capacity brewery/brew pubs. It's easy operating with high efficiency.
12-1 Fully Automatic Can Filling Machine
This 12-1 type fully automatic canning machine is special designed for medium or large capacity breweries. It adopts counter pressure filling principle. It has advantages of fast filling speed, high precision.
20-4 Fully Automatic Can Filling Machine
This 20-4 type fully automatic canning machine is special designed for medium or large capacity breweries. It adopts counter pressure filling principle. It has advantages of fast filling speed, high precision in liquid level and it only starts filling when there is a can, otherwise it will not fill.working is reliable.
Advantage :
1). Using isobaric filling method.
2). It's easy operating with high efficiency.
3). All in one filling method design, the working is reliable.
4). It made of AISI304 stainless steel
5). The machine is special designed for medium capacity brewery and brew pubs
2). It's easy operating with high efficiency.
3). All in one filling method design, the working is reliable.
4). It made of AISI304 stainless steel
5). The machine is special designed for medium capacity brewery and brew pubs
|
Item
|
Production capacity
|
Filling method
|
Material
|
Dimensions
|
|
HG-GZ-4-4-1
|
240-360BPH
|
Isobaric filling
|
SUS304
|
1550*550*1750mm
|
|
HG-GZ-6-6-1
|
500-800BPH
|
Isobaric filling
|
SUS304
|
1520*1125*2350mm
|
|
HG-GZ-8-8-3
|
800-1000BPH
|
Isobaric filling
|
SUS304
|
1850*1600*2500mm
|
|
HG-GZ-16-16-6
|
2000BPH
|
Isobaric filling
|
SUS304
|
2300*1900*2500mm
|
|
HG-GZ-40-40-10
|
8000-10000BPH
|
Isobaric filling
|
SUS304
|
4200*3000*2700mm
|
1.Q:Does your company have foreign installation experience?
A: Yes, our company has installation experience in USA, Canada, Europe, Australia, Malaysia, Myanmar, South Africa etc.
2.Q: Do you have a professional engineer or after-sales team in our country?
A: Yes, our equipment is sold to 150 countries and areas and we have our local after-sales service personnel in Europe, America and Asia.
3.Q:How can you guarantee the delivery date of the equipment after we place the order?
A: The delivery time can be ensured through Alibaba Credit Insurance orders.
4.Q:What payment methods are supported?
A：T/T, L/C, Credit Card, VISA, Apple device, Western Union.
5. Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries. 1 Year warranty for filling machine.
6.Q: How about the installation and training?
A: We can supply the installation and training. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
7.Q: Can I be your company's sales agent?
A: Yes, it’s our pleasure. We very much welcome you to join us. Please contact us to discuss specific details.
8.
The price does not include electrical appliances, etc.
