- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Shengcheng
-
Model Number:
-
SC-358
-
Product name:
-
clearvu fencing
-
Wire diameter:
-
4.0mm
-
Aperture:
-
12.7 x 76.2 mm
-
Height:
-
1000-2500mm
-
Post distance:
-
2000mm, 2500mm, 3000mm
-
Post type:
-
Square Shape; Y shape
-
Surface treatment:
-
hot dipped galvanized; powder coated, PVC coating
-
Material:
-
low carbon steel
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, ECO FRIENDLY, Pressure Treated Timbers, Renewable Sources, Rodent Proof, Rot Proof, Waterproof
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shengcheng
-
Model Number:
-
SC-358
-
Product name:
-
clearvu fencing
-
Wire diameter:
-
4.0mm
-
Aperture:
-
12.7 x 76.2 mm
-
Height:
-
1000-2500mm
-
Post distance:
-
2000mm, 2500mm, 3000mm
-
Post type:
-
Square Shape; Y shape
-
Surface treatment:
-
hot dipped galvanized; powder coated, PVC coating
-
Material:
-
low carbon steel

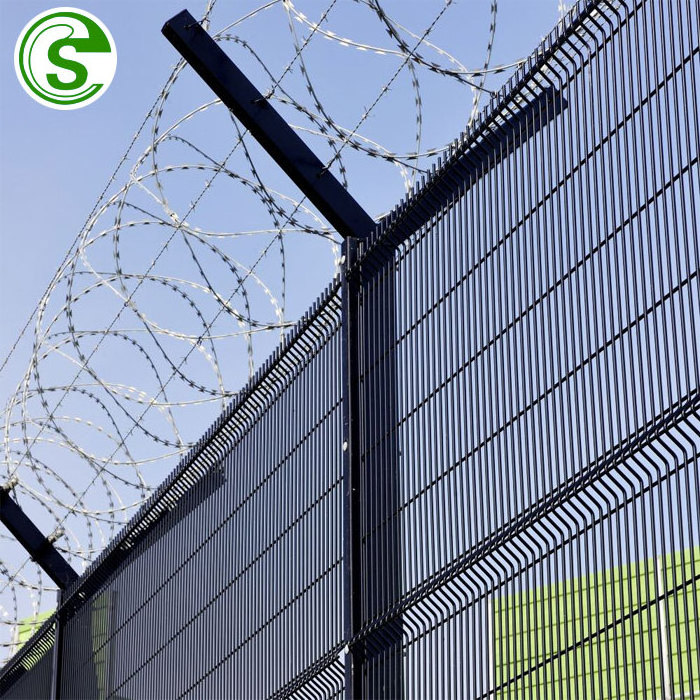

Vandalism resistance anti-climb 358 security fence
clearvu fencing price per meter Gauteng
Clearvu fenceing are extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools. Clearvu fenceing are recognized as one of the most difficult to break through the barrier, because it is difficult to climb. It is called security fencing and high- strength fencing. Clearvu fencing panel can be bent in part to enhance the aesthetic effect.
Clearvu fencing specification:
Panels
The panels are 2515mm wide and heights range from 900 to 3000mm.
Mesh sizes are 76.2 x 12.7mm, and manufactured from 4mm wires.
Weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m²).
Featuring a toe and finger proof mesh aperture, this system combines an anticlimb and anticut fence with excellent through visibility and resistance to vandalism.
Extra length panels can be supplied for burying 300mm below ground to prevent burrowing.
Post
Post thickness:1.2mm; 1.5mm; 2.0mm; 2.5mm
Coating
Panels are manufactured from pre-galvanized wires.
An adhesion coating is applied to allow perfect adhesion with the polyester coating (min. 100 micron).
Posts are polyester coated with a galvanized substrate in accordance with Euro norm 10147.
Colours
Standard colours are Green RAL6005 and Black RAL9005.
Other colours are available on request.
|
Flat mesh panel
|
Height(m)
|
2.03,2.23,2.43
|
|
|
|
Width(m)
|
2.5 or 3.0
|
|
|
|
Hole opening(mm)
|
12.7 x 76.2
|
|
|
|
Wire diameter(mm)
|
4
|
|
|
|
Material
|
low carbon steel wire, galvanized wire
|
|
|
|
Curve quantity
|
normal 2 height:3-4
|
|
|
V type mesh panel
|
Height(m)
|
0.5
|
|
|
|
Length(m)
|
2.3 or 3
|
|
|
Post type with V arm
|
Square post(mm)
|
60*60*2, 60*60*3
|
|
|
|
Rectangular post(mm)
|
60*80*3
|
|
|
|
Length(m)
|
normal 2.8-3
|
|
|
Material
|
Low carbon steel; Galvanized steel
|
|
|
|
Surface treatment
|
Hot dipped galvanized ; Powder coating; PVC coated
|
|
|
|
Clamps
|
Steel or plastic
|
|
|
|
Fittings selection
|
Barbe wire ; Razor barbe wire
|
|
|
It supply more security when the Clearvu fencing add the barbe wire or razor barbe wire.
Clearvu fencing benefits:
Effective Deterrence
The DutyGuard security fence system is designed to present a strong barrier against attack, featuring heavy welded wire panels that deters vandalism and break-ins, while offering critical visibility.
Anti-Cut & Anti-Climb
DutyGuard security mesh protects against both cutting and climbing, with heavy gauge mesh and small mesh openings that resist common cutting tools and hand or foot holds.
Long Service Life
High quality galvanized steel and aluminum components provide for a long service life. This system is also available with a super-durable, Architectural Grade Powder Coating.
Superior Coating
DutyGuard is available with Betafence USA’s exclusive super-durable powder coating, protecting the fence and gates from weather and U.V. aging. This ensures the barrier will retain its appearance and structural integrity for many years, with a minimum of upkeep or maintenance.
Clearvu fencing application:
Bridge anti-climb guarding & guard safety screening
Sub-station Security Fencing
Psychiatric hospital security fencing
Factory Machine guards
Walkway security fencing
Airport security fencing
358 wire mesh fence gates
Shipping Port Security fencing
Electrical sub-station fencing
Water Treatment works
Gas pipelines Security Fence
High security window grilles
Balustrades Security Fence
Packing details:
1>There is rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels
2>There is 4 metal corners to keep the pallet more strong.
3>There is metal plate under the plastic bandage to reduce the apressure of fence panels
4>There is wooden plate at the top of fence panel which can protect the fence panels from being crushed by other pallets.
Delivery date:
About 2 weeks as receive the deposit.
1) Customer Service will 24 hours online.
2) Any inquiries about guardrail will be replied within 12 hours.
3) Professional manufacture and reputation are cooperation basic.
4) Steady quality, reasonable and competitive price.
5) After-sale service.
6) OEM/ODM available.
We Promise
1. 15 - 20 days production lead time after receive the deposit payment.
2. We will choose high quality and low price of the shipping company.
3. Loading the goods, we will track every program, to ensure product safety, the fastest time to arrive to the designated ports.
4. Our factory will provide complete installation accessories.
