Quick Details
-
Table Travel (Y) (mm):
-
800
-
Dimension(L*W*H):
-
4320X3250x2290mm
-
Weight (T):
-
13 T
-
Range of Spindle Speed(r.p.m):
-
60 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
5
-
Max. Table Load(kg):
-
500 kg
-
Feed Speed(mm/min):
-
2.5 - 10000 mm/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
C&J
-
Voltage:
-
220v,380v, 440v
-
Product name:
-
3-axis Vertical Cnc Machining Center
-
Machine Type:
-
VMC CNC Milling Machine
-
Keywords:
-
Vmc Machine Center
-
Color:
-
Custom-made
-
Application:
-
General Machinery Processing
Quick Details
-
Table Size (mm):
-
1600x800mm
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
1500
-
Table Travel (Y) (mm):
-
800
-
Dimension(L*W*H):
-
4320X3250x2290mm
-
Weight (T):
-
13 T
-
Range of Spindle Speed(r.p.m):
-
60 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
5
-
Max. Table Load(kg):
-
500 kg
-
Feed Speed(mm/min):
-
2.5 - 10000 mm/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
C&J
-
Voltage:
-
220v,380v, 440v
-
Product name:
-
3-axis Vertical Cnc Machining Center
-
Machine Type:
-
VMC CNC Milling Machine
-
Keywords:
-
Vmc Machine Center
-
Color:
-
Custom-made
-
Application:
-
General Machinery Processing

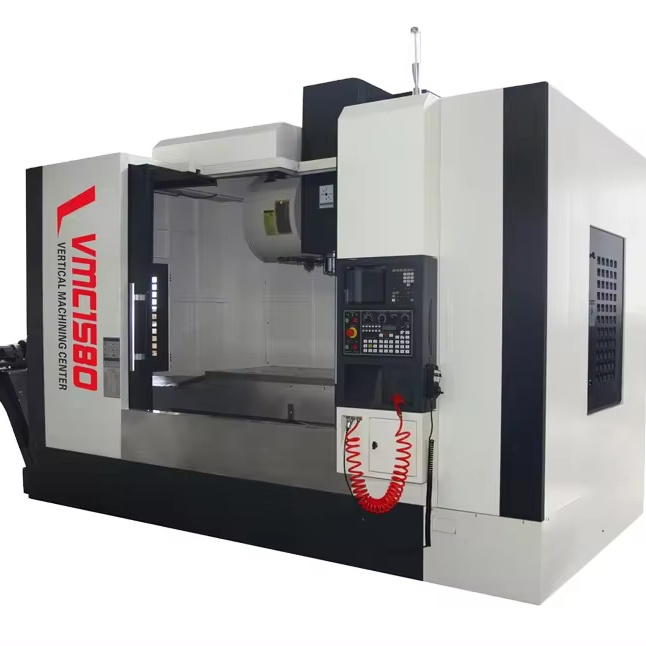

CNC vertical type 3 axis universal milling machine China price for VMC1580
Table Size 1600×800mm
Table Travel 1500×800×700mm
Spindle Speed 10000prm
Standard devices:
FANUC 0i MF(5) CNC controller
FANUC servo motors for X/Y/Z and spindle
Taiwan BT40 spindle
24 ATC Arm type
NSK spindle and ball screw bearings
Taiwan HIWIN/PMI roller type Linear guide of X,Y,Z axis(X:35mm,Z/Y:45mm)
Taiwan HIWIN/PMI ball screw of X,Y,Z axis(φ40mm)
German R+W couplings
Taiwan pneumatic components
Air condition
LED working lamp
Operational manual
Spindle center cooling
Optional:
FANUC 0i MF(1) CNC controller & FANUC servo motors for X/Y/Z and spindle:
Chip conveyor system:
Auto door:
CE (Interlock door, Alarm light, Cabinet braker):
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas
