Quick Details
-
Brand Name:
-
ZHONGNUO
-
Voltage:
-
220v/380v/ or as the clients' request
-
Dimension(L*W*H):
-
1350*1350*1100mm
-
Weight:
-
360 KG
-
Product name:
-
Vibrating Sifter Machine Rotary Vibrating Pollen Sifter Sieve Screen
-
Keyword:
-
Vibrating Sifter Machine Rotary Vibrating Pollen Sifter Sieve Screen
-
Material:
-
Carbon Steel/ Stainless Steel 304/316L
-
Function:
-
Screening\separation\sorting\sieving\Grading
-
Usage:
-
Fine Powder Particles Screening
-
Layer(s):
-
1-3 Layers
-
Diameter:
-
400-2000mm
-
Mesh size:
-
2-500mesh
-
Cleaning system:
-
Bouncing Ball Cleaning System
-
Motor:
-
220V 50HZ/3Phase
Quick Details
-
Type:
-
Circular
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZHONGNUO
-
Voltage:
-
220v/380v/ or as the clients' request
-
Dimension(L*W*H):
-
1350*1350*1100mm
-
Weight:
-
360 KG
-
Product name:
-
Vibrating Sifter Machine Rotary Vibrating Pollen Sifter Sieve Screen
-
Keyword:
-
Vibrating Sifter Machine Rotary Vibrating Pollen Sifter Sieve Screen
-
Material:
-
Carbon Steel/ Stainless Steel 304/316L
-
Function:
-
Screening\separation\sorting\sieving\Grading
-
Usage:
-
Fine Powder Particles Screening
-
Layer(s):
-
1-3 Layers
-
Diameter:
-
400-2000mm
-
Mesh size:
-
2-500mesh
-
Cleaning system:
-
Bouncing Ball Cleaning System
-
Motor:
-
220V 50HZ/3Phase

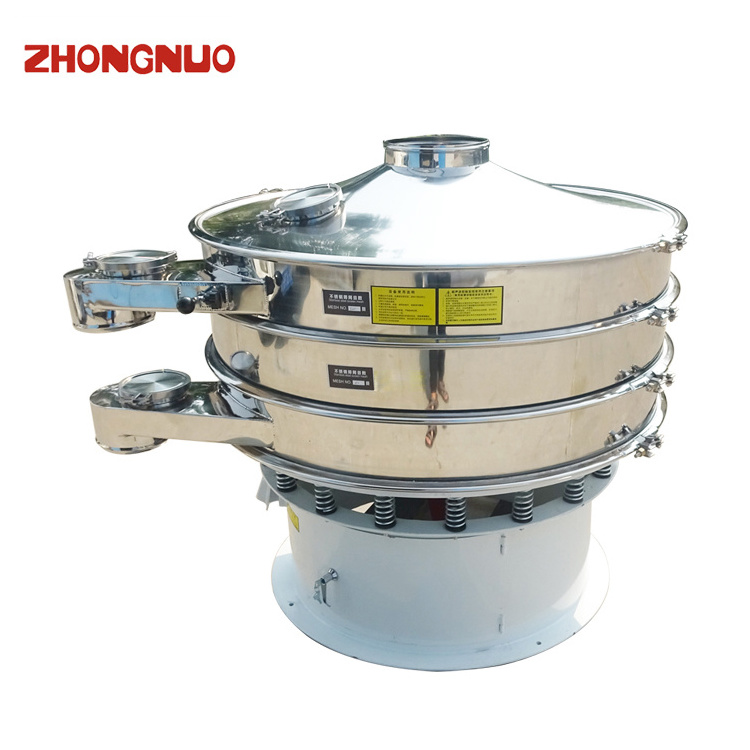

Vibrating Sifter Machine Rotary Vibrating Pollen Sifter Sieve Screen
Product Description
Vibrating Sifter Machine Rotary Vibrating Pollen Sifter Sieve Screen
is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.
Machine Structure
Details Images
Working Principle
Vibrating Sifter Machine Rotary Vibrating Pollen Sifter Sieve Screen
can sieving fine powder, filtrate the liquid and removing the impurity from the granules.
Specification
|
Model
|
Effective diameter
(mm)
|
Power
(kw)
|
Effective sieving area (m2)
|
Layers
|
Dimension
(mm)
|
|
ZN-400mm
|
Dia. 320mm
|
0.18kw
|
0.0804
|
1-3
|
580*580*560 (1 layer)
580*580*560 (2 layers)
580*580*560 (3 layers)
|
|
ZN-600mm
|
Dia. 550mm
|
0.55kw
|
0.2124
|
1-3
|
800*800*680 (1 layer)
800*800*780 (2 layers)
800*800*880 (3 layers)
|
|
ZN-800mm
|
Dia. 750mm
|
0.75kw
|
0.4072
|
1-3
|
900*900*780 (1 layer)
900*900*1030 (2 layers)
900*900*1080 (3 layers)
|
|
ZN-1000mm
|
Dia. 950mm
|
1.1kw
|
0.6221
|
1-3
|
1160*1160*880 (1 layer)
1160*1160*1030 (2 layers)
1160*1160*1180 (3 layers)
|
|
ZN-1200mm
|
Dia. 1150mm
|
1.1kw
|
0.9331
|
1-3
|
1360*1360*980 (1 layer)
1360*1360*1160 (2 layers)
1360*1360*1360 (3 layers)
|
|
ZN-1500mm
|
Dia. 1450mm
|
2.2kw
|
1.5175
|
1-3
|
1850*1850*1130 (1 layer)
1850*1850*1330 (2 layers)
1850*1850*1550 (3 layers)
|
|
ZN-1800mm
|
Dia. 1750mm
|
2.2kw
|
2.2432
|
1-3
|
2150*2150*1360 (1 layer)
2150*2150*1460 (2 layers)
2150*2150*1560 (3 layers)
|
|
ZN-2000mm
|
Dia. 1950mm
|
2.2kw
|
2.7922
|
1-3
|
2450*2450*1390 (1 layer)
2450*2450*1490 (2 layers)
2450*2450*1590 (3 layers)
|
Packing & Delivery
Packing:
We used the standard export wooden case package.
Delivery: Shipping by sea, air and railway transport, also we can shipping by courier for the goods of small volume and weight.
Delivery: Shipping by sea, air and railway transport, also we can shipping by courier for the goods of small volume and weight.
FAQ
Q:How to choose the suitable machine?
A:Please tell us the below information and we can choose the suitable model:
1. Name and
feature of the raw material?
feature of the raw material?
2. Production capacity: kg /h, L/h?
3. Purpose of using: screening, filtration, grading or get rid of
impurity?
impurity?
4. The raw material size: (mesh or mm)?
5. How many final materials you want, or how many layer you need?
6. Local power supply (voltage and frequency)
Note: You had better send us the relevant pictures about the details.
Q:Is it support the special requirement available?
A:Yes, the equipment could be designed according to customer's using aim or special requirements.
Q: How long will my order take?
A: Normal delivery is about 15 working days. Ending delivery schedule depends on the quantity and items you ordered.
