Packing Details:
10pcs/ anti-static box.
Shipping Methods:
1. Samples and Small quantity order FedEx/DHL/UPS/TNT ,Door to Door.
2. Batch goods :By Air, by Sea or by Rail.
3. FCL: Airport/Seaport/Railway Station receiving.
4. Lead Time: 1-5 working days for samples; 5-10 working days for mass.
Precautions:
1. Storage in anti-static box.
2. When used, please ensure that the voltage is normal and stable.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
GZ-LINK
-
Warranty Time:
-
1 Year, 1 Year
-
Product name:
-
1000M Dule fiber single mode fiber transceiver
-
Wavelength:
-
1310nm
-
Transmission Rate:
-
Self-adaptive 10/100/1000Mbit/s
-
Ethernet interface:
-
1 * RJ45
-
Distance:
-
20km
-
Dimensions:
-
94*70*22mm
-
Net weight:
-
0.14kg
-
Operating Temperature:
-
0 ℃ to +50 ℃
-
Keywords:
-
Giga Media Converter
Quick Details
-
Type:
-
Fiber optic media converter
-
Model Number:
-
G8110GSB-20F-4S
-
Place of Origin:
-
China
-
Brand Name:
-
GZ-LINK
-
Warranty Time:
-
1 Year, 1 Year
-
Product name:
-
1000M Dule fiber single mode fiber transceiver
-
Wavelength:
-
1310nm
-
Transmission Rate:
-
Self-adaptive 10/100/1000Mbit/s
-
Ethernet interface:
-
1 * RJ45
-
Distance:
-
20km
-
Dimensions:
-
94*70*22mm
-
Net weight:
-
0.14kg
-
Operating Temperature:
-
0 ℃ to +50 ℃
-
Keywords:
-
Giga Media Converter
Product Description

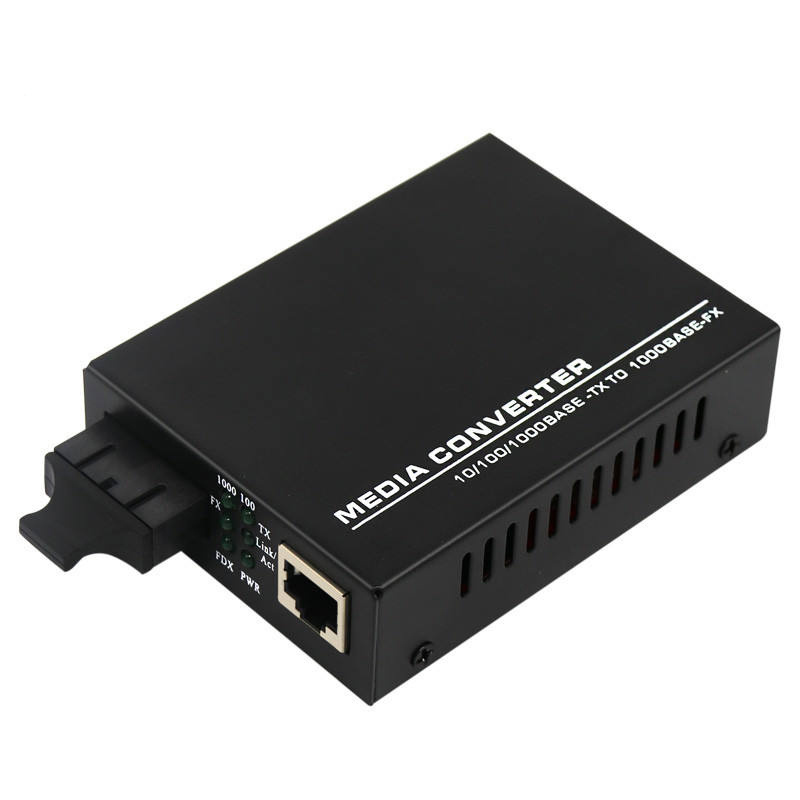

G8110GSB-20F-4S
1. Introduction
10/100/1000M adaptive fast Ethernet optical Media converter is a new product used for optical transmission via high-speed
Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100/1000 Base-TX / 1000Base -Fx
network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users' needs, achieving high-speed
remote interconnection for up to 20 km's relay-free computer data network. With steady and reliable performance, design in
accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a
variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as
telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water
conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent
broadband FTTB/FTTH networks.
2. Features
l In accordance with I EEE802.3 10Base-T , I EEE802.3 u 100Base-T,
I EEE802.3 1000Base-T and I EEE802.3 z 1000Base-FX
l Supported Ports: SC for optical fiber ; RJ45 for twisted pair
l Auto-adaptation rate and full/half-duplex mode supported at twisted pair port
l Auto MDI/MDIX supported without need of cable selection
l Up to 6 LEDs for status indication of optical power port and UTP port
l External and built-in DC power supplies provided
l Up to 1024 MAC addresses supported
l 512 kb data storage integrated, and 802.1X original MAC address authentication supported
Conflicting frames detection in half-duplex and flow control in full duplex supported
10/100/1000M adaptive fast Ethernet optical Media converter is a new product used for optical transmission via high-speed
Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100/1000 Base-TX / 1000Base -Fx
network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users' needs, achieving high-speed
remote interconnection for up to 20 km's relay-free computer data network. With steady and reliable performance, design in
accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a
variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as
telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water
conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent
broadband FTTB/FTTH networks.
2. Features
l In accordance with I EEE802.3 10Base-T , I EEE802.3 u 100Base-T,
I EEE802.3 1000Base-T and I EEE802.3 z 1000Base-FX
l Supported Ports: SC for optical fiber ; RJ45 for twisted pair
l Auto-adaptation rate and full/half-duplex mode supported at twisted pair port
l Auto MDI/MDIX supported without need of cable selection
l Up to 6 LEDs for status indication of optical power port and UTP port
l External and built-in DC power supplies provided
l Up to 1024 MAC addresses supported
l 512 kb data storage integrated, and 802.1X original MAC address authentication supported
Conflicting frames detection in half-duplex and flow control in full duplex supported
|
Product name
|
1000M Dule fiber single mode fiber transceiver
|
|
Type
|
Fiber optic media converter
|
|
Use
|
FTTH
|
|
Warranty Time
|
1 Year
|
|
Wavelength
|
1310nm
|
|
Transmission Rate
|
Self-adaptive 10/100/1000Mbit/s
|
|
Ethernet interface
|
1 * RJ45
|
|
Distance:
|
20km
|
|
Dimensions
|
94*70*22mm
|
|
Net weight
|
0.14kg
|
|
Operating Temperature
|
0 ℃ to +50 ℃
|
|
Power adapter type
|
RoHS/CE/ISO9001
|
|
Max Capacity
|
N/A
|
|
Single-Mode Fiber
|
Yes
|
|
Application
|
FTTH FTTxFTTB Network
|
|
Multi-Mode Fiber
|
N/A
|
|
No. of Fiber
|
1
|
